【成熟方案】转换IC/信号转换芯片NCS8803：HDMI转eDP，带scaler
|
**型号**：NCS8803
**产品特点**：低功耗，抗干扰能力强
**输入**：HDMI
**输出**：EDP

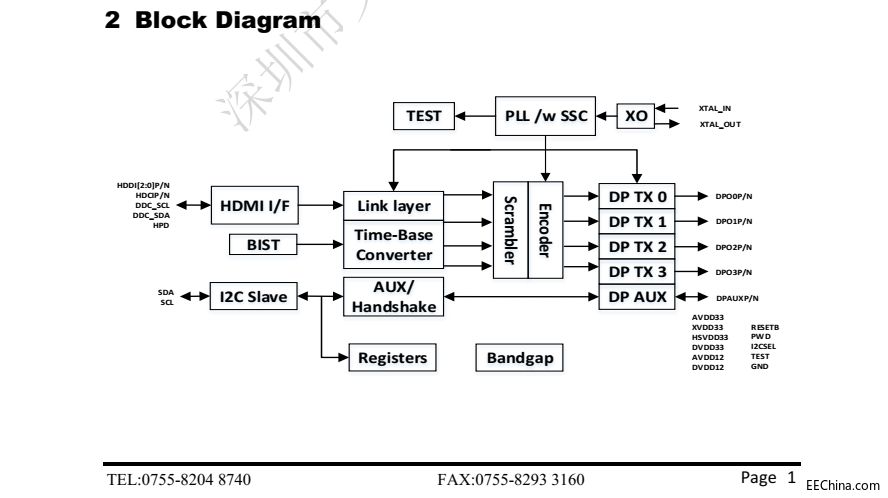

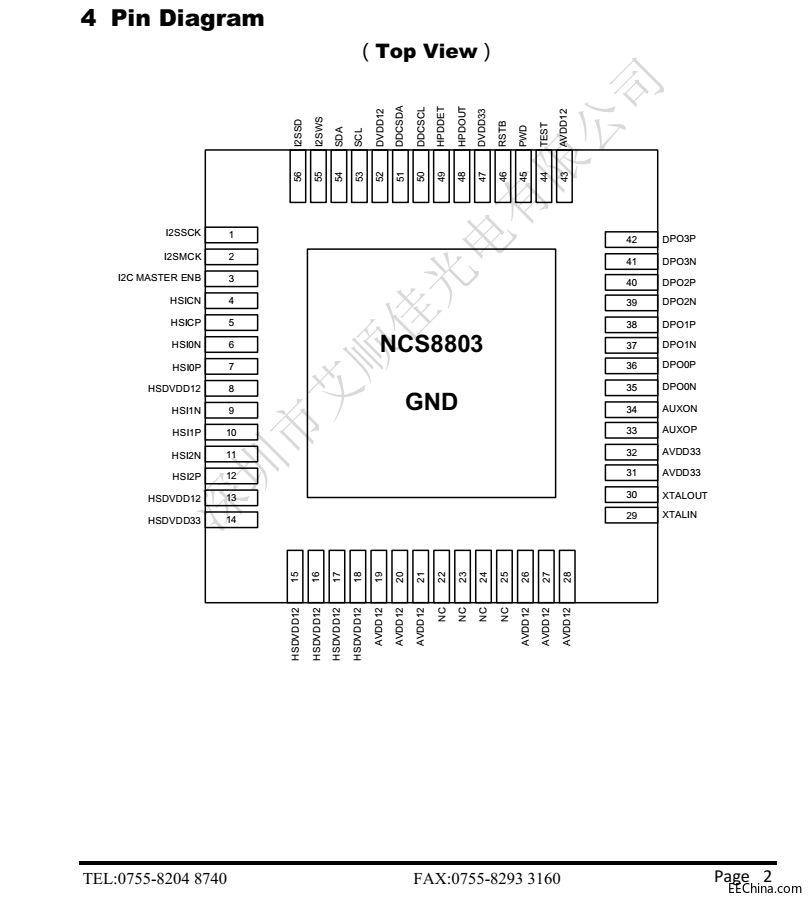

**封装**：QFN-56 (7mm x 7mm)
**最大分辨率**：2560*1600
**产品特性**
**eDP输出**：Embedded-DisplayPort (eDP) Output
1/2/4-lane eDP @ 1.62/2.7Gbps per lane
HD to WQXGA (2560*1600) supported
Up to 6dB pre-emphasis
**HDMI输入**：HDMI Input
HDMI 1.4a supported
RGB444/YCbCr444/YCbCr422 supported
Pixel clock up to 340MHz
2-channel audio supported
Support Hot-Plug Detect
Adaptive equalization
**参考时钟**：Reference Clock
Any freq. between 19MHz and 100MHz
Crystal or single-ended clock input
Built-in 5000ppm SSC generator
**其它**：Misc
I2C for chip configuration
Built-in eDP handshake protocol
I2C-AUX channel for TCON/DPCD/EDID
control
Built-in video test pattern
**功率**：Power
1.2V core supply
2.5V or 3.3V IO supply
Power consumption ~ 150mW
@ 2560*1600*24bit*60Hz
Deep-sleep mode power <1mW
**封装**：Package
QFN-56 (7mm x 7mm) package
RoHS Compliant
Sample available now
