转换IC/转接芯片NCS8828：HDMI-to-YPbPr
|
**型号**：NCS8828
**产品特点**：低功耗，输出支持最大 200MHZ 音频信号
**输入**：HDMI
**输出**：YPbPr

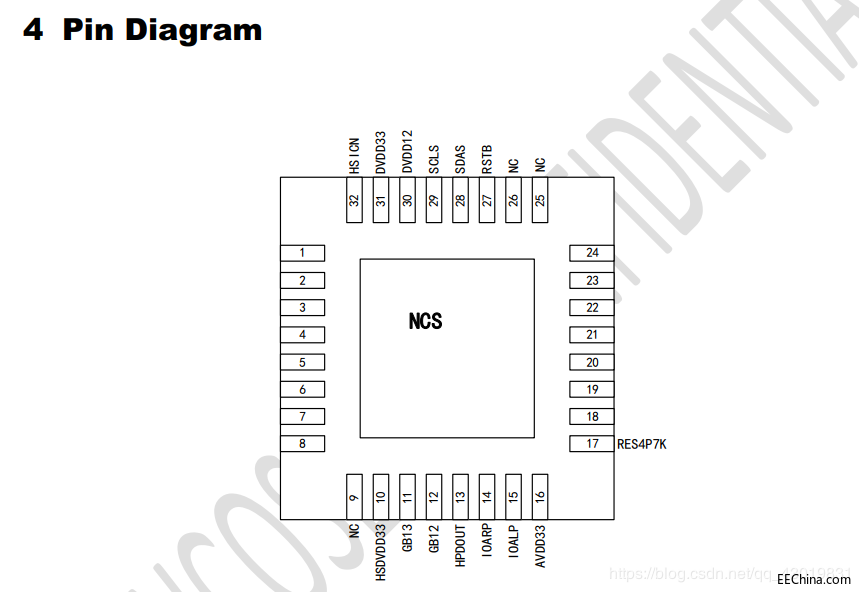

**封装**：QFN-32 (4mm x 4mm) package
**1【特征】** Features
**YPbPr输出**：YPbPr Output
Up to 1920x1200@60Hz supported
2-channel analog audio supported
**HDMI输入**：HDMI Input
HDMI 1.4a supported
RGB444/YCbCr444/YCbCr422 supported
Pixel clock up to 166MHz
2-channel audio supported
Support Hot-Plug Detect
Adaptive equalization
**参考时钟**：Clock
On-chip reference clock
**其它**：Misc
On-chip MCU
IIC slave interface
On-chip 5V to 1.2V regulator
Built-in video test pattern
**功率**：Power
On-chip 5V or 1.2V core supply
3.3V IO supply
Deep-sleep mode power <1mW
@1080P*60Hz 5V@~178mA
@720P*60Hz 5V@~150mA
**封装**：Package
QFN-32 (4mm x 4mm) package
RoHS Compliant
