转接/转换芯片NCS8827 IC：HDMI to CVBS
|
**型号**：NCS8827
**产品特点**：低功耗，输出支持最大 200MHZ 音频信号
**输入**：HDMI
**输出**：CVBS
**封装**：QFN-32 (4mm x 4mm) package

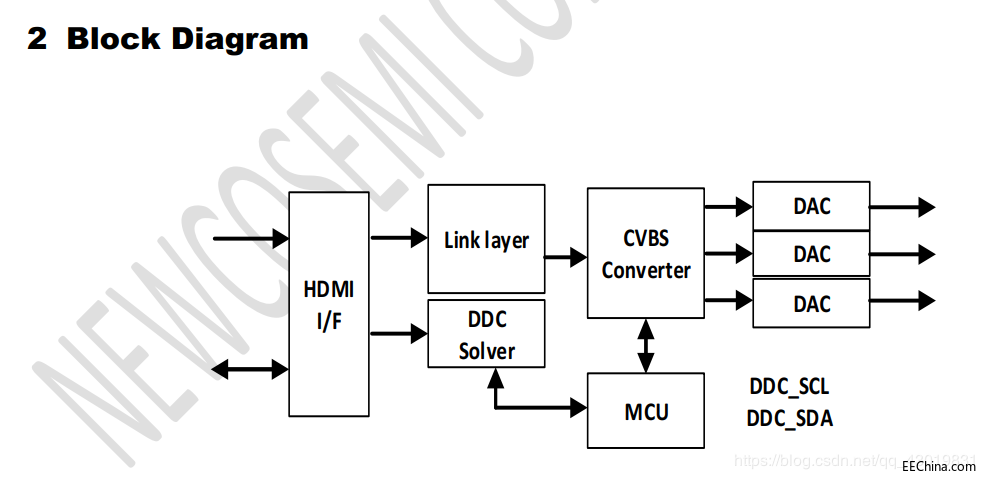

**方案说明**：输入HDMI信号通过NCS8827输出CVBS信号
**1【特征】** **Features**
**CVBS输出**：CVBS Output
Support output format of PAL or NTSC
**HDMI输入**：HDMI Input
Support HDMI 1.4
RGB444/YCbCr444/YCbCr422 supported
2-channel audio supported
Support Hot-Plug Detect
HDMI DDC interface
Adaptive equalization
**参考时钟**：Clock
On-chip reference clock
**其它**：Misc
On-chip MCU
IIC slave interface
On-chip 5V to 1.2V regulator
Built-in video test pattern
**功率**：Power
On-chip 5V to 1.2V core supply
3.3V IO supply
Power consumption ~ 150mA
Deep-sleep mode power <1mW
**封装**：Package
QFN-32 (4mm x 4mm) package
RoHS Compliant
