【成熟方案】转换IC/信号转换芯片NCS8805：RGB/LVDS-to-eDP Converter 带Scaler
|
**型号**：NCS8805
**产品特点**：低功耗，缩放效果好
**输入**：RGB/LVDS
**输出**：EDP

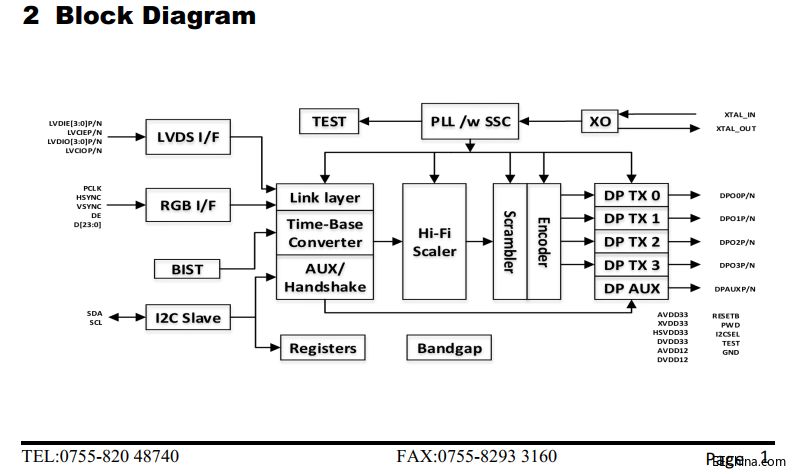

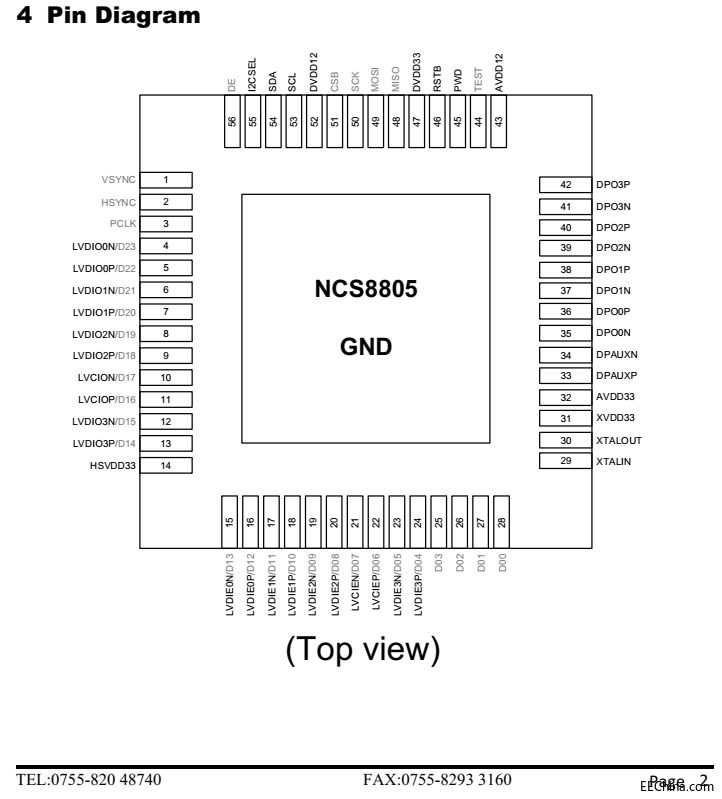

**封装**：QFN-56 (7mm x 7mm)
**最大分辨率**：2560*1600
**eDP输出**：Embedded-DisplayPort (eDP) Output
1/2/4-lane eDP @ 1.62/2.7Gbps per lane
HD to WQXGA (2560*1600) supported
Up to 6dB pre-emphasis
**RGB输入**：RGB Input
18/24bit RGB Interface
Pixel clock up to 270MHz
SDR/DDR supported
Pin order reversal supported
**LVDS输入**：LVDS Input
Single/dual-channel 6/8bit LVDS interface
400Mbps to 1Gbps per data pair
Built-in termination
Channel and polarity swap supported
Scaler
Hi-Fidelity scaler
Fractional scaling ratio from 2:1 to 1:2
**参考时钟**：Reference Clock
Any freq. between 19MHz and 100MHz
Crystal or single-ended clock input
Built-in 5000ppm SSC generator
**其它**：Misc
I2C for chip configuration
Built-in eDP handshake protocol
I2C-AUX channel for TCON/DPCD/EDID
control
Built-in video test pattern
**功率**：Power
1.2V core supply
2.5V or 3.3V IO supply
RGB IO can go down to 1.8V
Deep-sleep mode power <5mW
~150mW @2048*1536 w/o scaling
~300mW @2048*1536 w/ scaling
**封装**：Package
QFN-56 (7mm x 7mm) package
RoHS Compliant
Sample available now
