【资料】转换IC/信号转换芯片NCS8801S：RGB/LVDS-to-eDP
|
号**：NCS8801S
**产品特点**：低功耗，抗干扰能力强
**输入**：Single/Dual link LVDS/RGB
**输出**：EDP

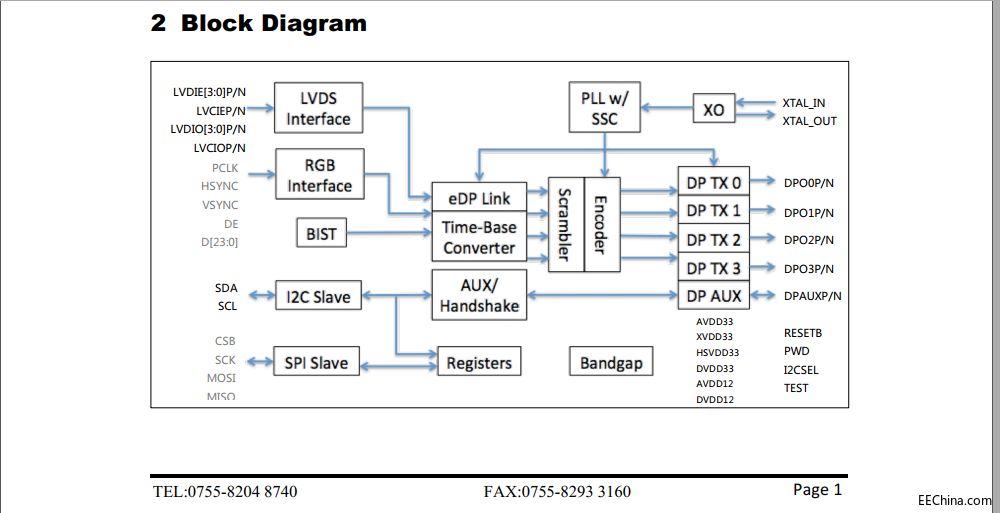

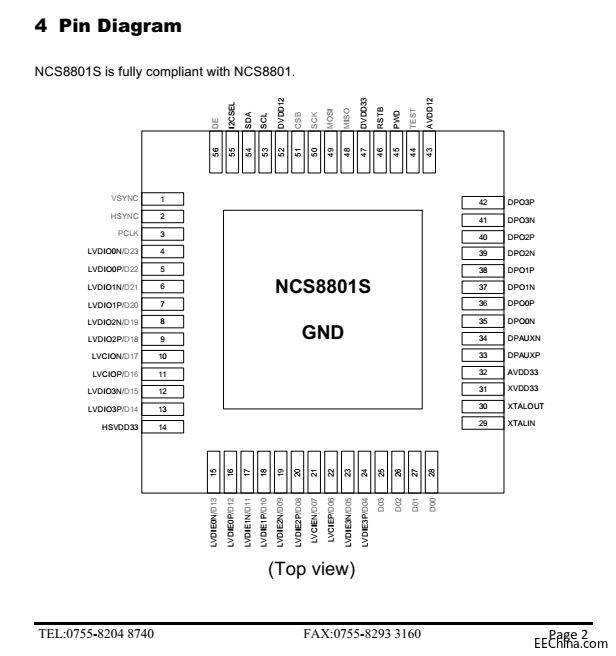

**封装**：QFN56 (7mm x 7mm)
**最大分辨率**：2560*1600
eDP输出：**eDP Output**：
1/2/4-lane eDP @ 1.62/2.7Gbps per lane
FHD to WQXGA (2560*1600) supported
RGB输入：**RGB Input**
18/24bit RGB Interface
Pixel clock up to 270MHz
Pin order reversal supported
LVDS输入：**LVDS Input**
Single/Dual-channel 6/8bit LVDS (Sync) interface
400Mbps to 1Gbps per data pair
Channel and polarity swap supported
参考时钟：**Reference Clock**
Any freq. between 19MHz and 100MHz
Crystal or single-ended clock input
Built-in 5000ppm SSC generator
其它：**Misc**
I2C/SPI for chip configuration
Built-in eDP handshake protocol
I2C-AUX channel for TCON/DPCD/EDID
control
Built-in video test pattern
功率：**Power**
1.2V core supply
2.5V or 3.3V IO supply
RGB IO can go down to 1.8V
Power consumption ~ 150mW
@ 2048*1536*24bit*60Hz, LVDS mode
Deep-sleep mode power <1mW
封装**Package**
QFN-56 (7mm x 7mm) package
RoHS Compliant
