SL9486A 100V耐压 3A电流恒压电源芯片 替SY8513

[复制链接]
发表于 2023-8-18 14:09:09 | 显示全部楼层 |阅读模式
关键词: 降压恒压 , DCDC , 电源芯片
DESCRIPTION
  The SL9486A is a high-voltage, step-down, switching
regulator that delivers up to 2A of continuous current to the
load. It integrates a high-side, high-voltage, power
MOSFET with a current limit of 3.5A, typically. The wide 5V
to 100V input range accommodates a variety of step-down
applications, making it ideal for automotive, industry, and
lighting applications. Hysteretic voltage-mode control is
employed for very fast response.
  The switching frequency can be up to 1MHz, allowing for
small component size. Thermal shutdown and short-circuit
protection (SCP) provide reliable and fault-tolerant
operations. A 200μA quiescent current allows the SL9486A
to be used in battery-powered applications.
  The SL9486A is available in ESOP8 package.


FEATURES
  ・Wide 5V to 100V Input Range
  ・3.5A Typical Peak Switching Current Limit
  ・Hysteretic Control: No Compensation
  ・Up to 1MHz Switching Frequency
  ・WM Dimming Control Input for LED Application
  ・Short-Circuit Protection (SCP) with Integrated
High-Side MOSFET
  ・200μA Quiescent Current
  ・Thermal Shutdown
  ・ackages: Pb-free Packages, ESOP8


APPLICATIONS
  ・Scooters, E-Bike Control Power Supplies
  ・Solar Energy Systems
  ・Automotive System Power
  ・Industrial Power Supplies
・High-Power LED Drivers

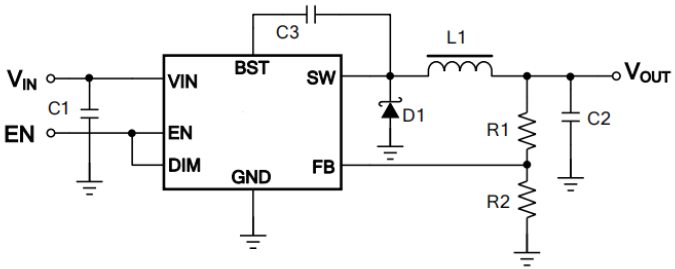

TYPICAL APPLICATION
