dc-dc应用于高耐压72V转5V 9V 12V/1A~2A电源驱动芯片

小郑

DESCRIPTION
  The SL9486A is a high-voltage, step-down, switching
regulator that delivers up to 2A of continuous current to the
load. It integrates a high-side, high-voltage, power
MOSFET with a current limit of 3.5A, typically. The wide 5V
to 100V input range accommodates a variety of step-down
applications, making it ideal for automotive, industry, and
lighting applications. Hysteretic voltage-mode control is
employed for very fast response.
  The switching frequency can be up to 1MHz, allowing for
small component size. Thermal shutdown and short-circuit
protection (SCP) provide reliable and fault-tolerant
operations. A 200μA quiescent current allows the SL9486A
to be used in battery-powered applications.
  The SL9486A is available in ESOP8 package.

FEATURES
   ・Wide 5V to 100V Input Range
   ・3.5A Typical Peak Switching Current Limit
   ・Hysteretic Control: No Compensation
   ・Up to 1MHz Switching Frequency
   ・WM Dimming Control Input for LED Application
   ・Short-Circuit Protection (SCP) with Integrated
High-Side MOSFET
   ・200μA Quiescent Current
   ・Thermal Shutdown
  ・ackages: Pb-free Packages, ESOP8

APPLICATIONS
   ・Scooters, E-Bike Control Power Supplies
   ・Solar Energy Systems
   ・Automotive System Power
   ・Industrial Power Supplies
   ・High-Power LED Drivers

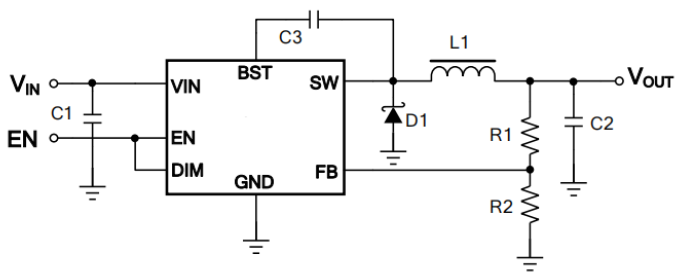

TYPICAL APPLICATION




适用型号：SL3036、SL3036H、SL3038、SL9486A、SL3041
