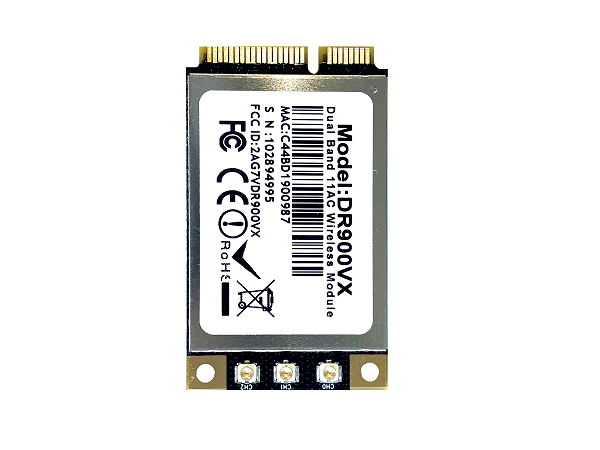

QCA9880/QCA9882 802.11ac Dual band 3x3 2.4G/5G FCC/CE/IC
Qualcomm-Atheros QCA9880 chipset
2.4GHz max 26dBm & 5GHz max 25dBm output power
IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
3x3 MIMO Technology, up to 1.3Gbps
Mini PCI Express edge connector
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio
Combining (MRC), Space Time Block Code (STBC)
Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards
Supports Dynamic Frequency Selection (DFS)
FCC,CE and IC Certification
Symbol
| Parameter
| Chipset
| QCA9880
| Host Interface
| Mini PCI Express 1.1 Standard
| Antenna Connector
| 3 x UF.L
| Frequency Range
| 2.4GHz: 2.412GHz to 2.472GHz
5GHz: 4.920GHz to 5.825GHz
| Operating Voltage
| 3.3V DC
| Power Consumption
| 5W(Max）
| Modulation Techniques
| OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM
| Environmental Temperature
| Operating: -40°C to 70°C, Storage: -40°C to 90°C
| Environmental Humidity, non-condensing
| Operating: 5% to 95%, Storage: Max. 90%
| ROHS Compliance
| YES
| Dimensions (W×H×D)
| 30.0mm × 50.9mm × 3.2mm
|
Operating Mode | Data Rate | TX Power | Tolerance | 1 Chain | 3 Chains | 2.4 GHz 802.11b | 1Mbps | 20dBm | 25dBm | ±2dB | 2Mbps | 20dBm | 25dBm | ±2dB | 5.5Mbps | 20dBm | 25dBm | ±2dB | 11Mbps | 20dBm | 25dBm | ±2dB | 2.4 GHz 802.11g | 6Mbps | 21dBm | 26dBm | ±2dB | 9Mbps | 21dBm | 26dBm | ±2dB | 12Mbps | 21dBm | 26dBm | ±2dB | 18Mbps | 21dBm | 26dBm | ±2dB | 24Mbps | 21dBm | 26dBm | ±2dB | 36Mbps | 20dBm | 25dBm | ±2dB | 48Mbps | 19dBm | 24dBm | ±2dB | 54Mbps | 19dBm | 24dBm | ±2dB | 2.4 GHz 802.11n HT20 | MCS0 | 21dBm | 26dBm | ±2dB | MCS1 | 21dBm | 26dBm | ±2dB | MCS2 | 21dBm | 26dBm | ±2dB | MCS3 | 20dBm | 25dBm | ±2dB | MCS4 | 20dBm | 25dBm | ±2dB | MCS5 | 20dBm | 25dBm | ±2dB | MCS6 | 19dBm | 24dBm | ±2dB | MCS7 | 18dBm | 23dBm | ±2dB | 2.4 GHz 802.11n HT40 | MCS0 | 21dBm | 26dBm | ±2dB | MCS1 | 21dBm | 26dBm | ±2dB | MCS2 | 21dBm | 26dBm | ±2dB | MCS3 | 20dBm | 25dBm | ±2dB | MCS4 | 20dBm | 25dBm | ±2dB | MCS5 | 20dBm | 25dBm | ±2dB | MCS6 | 19dBm | 24dBm | ±2dB | MCS7 | 18dBm | 23dBm | ±2dB |
Operating Mode | Data Rate | RX Sensitivity | Tolerance | 2.4 GHz 802.11b | 1Mbps | -95dBm | ±2dB | 2Mbps | -94dBm | ±2dB | 5.5Mbps | -92dBm | ±2dB | 11Mbps | -90dBm | ±2dB | 2.4 GHz 802.11g | 6Mbps | -94dBm | ±2dB | 9Mbps | -93dBm | ±2dB | 12Mbps | -92dBm | ±2dB | 18Mbps | -90dBm | ±2dB | 24Mbps | -88dBm | ±2dB | 36Mbps | -85dBm | ±2dB | 48Mbps | -81dBm | ±2dB | 54Mbps | -80dBm | ±2dB | 2.4 GHz 802.11n HT20 | MCS0 | -93dBm | ±2dB | MCS1 | -91dBm | ±2dB | MCS2 | -89dBm | ±2dB | MCS3 | -84dBm | ±2dB | MCS4 | -83dBm | ±2dB | MCS5 | -78dBm | ±2dB | MCS6 | -78dBm | ±2dB | MCS7 | -76dBm | ±2dB | 2.4 GHz 802.11n HT40 | MCS0 | -92dBm | ±2dB | MCS1 | -88dBm | ±2dB | MCS2 | -85dBm | ±2dB | MCS3 | -82dBm | ±2dB | MCS4 | -79dBm | ±2dB | MCS5 | -75dBm | ±2dB | MCS6 | -75dBm | ±2dB | MCS7 | -73dBm | ±2dB |
Operating Mode | Data Rate | TX Power | Tolerance | 1 Chain | 3 Chains | 5 GHz
802.11a | 6Mbps | 20dBm | 25dBm | ±2dB | 9Mbps | 20dBm | 25dBm | ±2dB | 12Mbps | 20dBm | 25dBm | ±2dB | 18Mbps | 20dBm | 25dBm | ±2dB | 24Mbps | 20dBm | 25dBm | ±2dB | 36Mbps | 18dBm | 23dBm | ±2dB | 48Mbps | 16dBm | 21dBm | ±2dB | 54Mbps | 15dBm | 20dBm | ±2dB | 5 GHz
802.11n/ac HT20 | MCS0 | 19dBm | 24dBm | ±2dB | MCS1 | 19dBm | 24dBm | ±2dB | MCS2 | 19dBm | 24dBm | ±2dB | MCS3 | 18dBm | 23dBm | ±2dB | MCS4 | 18dBm | 23dBm | ±2dB | MCS5 | 17dBm | 22dBm | ±2dB | MCS6 | 16dBm | 21dBm | ±2dB | MCS7 | 16dBm | 21dBm | ±2dB | MCS8 | 15dBm | 20dBm | ±2dB | 5 GHz
802.11n/ac HT40 | MCS0 | 18dBm | 23dBm | ±2dB | MCS1 | 18dBm | 23dBm | ±2dB | MCS2 | 18dBm | 23dBm | ±2dB | MCS3 | 17dBm | 22dBm | ±2dB | MCS4 | 17dBm | 22dBm | ±2dB | MCS5 | 16dBm | 21dBm | ±2dB | MCS6 | 16dBm | 21dBm | ±2dB | MCS7 | 16dBm | 21dBm | ±2dB | MCS8 | 15dBm | 20dBm | ±2dB | MCS9 | 15dBm | 20dBm | ±2dB | 5 GHz
802.11n/ac HT80 | MCS0 | 18dBm | 23dBm | ±2dB | MCS1 | 18dBm | 23dBm | ±2dB | MCS2 | 18dBm | 23dBm | ±2dB | MCS3 | 17dBm | 22dBm | ±2dB | MCS4 | 17dBm | 22dBm | ±2dB | MCS5 | 16dBm | 21dBm | ±2dB | MCS6 | 16dBm | 21dBm | ±2dB | MCS7 | 15dBm | 20dBm | ±2dB | MCS8 | 15dBm | 20dBm | ±2dB | MCS9 | 15dBm | 20dBm | ±2dB |
Operating Mode | Data Rate | RX Sensitivity | Tolerance | 5 GHz
802.11a | 6Mbps | -94dBm | ±2dB | 9Mbps | -94dBm | ±2dB | 12Mbps | -92dBm | ±2dB | 18Mbps | -90dBm | ±2dB | 24Mbps | -86dBm | ±2dB | 36Mbps | -84dBm | ±2dB | 48Mbps | -81dBm | ±2dB | 54Mbps | -80dBm | ±2dB | 5 GHz
802.11n/ac HT20 | MCS0 | -93dBm | ±2dB | MCS1 | -90dBm | ±2dB | MCS2 | -87dBm | ±2dB | MCS3 | -83dBm | ±2dB | MCS4 | -80dBm | ±2dB | MCS5 | -77dBm | ±2dB | MCS6 | -74dBm | ±2dB | MCS7 | -73dBm | ±2dB | MCS8 | -71dBm | ±2dB | 5 GHz
802.11n/ac HT40 | MCS0 | -90dBm | ±2dB | MCS1 | -88dBm | ±2dB | MCS2 | -85dBm | ±2dB | MCS3 | -82dBm | ±2dB | MCS4 | -79dBm | ±2dB | MCS5 | -75dBm | ±2dB | MCS6 | -73dBm | ±2dB | MCS7 | -73dBm | ±2dB | MCS8 | -69dBm | ±2dB | MCS9 | -66dBm | ±2dB | 5 GHz
802.11n/ac HT80 | MCS0 | -88dBm | ±2dB | MCS1 | -86dBm | ±2dB | MCS2 | -84dBm | ±2dB | MCS3 | -81dBm | ±2dB | MCS4 | -77dBm | ±2dB | MCS5 | -74dBm | ±2dB | MCS6 | -73dBm | ±2dB | MCS7 | -70dBm | ±2dB | MCS8 | -67dBm | ±2dB | MCS9 | -65dBm | ±2dB |
