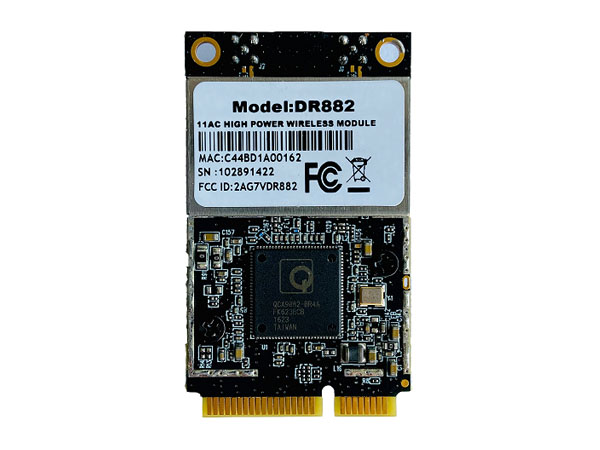

Wallys 2x 2 5G moudle/802.11AC 802.11AN wifi QCA9882 High power Radio card

发布时间:2022-9-14 14:30    发布者:wallyswifi
关键词: 5G moudle , QCA9882 , WIFI , quaclomm
Wallys 2x 2 5G moudle/802.11AC 802.11AN wifi QCA9882  High power Radio card

Featuring with industrial-grade Atheros’s QCA9882 chipset
Integrated with 2x 2 5G high power Radio Card
4.940GHz to 5.825GHz Frequency Range
2 x 5G MMCX Connectors
20MHz/40MHz/80MHz Bandwidth
Support 802. 11AC/AN
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals


    Absolute Maximum Rating

    Parameter
    Rating
    Unit
    Supply Voltage
    3.3V(MINIPCIE)
    V
    Operating Temperature Range
    -40 to +60
    oC
    Storage Temperature Range
    -65 to +105
    oC
    Operating Humidity Range
    5 to +95 (non-condensing)
    %
    Storage Humidity Range
    0 to +90 (non-condensing)
    %

    Hardware Specifications

    Symbol
    Parameter
    CPU
    QCA9882
    Antenna Connector
    2 x 5G MMCX connectors
    ROHS Compliance
    YES
    Dimension
    50mm x 30mm x 16mm

    Radio TX Specifications

    Operating Mode
    Data Rate
    Power
    Tolerance
    1 Chain
    2 Chains
    802.11a
    6 Mbps
    25dBm
    28dbm
    ±2dB
    54 Mbps
    21dBm
    24dbm
    ±2dB
    802.11n HT20
    MCS0, MCS8
    25dBm
    28dbm
    ±2dB
    MCS7, MCS15
    20dBm
    23dbm
    ±2dB
    802.11n HT40
    MCS0, MCS8
    25dBm
    28dbm
    ±2dB
    MCS7, MCS15
    20dBm
    23dbm
    ±2dB
    802.11ac
    MCS0, MCS10,MCS20
    25dBm
    28dbm
    ±2dB
    MCS9,MCS19,MCS29
    17dBm
    20dbm
    ±2dB

    Radio RX Specifications

    Operating Mode
    Data Rate
    Sensitivity
    802.11a
    6 Mbps
    -96dBm
    54 Mbps
    -78dBm
    802.11n HT20
    MCS0, MCS8
    -92dBm
    MCS7, MCS15
    -73dBm
    802.11n HT40
    MCS0, MCS8
    -90dBm
    MCS7, MCS15
    -70dBm

Stable networks guarantee for the ongoing continuity of your video surveillance. Our boards could establish a stable connected wireless environment which is critical for a security surveillance system.
Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We’re a supplier to Facebook.
