Altera Stratix V GX FPGA开发方案

发布时间：2012-5-17 13:43 发布者：1770309616

关键词： ALTERA , FPGA , Stratix

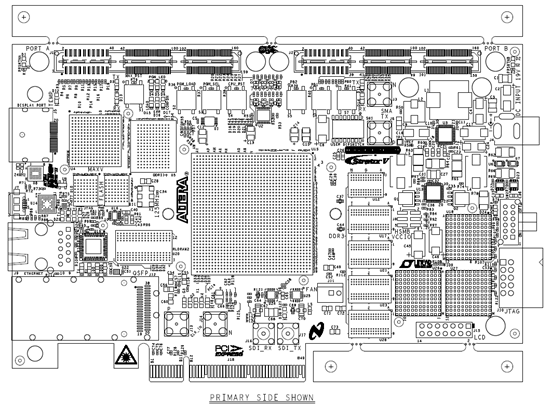

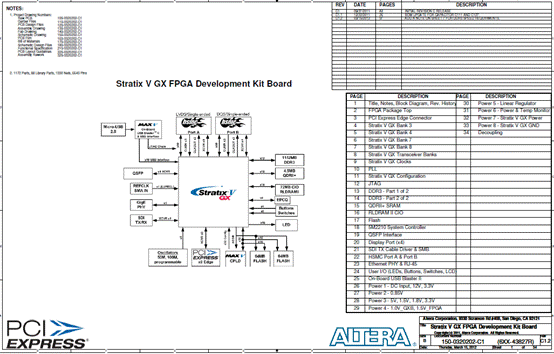

Altera公司的Stratix V FPGA包括GT, GX, GS和E四个系列,采用28nm技术,集成了高达28.05Gbps的收发器和独特的硬件IP区块,适合不同的应用如包括PCI Express® (PCIe®)Gen3在内的宽带应用,40G/100G和更高的数据应用,高性能高精度的DSP应用.本文介绍了Stratix V FPGA主要特性,Stratix V GT, GX和GS 器件框图以及Altera® Stratix® V GX FPGA开发套件主要特性和元件区块,框图,Stratix V GX FPGA开发板主要元件表,电路图和材料清单,PCB布局图.

Altera’s 28-nm Stratix V FPGAs include innovations such as an enhanced core architecture, integrated transceivers up to 28.05 gigabits per second (Gbps), and a unique array of integrated hard intellectual property (IP) blocks. With these innovations, Stratix V FPGAs deliver a new class of application-targeted devices optimized for:

■ Bandwidth-centric applications and protocols, including PCI Express® (PCIe®)Gen3

■ Data-intensive applications for 40G/100G and beyond

■ High-performance, high-precision digital signal processing (DSP) applications

Stratix V devices are available in four variants (GT, GX, GS, and E), each targeted for a different set of applications. For higher volume production, you can prototype with Stratix V FPGAs and use the low-risk, low-cost path to HardCopy® V ASICs.

Stratix V GT devices, with both 28.05-Gbps and 12.5-Gbps transceivers, are optimized for applications that require ultra-high bandwidth and performance in areas such as 40G/100G/400G optical communications systems and optical test systems. 28.05-Gbps and 12.5-Gbps transceivers are also known as GT and GX channels, respectively.

Stratix V GX devices offer up to 66 integrated 14.1-Gbps transceivers supporting backplanes and optical modules. These devices are optimized for high-performance, high-bandwidth applications such as 40G/100G optical transport, packet processing,and traffic management found in wireline, military communications, and network test equipment markets.

Stratix V GS devices have an abundance of variable precision DSP blocks, supporting up to 3,926 18x18 or 1,963 27x27 multipliers. In addition, Stratix V GS devices offer integrated 14.1-Gbps transceivers, which support backplanes and optical modules.

These devices are optimized for transceiver-based DSP-centric applications found in wireline, military, broadcast, and high-performance computing markets. Stratix V E devices offer the highest logic density within the Stratix V family with nearly one million logic elements (LEs) in the largest device. These devices are optimized for applications such as ASIC and system emulation, diagnostic imaging,
and instrumentation.

Stratix V FPGA主要特性:

■ Technology

■ 28-nm TSMC process technology

■ 0.85-V core voltage

■ Low-power serial transceivers

■ 28.05-Gbps transceivers on Stratix V GT devices

■ Electronic dispersion compensation (EDC) for XFP, SFP+, QSFP, CFP optical module support

■ Adaptive linear and decision feedback equalization

■ 600-Megabits per second (Mbps) to 14.1-Gbps backplane capability

■ Transmit pre-emphasis and de-emphasis

■ Dynamic reconfiguration of individual channels

■ On-chip instrumentation (EyeQ non-intrusive data eye monitoring)

■ General-purpose I/Os (GPIOs)

■ 1.4-Gbps LVDS

■ 1,066-MHz external memory interface

■ On-chip termination (OCT)

■ 1.2-V to 3.3-V interfacing for all Stratix V devices

■ Embedded HardCopy Block

■ PCIe Gen3, Gen2, and Gen1 complete protocol stack, x1/x2/x4/x8 end point and root port

■ Embedded transceiver hard IP

■ Interlaken physical coding sublayer (PCS)

■ Gigabit Ethernet (GbE) and XAUI PCS

■ 10G Ethernet PCS

■ Serial RapidIO® (SRIO) PCS

■ Common Public Radio Interface (CPRI) PCS

■ Gigabit Passive Optical Networking (GPON) PCS

■ Power Management

■ Programmable Power Technology

■ Quartus II integrated PowerPlay Power Analysis

■ High-performance core fabric

■ Enhanced ALM with four registers

■ Improved routing architecture reduces congestion and improves compile times

■ Embedded memory blocks

■ M20K: 20-Kbit with hard error correction code (ECC)

■ MLAB: 640-bit

■ Variable precision DSP blocks

■ Up to 500 MHz performance

■ Natively support signal processing with precision ranging from 9x9 up to 54x54

■ New native 27x27 multiply mode

■ 64-bit accumulator and cascade for systolic finite impulse responses (FIRs)

■ Embedded internal coefficient memory

■ Pre-adder/subtractor improves efficiency

■ Increased number of outputs allows more independent multipliers

■ Fractional PLLs

■ Fractional mode with third-order delta-sigma modulation

■ Integer mode

■ Precision clock synthesis, clock delay compensation, and zero delay buffer (ZDB)

■ Clock networks

■ 717-MHz fabric clocking

■ Global, quadrant, and peripheral clock networks

■ Unused clock networks can be powered down to reduce dynamic power

■ Device Configuration

■ Serial and parallel flash interface

■ Enhanced advanced encryption standard (AES) design security features

■ Tamper protection

■ Partial and dynamic reconfiguration

■ Configuration via Protocol (CvP)

■ High-performance packaging

■ Multiple device densities with identical package footprints enables seamless migration between different FPGA densities

■ FBGA packaging with on-package decoupling capacitors

■ Lead and RoHS-compliant lead-free options

■ HardCopy V migration

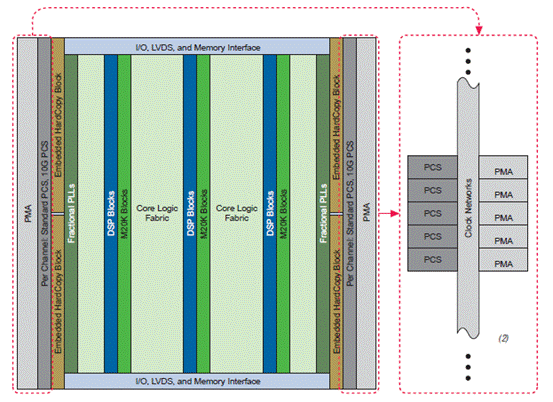

图1.Stratix V GT, GX和GS 器件框图

Altera® Stratix® V GX FPGA开发套件

The Altera® Stratix® V GX FPGA Development Kit is a complete design environment

that includes both the hardware and software you need to develop Stratix V GX FPGA designs. The following list describes what you can accomplish with the kit:

■ Test signal quality of the FPGA transceiver I/Os (up to 12.5 Gbps).

■ Develop and test PCI Express® (PCIe) 2.0 designs.

■ Develop and test memory subsystems consisting of SyncFlash, DDR3, and QDRII+.

■ Develop and test SDI with the embedded 75-ohm 3G SDI transceivers.

■ Develop embedded designs utilizing the Nios® II processor and external memory.

■ Develop and test network designs utilizing Triple Speed Ethernet MegaCore® and external RJ-45 jack.

■ Develop and test optical networking designs using the 10G and 40G Ethernet MAC MegaCores and the QSFP Optical Interface.

■ Take advantage of the modular and scalable design by using the high-speed mezzanine card (HSMC) connectors to interface to over 40 different HSMCs provided by Altera partners, supporting protocols such as Serial RapidIO®, 10 Gigabit Ethernet, SONET, Common Public Radio Interface (CPRI), Open Base Station Architecture Initiative (OBSAI) and others.

■ Measure the FPGA’s power consumption.

■ Control twelve different programmable clock oscillators using the Clock Control GUI.The Stratix V GX FPGA Development Kit includes the following hardware:

■ Stratix V GX FPGA development board—A development platform that allows you to develop and prototype hardware designs running on the Stratix V GX FPGA.

■ HSMC loopback board—A daughtercard that allows for loopback testing all signals on the HSMC interface using the Board Test System.

■ Power supply and cables—The kit includes the following items:

■ Power supply and AC adapters for North America/Japan, Europe, and the United Kingdom

■ Standard USB A to micro-USB cable

■ Ethernet cable

■ 75 Ω SMB video cable

软件包括:

The Quartus II Development Kit Edition (DKE) software includes the following items:

■ Quartus II Software—The Quartus II software, including the Qsys system integration tool, provides a comprehensive environment for network on a chip (NoC) design. The Quartus II software integrates into nearly any design environment and provides interfaces to industry-standard EDA tools.

■ MegaCore® IP Library—A library that contains Altera IP MegaCore functions. You can evaluate MegaCore functions by using the OpenCore Plus feature to do the following:

■ Simulate behavior of a MegaCore function within your system.

■ Verify functionality of your design, and quickly and easily evaluate its size and speed.

■ Generate time-limited device programming files for designs that include MegaCore functions.

■ Program a device and verify your design in hardware

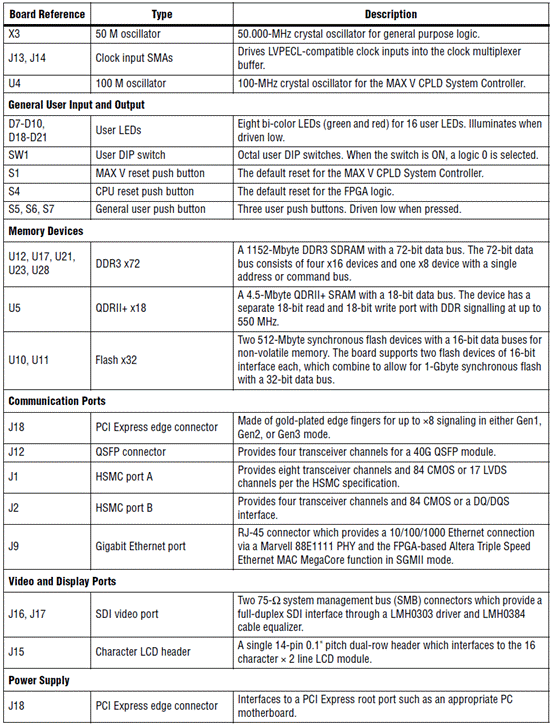

Altera® Stratix® V GX FPGA开发板包括以下主要的元件区块:

■ Altera Stratix V FPGA (5SGXEA7K2F40C2) in the 1517-pin FineLine BGA Package

■ 622,000 Les

■ 358,500 adaptive logic modules (ALMs)

■ 50-Mbits embedded memory

■ 36 transceivers (12.5 Gbps)

■ 174 full-duplex LVDS channels

■ 28 phase locked loops (PLLs)

■ 512 18x18-bit multipliers

■ 850-mV core voltage

■ 696 user I/Os

■ 2 PCI Express hard IP blocks

■ MAX® V CPLD (5M2210ZF256C4) System Controller in the 256-pin FineLine BGA Package

■ 2,210 Les

■ 203 user I/Os

■ 1.8-V core voltage

■ FPGA Configuration Circuitry

■ MAX II CPLD (EPM570GM100) and Flash Fast Passive Parallel (FPP) configuration

■ On-Board USB-BlasterTM II for use with the Quartus® II Programmer, Nios® II Software Build Tools, and System Console.

■ On-Board Clocking Circuitry

■ 50-MHz, 100-MHz, 125-MHz, and programmable oscillators

■ SMA connector for clock input (LVPECL)

■ Memory devices

■ 1152-Mbyte DDR3 SDRAM with a 72-bit data bus

■ 4.5-Mbyte QDRII+ SRAM with a 18-bit data bus (footprint is compatible for 9-Mbyte QDRII with a 18-bit data bus)

■ Two 512-Mbyte synchronous flash with a 16-bit data bus

■ Communication Ports

■ PCI Express (PCIe) x8 edge connector

■ Two HSMC ports

■ One universal HSMC port A

■ One DQS-type HSMC port B

■ SMB for SDI input and output

■ QSFP

■ USB 2.0

■ Gigabit Ethernet

■ LCD header

■ General User I/O

■ 16 user LEDs

■ Two-line character LCD display

■ Six configuration status LEDs

■ Five PCI Express LEDs

■ Four Ethernet LEDs

■ Push Button and DIP Switches

■ One CPU reset push button

■ Three general user push buttons

■ Two configuration push buttons

■ Eight user DIP switches

■ Four MAX V control DIP switches

■ Power

■ 19-V (laptop) DC input

■ PCI Express edge connector power

■ On-Board power measurement circuitry

■ System Monitoring

■ Power—voltage, current, wattage

■ Temperature—FPGA die, local board

■ Mechanical

■ PCI Express short form factor

■ PCI Express chassis or bench-top operation
