TI ADS5294 80MSPS 8路医学图像解决方案

发布时间：2011-11-22 16:02 发布者：1640190015

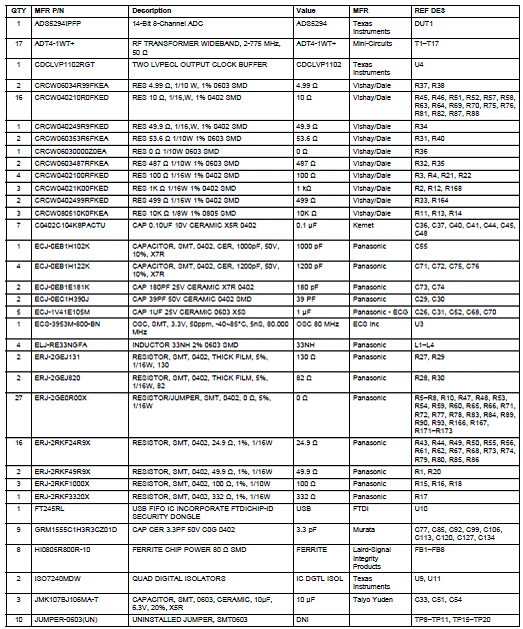

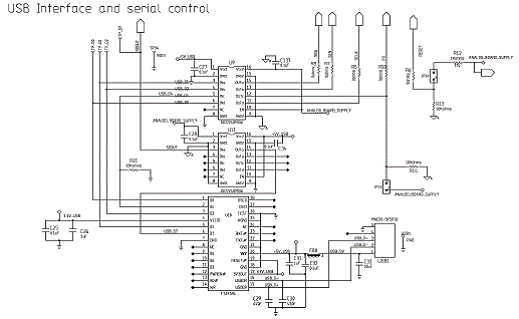

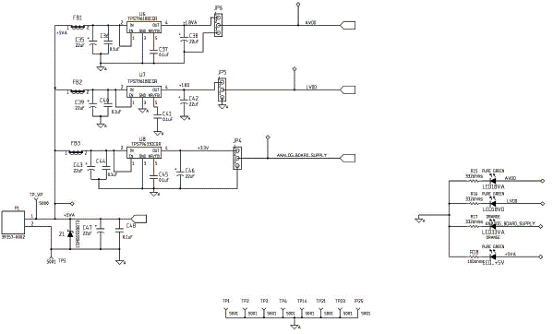

TI公司的ADS5294是80MSPS/14位 8路ADC,具有低功耗,高SNR和低SFDR,以及连续过载恢复,适用于高性能系统设计. ADS5294具有数乁信号处理核,包括数字滤波器模块, 可编程数字增益0 dB到12 dB,内部和外接基准电压,1.8V工作电压,主要用在超声图像,通信设备和多路数据采集.本文介绍了ADS5294主要特性,方框图, 模拟输入模型和电路,评估模块测试图以及评估模块电路图,材料清单和PCB布局图.

Using CMOS process technology and innovative circuit techniques, the ADS5294 is a low power 80MSPS 8-Channel ADC. Low power consumption, high SNR, low SFDR, and consistent overload recovery allow users to design high performance systems.

The ADS5294 has a digital processing block that integrates several commonly used digital functions for improving system performance. It includes a digital filter module that has built-in decimation filters (with low-pass, high-pass and band-pass characteristics).

The decimation rate is also programmable (by 2, by , or by 8). This makes it useful for narrow-band applications, where the filters can be used conveniently to improve SNR and knock-off harmonics, while at the same time reducing the output data rate. The device includes an averaging mode where two channels (or even four channels) can be averaged to improve SNR.

Serial LVDS outputs reduce the number of interface lines and enable the highest system integration. The digital data from each channel ADC can be output over one or two wires of LVDS output lines depending on the ADC sampling rate. This 2-wire interface helps keep the serial data rate low, allowing low cost FPGA based receivers to be used even at high sample rate. The ADC resolution can be programmed to 12 bit or 14 bit through register. A very unique feature is the programmable mapping module that allows flexible mapping between the input channels and the LVDS output pins. This helps greatly reduce the complexity of LVDS output routing and can potentially result in cheaper system boards by reducing the number of PCB layers.

The device integrates an internal reference trimmed to accurately match across devices. Best performance is expected to be achieved through the internal reference mode. The device can be driven with external references as well. The device is available in a 12 mm × 12 mm 80-pin QFP. It is specified over a –40°C to 85°C operating temperature range. ADS5294 is completely pin-to-pin and register compatible to ADS5292 QFP. It is specified over a –40°C to 85°C operating temperature range. ADS5294 is completely pin-to-pin and register compatible to ADS5292.

ADS5294主要特性:

Maximum Sample Rate: 80 MSPS/14-Bit

High Signal-to-Noise Ratio

75.5-dBFS SNR at 5 MHz/80 MSPS

78.2-dBFS SNR at 5 MHz/80 MSPS and Decimation Filter Enabled

84-dBc SFDR at 5 MHz/80 MSPS

Low Power Consumption

58 mW/CH at 50 MSPS

77 mW/CH at 80 MSPS (2 LVDS Wire Per Channel)

Digital Processing Block

Programmable FIR Decimation Filter and Oversampling to

Minimize Harmonic Interference

Programmable IIR High Pass Filter to Minimize DC Offset

Programmable Digital Gain: 0 dB to 12 dB

2- or 4- Channel Averaging

Flexible Serialized LVDS Outputs:

One or Two Wires of LVDS Output Lines per Channel

Depending on ADC Sampling Rate

Programmable Mapping Between ADC Input Channels and

LVDS Output Pins-Eases Board Design

Variety of Test Patterns to Verify Data Capture

by FPGA/Receiver

Internal and External References

1.8V Operation for Low Power Consumption

Low-Frequency Noise Suppression

ADS5294应用:

Ultrasound Imaging

Communication Applications

Multi-channel Data Acquisition

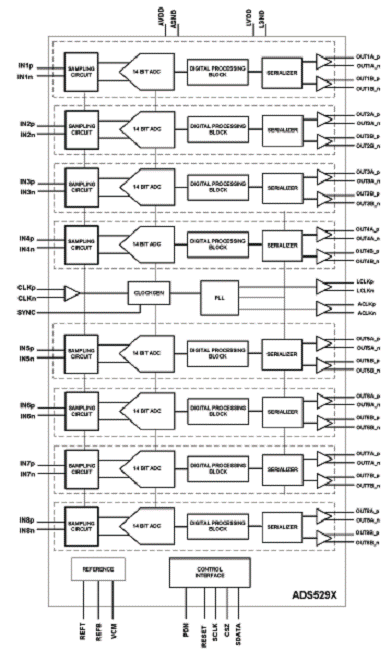

图1. ADS5294方框图

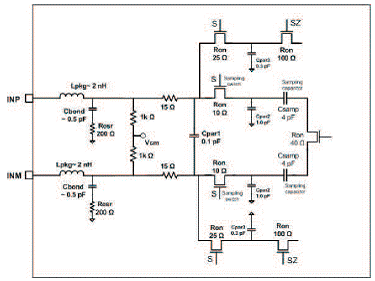

图2. ADS5294模拟输入模型

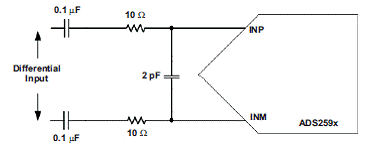

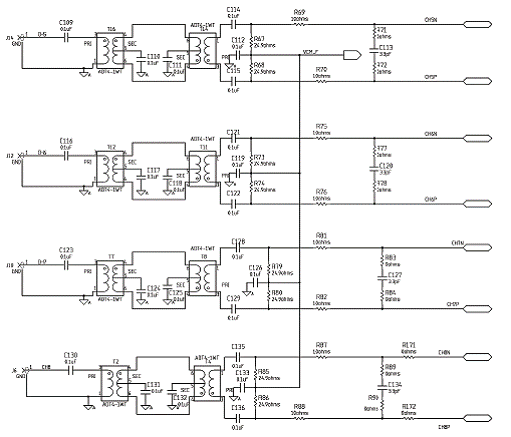

图3. ADS5294模拟输入驱动电路

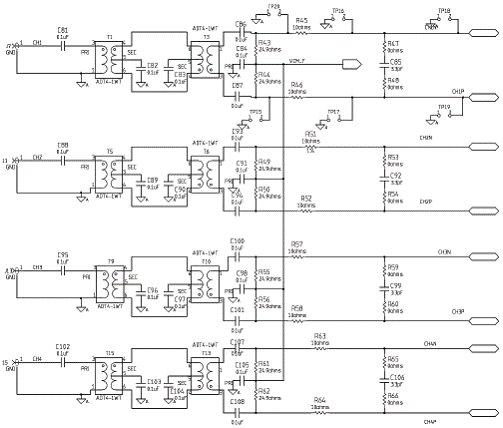

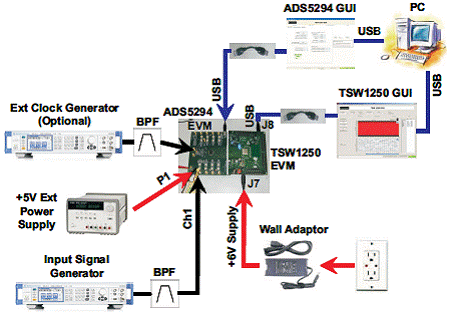

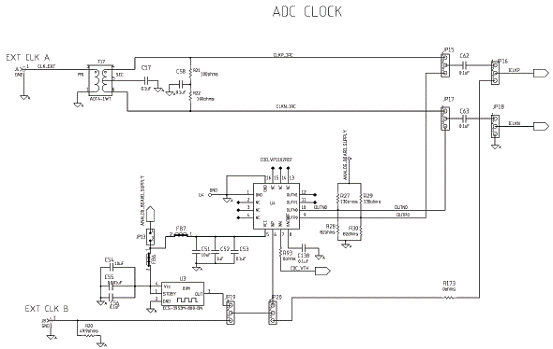

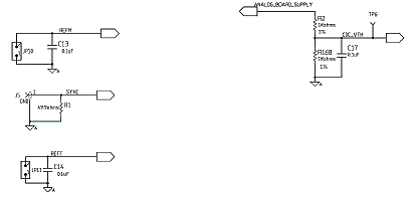

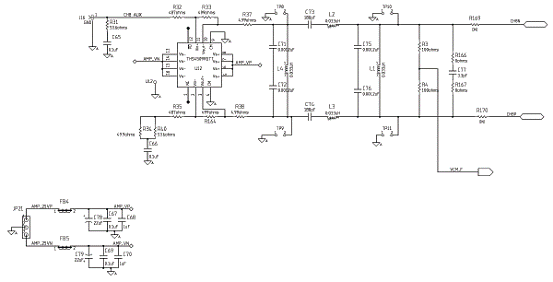

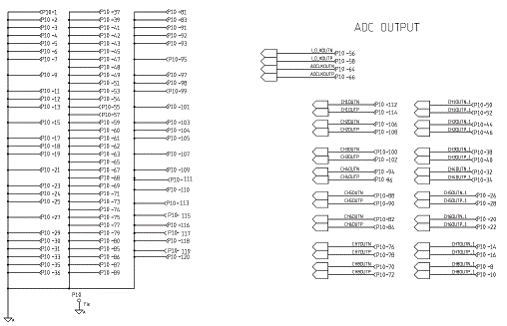

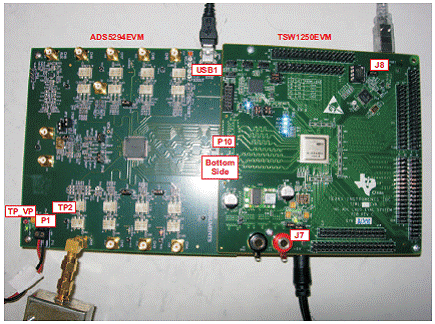

ADS5294评估模块

This user’s guide gives a general overview of the evaluation module (EVM) and provides a general description of the features and functions to be considered while using this module. This manual is applicable to the ADS5294 analog-to-digital converters (ADC), which collectively are referred to as ADS529x. Use this document in combination with the respective ADC data sheet. The ADS529xEVM provides a platform for evaluating the ADC under various signal, clock, reference, and power supply conditions.
