TI bq76PL536-Q1 3-6组汽车锂离子电池监视解决方案
发布时间：2011-5-23 10:29
发布者：Liming
|
TI 公司的bq76PL536-Q1是 3-6组锂离子电池监视器和二级保护集成电路，器件集成了高精度ADC，精度达±1 mV，14位分辨率，6us转换时间，具有热插入和高速SPI数据通信，主要用于电动汽车和混合动力汽车，电动自行车，UPS和大容量电池系统。本文介绍了bq76PL536-Q1主要特性，方框图，参考应用电路以及bq76PL536-3评估模块特性，单电源和三个电源连接图与bq76PL536系统应用框图。 3 to 6 Series Cell Lithium-Ion Battery Monitor and Secondary Protection IC for EV and HEV Applications The bq76PL536-Q1 is a stackable three to six series cell lithium-ion battery pack protector and analog front end (AFE) that incorporates a precision analog-to-digital converter (ADC); independent cell voltage and temperature protection; cell balancing, and a precision 5-V regulator to power user circuitry. The bq76PL536-Q1 integrates a voltage translation and precision analog-to-digital converter system to measure battery cell voltages with high accuracy and speed. The bq76PL536-Q1 provides full protection (secondary protection) for overvoltage, undervoltage, and overtemperature conditions. When safety thresholds are exceeded, the bq76PL536-Q1 sets the FAULT output. No external components are needed to configure or enable the protection features. bq76PL536-Q1主要特性： 3 to 6 Series Cell Support, All Chemistries Hot-Pluggable High-Speed SPI for Data Communications Stackable Vertical Interface No Isolation Components Required Between ICs Qualified for Automotive Applications Temperature Range –40℃ to 105℃ High-Accuracy Analog-to-Digital Converter (ADC): ±1 mV Typical Accuracy 14-Bit Resolution, 6-µs Conversion Time Nine ADC Inputs: 6 Cell Voltages, 1 Six-Cell Brick Voltage, 2 Temperatures, 1 General-Purpose Input Dedicated Pins for Synchronizing Measurements Configuration Data Stored in ECC-OTP Registers Built-In Comparators (Secondary Protector) for: Over- and Undervoltage Protection Overtemperature Protection Programmable Thresholds and Delay Times Dedicated Fault Output Signals Cell Balancing Control Outputs With Safety Timeout Balance Current Set by External Components bq76PL536-Q1应用： Electric and Hybrid Electric Vehicles E-Bike and E-Scooter Uninterruptible Power Systems (UPS) Large-Format Battery Systems
图1。bq76PL536-Q1 方框图

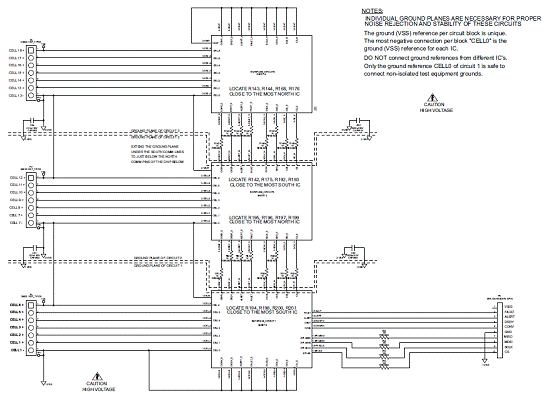

图2。bq76PL536-Q1 简化系统连接框图

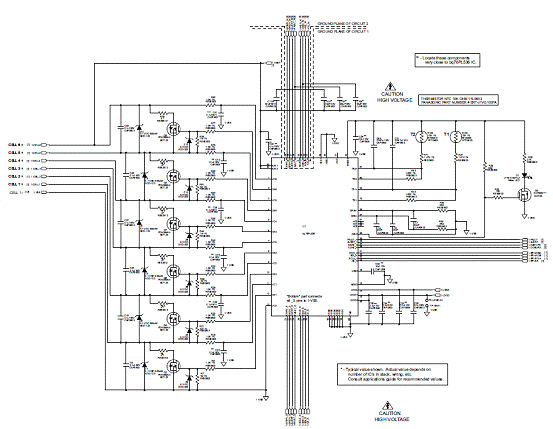

图3。bq76PL536-Q1 参考应用电路（1）

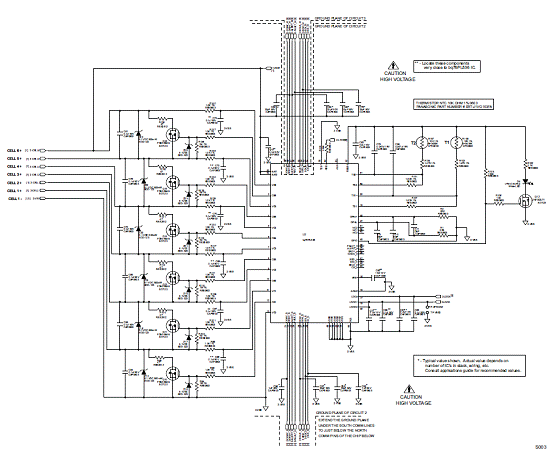

图4。bq76PL536-Q1 参考应用电路（2）

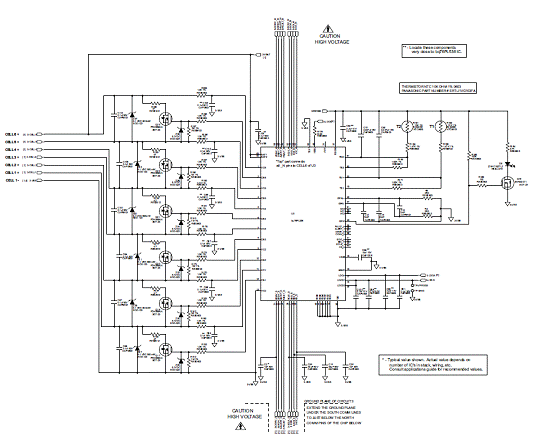

图5。bq76PL536-Q1 参考应用电路（3）
图6。bq76PL536-Q1 参考应用电路（4） bq76PL536-3评估模块 Evaluation Module for BQ76PL536 Lithium-Ion Battery Monitor and Secondary Protection IC The User’s Guide for bq76PL536EVM-3 covers the initial connection and installation of the Texas Instruments bq76PL536 Evaluation Module (EVM), supplied in kit form including the EVM board, the USB-SPI adapter, and connectors to make cells-to-EVM connection. It is not meant as a comprehensive guide to using the ‘536 integrated circuit and its’ features.
图7。bq76PL536-3评估模块外形图

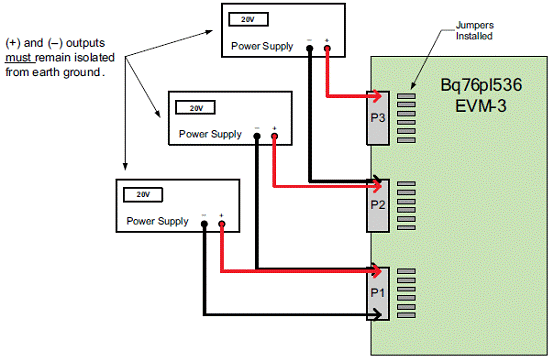

图8。bq76PL536-3评估模块三个~20V电源连接图

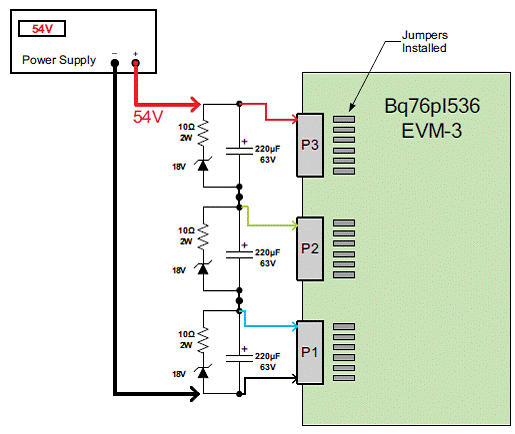

图9。bq76PL536-3评估模块单个54V电源连接图

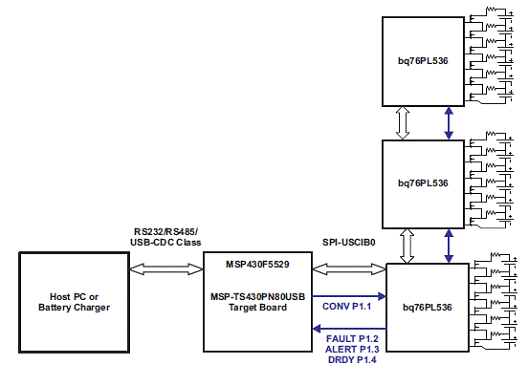

图10。bq76PL536系统应用框图 详情请见： http://focus.ti.com/lit/ds/symlink/bq76pl536-q1.pdf 和 http://focus.ti.com/lit/ug/sluu437a/sluu437a.pdf |
