AMD Embedded R-Series与G-Series SOC整合式芯片组嵌入式高效能解决方案
发布时间：2014-3-10 15:33
发布者：大联大云端
关键词：
SOC
|

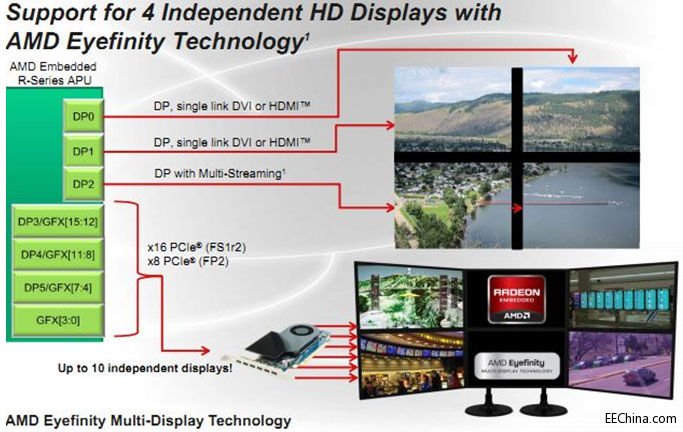

AMD R-Series 嵌入式高效能的R系列“R-Series”整合式芯片组设计除了实现高画质视觉体验，而且尺寸更轻薄、耗电量和成本更低，面向数字广告牌、x86机顶盒、IP电视、信息亭、POS中端、数字赌场应用等设备，甚至提款机等系统皆可因此获得更高分辨率显示效果，另对3D图像呈现亦有实质提升效果。除整体显示效果提升外，藉由AMD在Radeon HD7000绘图芯片中所投入的软件整合部份也可进一步提供影像编码、译码的效能，应用在医疗或监视系统皆相对可提升实质应用成效。 规格： High performance integrated x86 cores. AMD RadeonTM HD7000G Series graphics integrated into the AMD R-Series APUs. Unified North Bridge. High-bandwidth, low-latency integrated memory controller. Low-latency platform interface. 技术优势： Hardware Video Compression Engine enables efficient encoding and fast video conversion. Secure Asset Management Unit lowers power /CPU overhead when dealing with protected content. A wide range of parallel compute capabilities offered to suit the requirements of many embedded applications. 产品特色： Drive up to 4 displays from a single highly integrated processor. Drive multiple displays simultaneously as independent displays, or as a single large surface with AMD Eyefinity technology. Display resolutions of up to 4k x 2k @ 30 Hz utilizing a single display output. Drive up to10 independent displays by pairing an AMD R-Series. APU with an AMD RadeonTM Embedded 6000 Series discrete graphics processor or card.

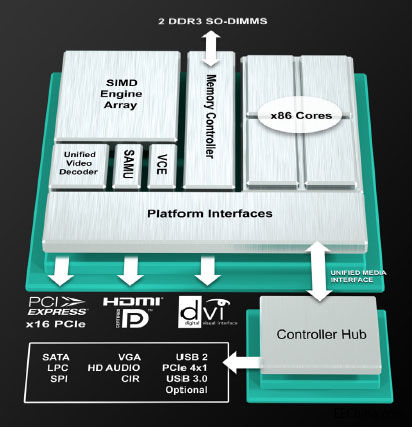

AMD G-Series SOC “G-Series SOC”延伸技术革命，将低耗电 CPU、进阶 GPU 和 I/O 控制器结合到单一装置中。基于AMD新一代“Jaguar”CPU架构和AMD Radeon™ 8000系列图形处理器的单芯片解决方案。与上一代AMD嵌入式APU相比，CPU性能提高了113%。AMD嵌入式G系列SOC在产品尺寸上也缩减了33%，且兼具低功耗及卓越性能。AMD嵌入式G系列SOC平台允许OEM利用单板设计实现从入门级到高端产品的解决方案可扩展性，简化OEM的产品开发业务，进而大幅降低成本。同时，AMD嵌入式G系列SOC的低功耗属性也可实现无风扇设计，进一步降低系统成本，减少系统噪音。 基于AMD嵌入式G系列SOC解决方案开发的产品被广泛应用于教育、医疗行业、政府办公以及中小企业信息化等领域。AMD嵌入式G系列SOC平台具备性能更优，功耗更低，体积更小，成本更低等多种优势，是工业控制与自动化、多媒体数字电子广告牌、IP电视、医疗和网络设备、机顶盒等目标应用的理想平台。 规格： The AMD Embedded G-Series SOC platform is a high-performance, low-power System-on-Chip (SOC) design, featured with enterprise- class error-correction code (ECC) memory support, dual and quad- core variants, integrated discrete-class GPU and I/O controller on the same die. The AMD G-Series SOC achieves superior performance per watt in the low-power x86 microprocessor class of products when running multiple industry standard benchmarks. This helps enable the delivery of an exceptional HD multimedia experience and provides a heterogeneous computing platform for parallel processing. The small-footprint, ECC- capable SOC sets the new foundation for a power-efficient platform for content-rich multimedia processing and workload processing that is well-suited for a broad variety of embedded applications. 技术优势： Supporting ECC memory, AMD G-Series SOC platforms will help to penetrate markets previously inaccessible to x86 products in these power envelopes, at this price point. The AMD G-Series SOC helps achieve higher system quality, reliability, and energy efficiency, which contribute to overall lower TCO. Multiple performance levels offer upgrade paths to protect software and hardware ecosystem costs. AMD’s standard embedded 5 year availability and support (additional 2 years under contract possible) maximizes ROI. The AMD G-Series SOC platform is well-suited for low-power and high-performance designs in a broad range of markets including Industrial Control & Automation, Digital Signage, Thin Client, Electronic Gaming Machines, and SMB storage appliances. 产品特色： The SOC design offers 33% footprint reduction compared to AMD G-Series APU two-chip platform, simplifying design with fewer board layers and simplified power supply. AMD G-Series SOC enables fan-less design that further helps drive down system cost and enhance system reliability by eliminating moving parts. With an array of performance options, the AMD G-Series SOC platform allows OEMs to utilize a single board design to enable solutions from entry-level to high-end. The SOC design enables new levels of performance in small SBC (single board computer) and COMs (computer-on-modules) form factors. 本方案来自大联大云端 |
