ADI ADP2442 1A同步降压稳压器设计方案
发布时间：2013-1-19 19:54
发布者：1770309616
|
ADI公司的ADP2442是一款高效、同步、恒定频率、电流控制模式降压型DC/DC稳压器，该芯片具有优秀的负载稳压特性，负载驱动能力可达到1A。ADP2442具有较宽的输入电压范围（4.5V-36V），可以应用于多种稳压输入源，输出电压范围为0.6V-0.9*Vin。ADP2442具有过流保护、过热保护、欠压锁定等多种内部保护功能。本文通过总结ADP2442器件的特点，介绍器件、特性、应用方向及内部结构框图，并给参考设计实例原理图、制板图及元器件清单。 The ADP2442 is a constant frequency, current mode control, synchronous, step-down, dc-to-dc regulator that is capable of driving loads of up to 1 A with excellent line and load regulation characteristics. The ADP2442 operates with a wide input voltage range from 4.5 V to 36 V, which makes it ideal for regulating power from a wide variety of sources. In addition, the ADP2442 has very low minimum on time (50 ns) and is, therefore, suitable for applications requiring a very high step-down ratio. The output voltage can be adjusted from 0.6 V to 0.9 × VIN. High efficiency is obtained with integrated low resistance N-channel MOSFETs for both high-side and low-side devices. The switching frequency is adjustable from 300 kHz to 1 MHz with an external resistor. The ADP2442 also has an accurate power-good (PGOOD) open-drain output signal. The ADP2442 offers the flexibility of external clock synchronization. The switching frequency can be synchronized to an external clock, applied to the SYNC/MODE pin. The ADP2442 can also be configured to operate in the forced fixed frequency mode for low EMI or power saving mode to reduce the switching losses at light load. The ADP2442 uses hiccup mode to protect the IC from short circuits or from overcurrent conditions on the output. The internal soft start limits inrush current during startup for a wide variety of load capacitances. Other key features include input undervoltage lockout (UVLO), thermal shutdown (TSD), and precision enable (EN), which can also be used as a logic level shutdown input. The ADP2442 is available in a 3 mm × 3 mm, 12-lead LFCSP package and is rated for a junction temperature range from −40℃ to +125℃. ADP2442主要特性： Wide input voltage range from 4.5 V to 36 V Low minimum on time of 50 ns typical Maximum load current of 1 A High efficiency of up to 94% Adjustable output down to 0.6 V ±1% output voltage accuracy Adjustable switching frequency from 300 kHz to 1 MHz External synchronization from 300 kHz to 1 MHz Pulse skip mode or forced fixed frequency mode Precision enable input pin (EN) Open-drain power good Internal soft start Overcurrent-limit protection Shutdown current of less than 15 μA UVLO and thermal shutdown 12-lead, 3 mm × 3 mm LFCSP package Supported by the ADIsimPower™ tool set ADP2442应用： Point of load applications Distributed power systems Industrial control supplies Standard rail conversion to 24 V/12 V/5 V/3.3 V

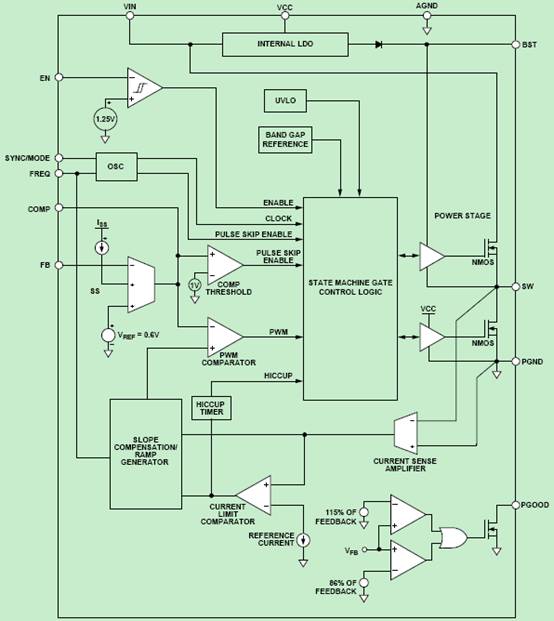

图1. ADP2442方框图 ADP2442设计原理图：

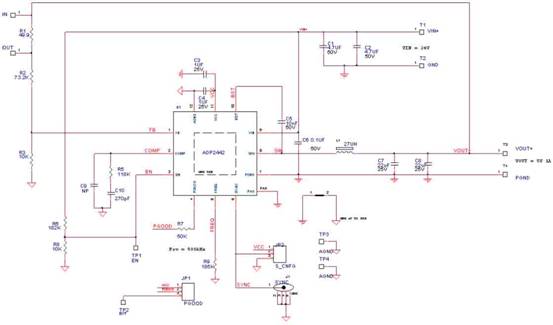

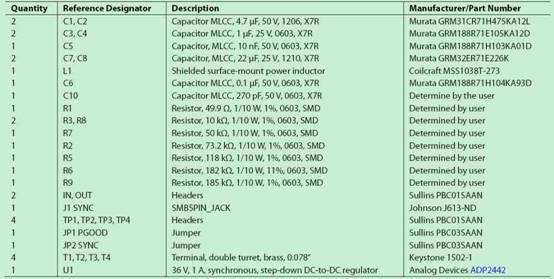

图2. ADP2442设计原理图 ADP2442设计方案材料清单：

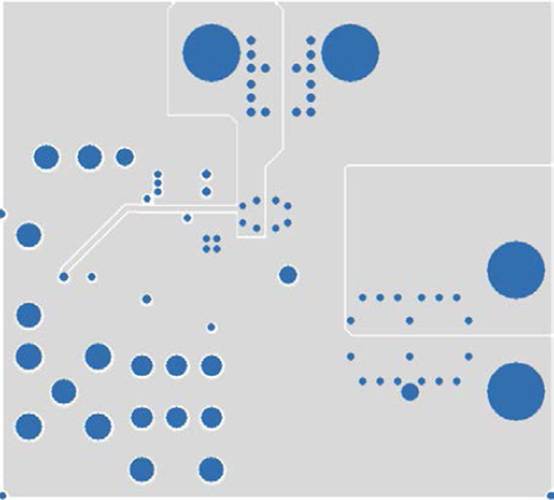

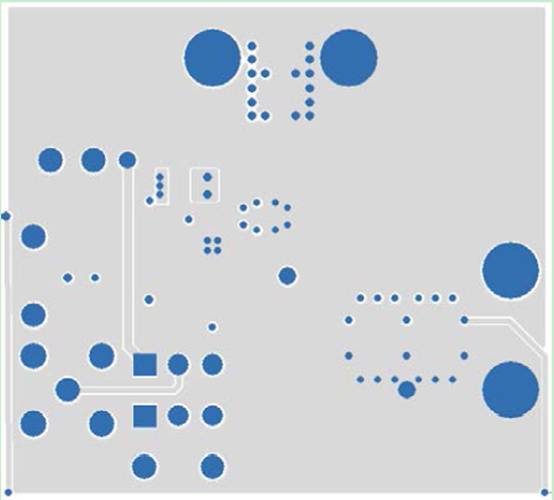

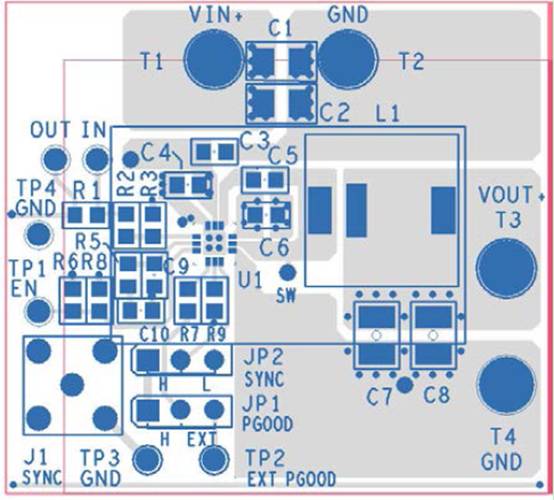

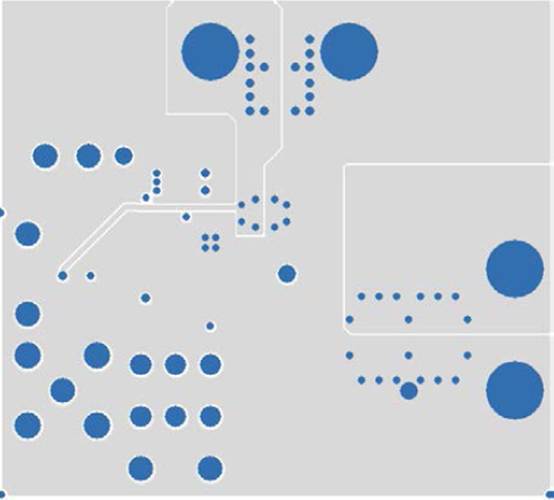

PCB元件布局图：
ADP2441.1.pdf
(1.15 MB)
ADP2442.2.pdf
(332.44 KB)
UG-456.1.pdf
(325.47 KB)
UG-456.2.rar
(1.84 MB)
