Industrial wifi6 router/wifi6-Qualcomm-IPQ6010/IPQ6018-Wallys

Cindy1818

MT7915/IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/IPQ5018/IPQ8072/IPQ8072A/IPQ8074/IPQ8074A/QCN6024/QCN9074/QCN9072/QCN9024/IPQ4018/IPQ4028/AR9223/QCA9880/QCA9882/AR9582/AR9531/AR9344 /AR9342/AX200NGW/QCA9531.

Wallys' products It is also constantly upgraded, from WIFI5 to WIFI6, the chipset is also from IPQ4019 to IPQ8074 and so on, Wallys is always the most cutting-edge wireless technology of the times!

EMAIL:sales2@wallystech.com

WEB:https://www.wallystech.com/

This section describes three Wallys RouterBoards based on Qualcomm IPQ6010/IPQ6018 chips. DR6018, DR6018C, V01, DR6018S.

Let's talk a little bit about the parameters.

DR6018 and DR6018C V01, support UECTEL RM500Q-GL&Support: QCN9074 WiFi 6 e card, 802.11ax, IPQ6010, support 2.4g&5g OpenWRT 2×2.

The difference is that DR6018 does not have SFP and DR6018C V01 has SFP.

Compared with the previous two Routerboards, DR6018S has fewer network ports and no SFP. Therefore, DR6018S cannot be used with a moudle.

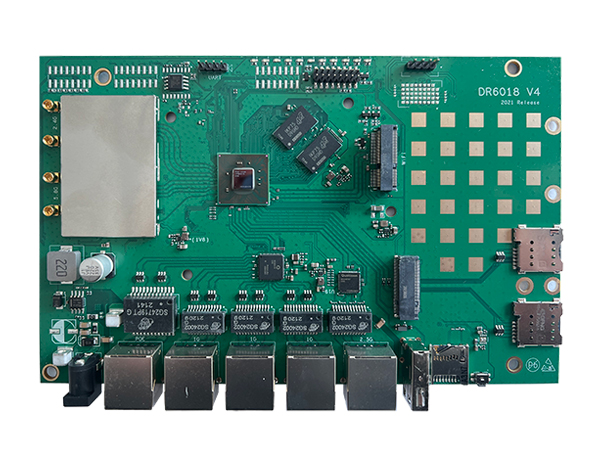

DR6018

https://www.wallystech.com/Routerboard/DR6018V4-wifi6-Qualcomm-IPQ6010-IPQ6018-FAMILY-2T2R-2.5G-ETH-port-supporting-5G-celluar-Modem-802-11AX-MU-MIMO-OFDMA.html

QCN9074 WiFi 6E Card OpenWRT, IPQ6010,802.11ax,

2×2 2.4G&5G 2.5Gbps Ethernet Port Support OpenWRT SupportUECTEL RM500Q-GL&Support:

Qualcomm-Atheros IPQ6010

Quad-core ARM 64bit A53 @1.8GHz Processor

1GB DDRL3L System Memory

32MB NOR Flash, 256MB NAND Flash

Supports Dynamic Frequency Selection (DFS)

2×2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate

2×2 On-board 5GHz radio, up to 1201Mbps physical Data Rate

Support: QUECTEL RM500Q-GL

Support: QCN9074 WiFi 6E Card

SupportUECTEL RM500Q-GL&SupportCN9074 WiFi 6E Card,802.11ax,IPQ6010

DR6018C V01

https://www.wallystech.com/Routerboard/DR6018CV01-wifi6-Qualcomm-IPQ6010-IPQ6018-FAMILY-2T2R-2.5G-ETH-port-supporting-5G-celluar-Modem-802-11AX-MU-MIMO-OFDMA-SFP.html

SupportUECTEL RM500Q-GL&SupportCN9074 WiFi 6E Card,802.11ax,IPQ6010

Support OpenWRT 2×2 2.4G&5G 2.5Gbps Ethernet Port SFP

Qualcomm-Atheros IPQ6010

Quad-core ARM 64bit A53 @1.8GHz Processor

1GB DDRL3L System Memory

32MB NOR Flash, 256MB NAND Flash

Supports Dynamic Frequency Selection (DFS)

2×2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate

2×2 On-board 5GHz radio, up to 1201Mbps physical Data Rate

Support: QUECTEL RM500Q-GL

Support: QCN9074 WiFi 6E Card

DR6018-S

https://www.wallystech.com/Routerboard/DR6018-S-V02-wifi6-Qualcomm-IPQ6010-2T2R-2-GE-port-supporting-QCN9074-wifi-card-802.11AX-MU-MIMO-OFDMA.html

Support OpenWRT 2×2 2.4G&5G

DR6018-S V02 IPQ6010/IPQ6018/IPQ6000

Quad-core ARM 64bit A53 @1.8GHz Processor

1GB DDRL3L System Memory

8MB NOR Flash, 256MB NAND Flash

Supports Dynamic Frequency Selection (DFS)

2×2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate

2×2 On-board 5GHz radio, up to 1201Mbps physical Data Rate

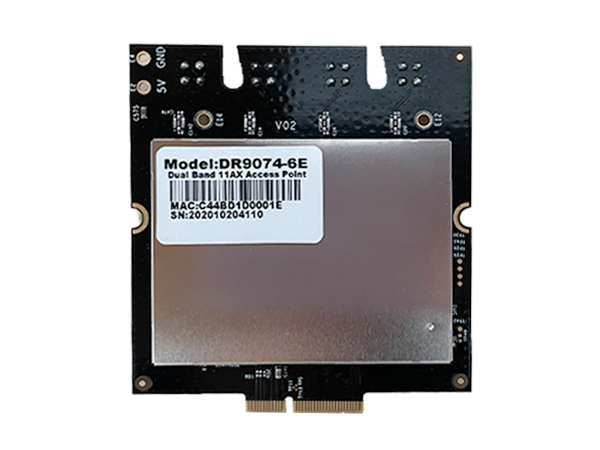

QCN9074/QCN9024/QCN6024 series moudle

Support 2.4G/5G/6G, single frequency.
