Microchip MCP3903六路模拟前端解决方案

发布时间:2011-10-31 11:30    发布者:Liming
关键词: MCP3903 , Microchip , 模拟前端
Microchip 公司的MCP3903是六路模拟前端(AFE),包括三对同步取样的16位/24位Delta-Sigma ADC,相位补偿区块,基准电压和高速10MHz SPI兼容的串行接口。每路的SINAD为91dB,THD为-100dBc,SFDR为102dB,可编程数据速率高达64ksps,任何两路的串扰为-115dB,关断模式电流小于2uA,主要用在电表和电源管理,手提仪表。医疗和电源监视。本文介绍了MCP3903主要特性,方框图,以及MCP3903 16位MCU评估板主要特性,电路图,材料清单和PCB布局图。

The MCP3903 is a six-channel Analog Front End (AFE) containing three pairs made out of two synchronous sampling Delta-Sigma Analog-to-Digital Converters (ADC) with PGA, a phase delay compensation block, internal voltage reference, and high-speed 10 MHz SPI compatible serial interface. The converters contain a proprietary dithering algorithm for reduced idle tones and improved THD.

The internal register map contains 24-bit wide ADC data words, a modulator output register as well as six 24-bit writable control registers to program gain, over-sampling ratio, phase, resolution, dithering, shut-down, reset and several communication features.

The communication is largely simplified with various Continuous Read modes that can be accessed by the Direct Memory Access (DMA) of an MCU and with separate Data Ready pins that can directly be connected to the Interrupt Request (IRQ) input of an MCU. The MCP3903 is capable of interfacing to a large variety of voltage and current sensors including shunts, current transformers, Rogowski coils, and Hall-effect sensors.

MCP3903主要特性:

• Six Synchronous Sampling 16/24-bit Resolution Delta-Sigma A/D Converters with Proprietary Multi-Bit Architecture

• 91 dB SINAD, -100 dBc Total Harmonic Distortion (THD) (up to 35th harmonic), 102 dB Spurious-free Dynamic Range (SFDR) for Each Channel

• Programmable Data Rate up to 64 ksps

• Ultra Low-Power Shutdown Mode with <2 μA

• -115 dB Crosstalk Between any Two Channels

• Low Drift Internal Voltage Reference: 5 ppm/℃

• Differential Voltage Reference Input Pins

• High Gain PGA on Each Channel (up to 32 V/V)

• Phase Delay Compensation Between Each Pair of Channels with 1 μs Time Resolution

• High-Speed Addressable 10 MHz SPI Interface with Mode 0,0 and 1,1 Compatibility

• Independent Analog and Digital Power Supplies 4.5V - 5.5V AVDD, 2.7V - 3.6V DVDD

• Available in Small 28-lead SSOP Package

• Extended Temperature Range: -40℃ to +125℃

MCP3903应用:

• Energy Metering and Power Measurement

• Portable Instrumentation

• Medical and Power Monitoring

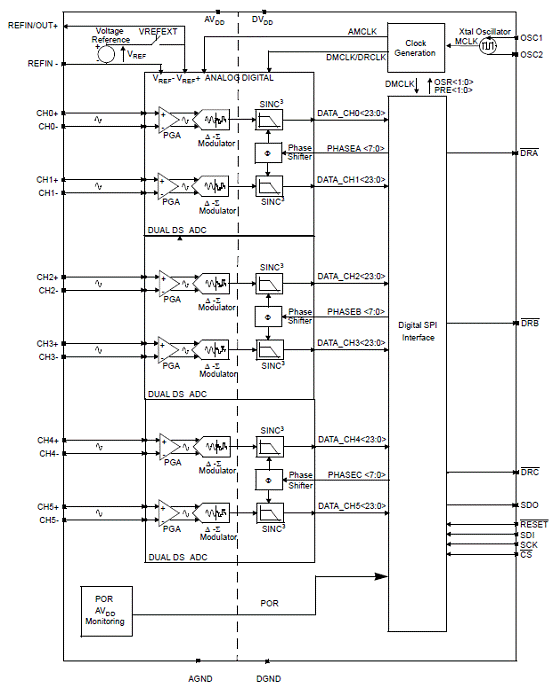

图1。MCP3903方框图

MCP3903 16位MCU评估板

This chapter contains general information that will be useful to know before using the MCP3903 ADC Evaluation Board for 16-Bit MCUs.

The MCP3903 ADC Evaluation Board for 16-Bit MCUs system lets users evaluate the performance of the MCP3903 six-channel ADC. It also provides a development platform for 16-bit PIC® MCU-based applications, using existing 100-pin PIM systems, compatible with the Explorer-16 and other high pincount PIC demo boards. The system comes with programmed PIC24FJ128GA010 PIM modules that communicate with the LabView GUI for data exchange and ADC setup.

MCP3903 16位MCU评估板主要特性:

• Six-channel ADC MCP3903 output display using serial communication to the PC Software Interface and LCD

• Simultaneous 4 ksps at 91 dB Signal-to-Noise and Distortion Ratio (SINAD) performance. The ADC can run up to 64 ksps.

• System and ADC performance analysis through graphical PC tools showing Time domain scope plot, Frequency Domain (FFT), and statistical numerical analysis.

• Robust hardware design with analog grounding and analog/digital separation, allowing low noise evaluation of the MCP3903 devices. Separate power supplies and power planes - 4 layer board.

• Pigtail Plus connectors for Explorer-16 daughter board compatibility.

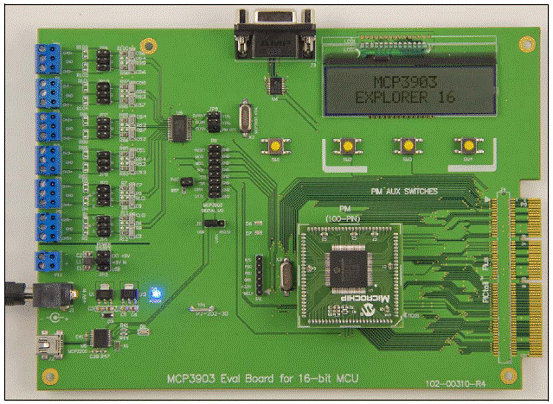

图2。MCP3903 16位MCU评估板外形图

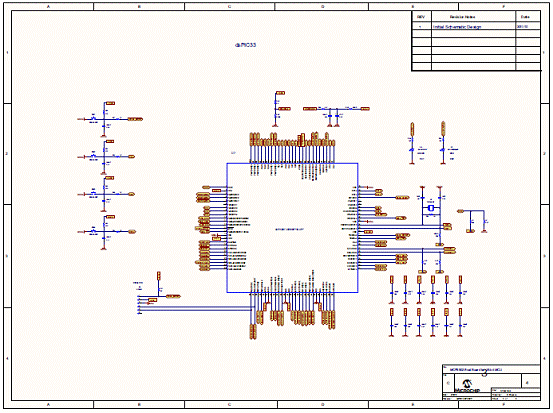

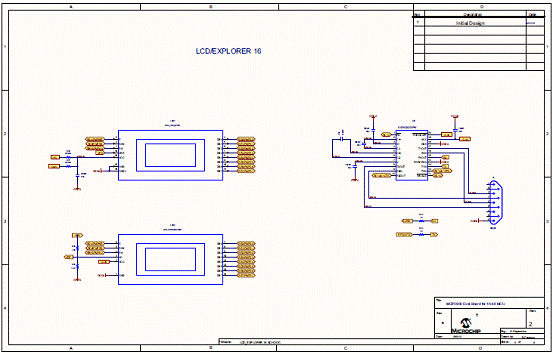

图3。MCP3903 16位MCU评估板电路图(1)
图4。MCP3903 16位MCU评估板电路图(2)
图5。MCP3903 16位MCU评估板电路图(3)
图6。MCP3903 16位MCU评估板电路图(4)
图7。MCP3903 16位MCU评估板电路图(5)
图8。MCP3903 16位MCU评估板电路图(6)

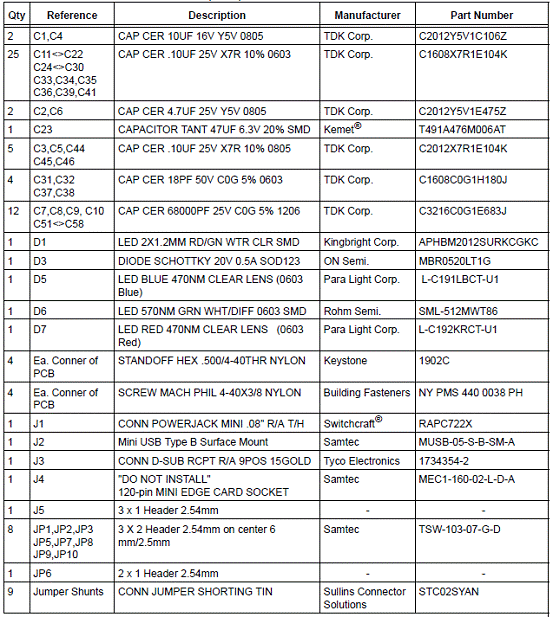

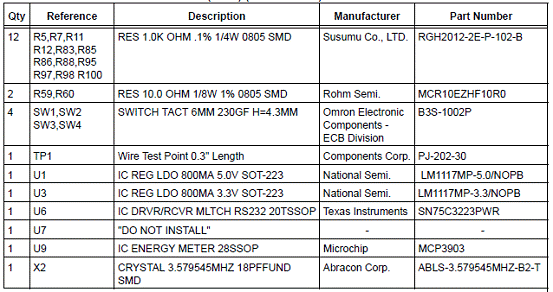

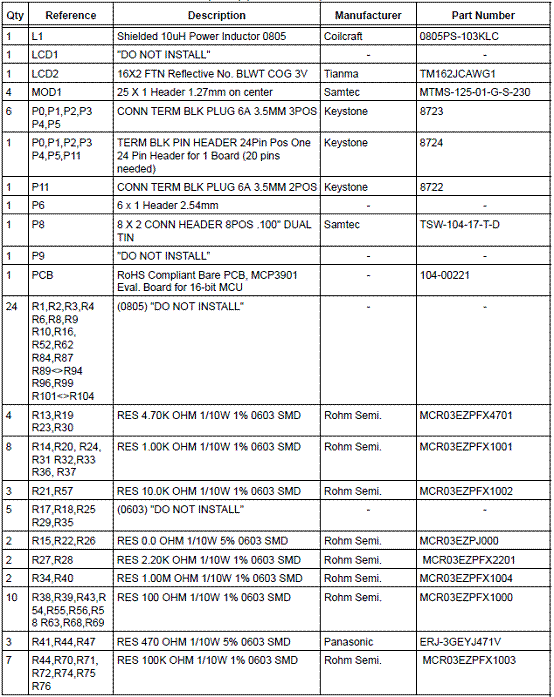

MCP3903 16位MCU评估板材料清单(BOM):

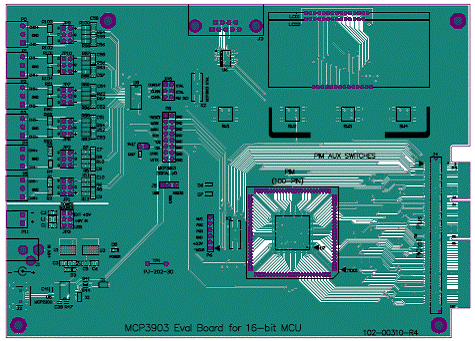

图9。MCP3903 16位MCU评估板PCB布局图(顶层)
图10。MCP3903 16位MCU评估板PCB布局图(底层)
详情请见:
25048B[1].pdf (1.58 MB)
51994A[1].pdf (1.43 MB)
