Linear LTC2145-14低功耗125Msps 14位模数转换方案~*

发布时间:2011-9-28 00:35    发布者:1770309616
关键词: Linear , LTC2145-14 , 模数转换
Linear公司的LTCR2145-14/LTC2144-14/LTC2143-14是低功耗2路同时取样的14位模数转换器(ADC),SNR达到73.1dB,SFDR为90dB,取样速率达125Mbps,DC指标包括±1LSB INL, ±0.3LSB DNL,整个温度范围内不会丢失码,CMOS输出摆幅从1.2V到1.8V,主要用在通信,蜂窝基站,软件定义无线电(SDR),手提医疗图像设备,多路数据采集和非破坏性测试.本文介绍了LTC2145-14主要特性, 功能方框图,典型应用电路以及输入频率5MHz-150MHz, 150MHz-250MHz和大于250MHz的前端电路图, 1620A演示板电路图和材料清单(BOM).

The LTCR2145-14/LTC2144-14/LTC2143-14 are 2-channel simultaneous sampling 14-bit A/D converters designed for digitizing high frequency, wide dynamic range signals.

They are perfect for demanding communications applications with AC performance that includes 73.1dB SNR and 90dB spurious free dynamic range (SFDR). Ultralow jitter of 0.08psRMS allows undersampling of IF frequencies with excellent noise performance.

DC specs include ±1LSB INL (typ), ±0.3LSB DNL (typ) and no missing codes over temperature. The transition noise is 1.2LSBRMS.

The digital outputs can be either full rate CMOS, double data rate CMOS, or double data rate LVDS. A separate output power supply allows the CMOS output swing to range from 1.2V to 1.8V.

The ENC+ and ENC– inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

LTC2145-14主要特性:

Two-Channel Simultaneously Sampling ADC

73.1dB SNR

90dB SFDR

Low Power: 189mW/149mW/113mW Total 95mW/75mW/57mW per Channel

Single 1.8V Supply

CMOS, DDR CMOS, or DDR LVDS Outputs

Selectable Input Ranges: 1VP-P to 2VP-P

750MHz Full Power Bandwidth S/H

Optional Data Output Randomizer

Optional Clock Duty Cycle Stabilizer

Shutdown and Nap Modes

Serial SPI Port for Configuration

64-Pin (9mm × 9mm) QFN Package

LTC2145-14应用:

Communications

Cellular Base Stations

Software Defined Radios

Portable Medical Imaging

Multi-Channel Data Acquisition

Nondestructive Testing

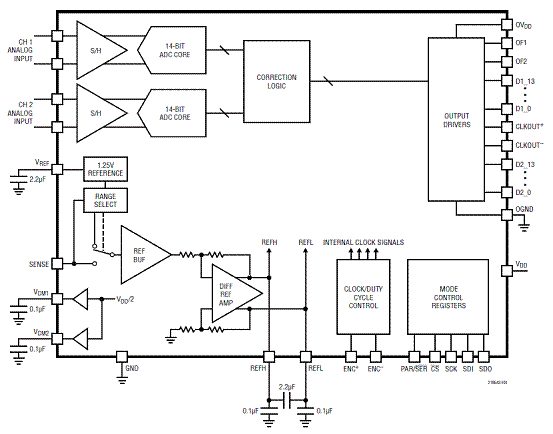

图1.LTC2145-14功能方框图

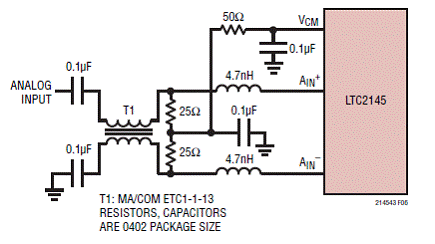

图2.LTC2145-14输入频率5MHz-150MHz的前端电路图
图3.LTC2145-14输入频率150MHz-250MHz的前端电路图
图4.LTC2145-14输入频率大于250MHz的前端电路图

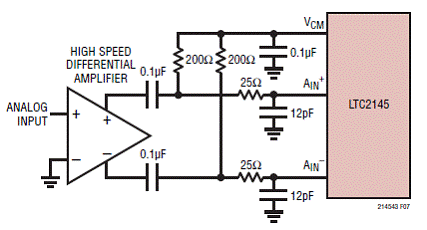

图5.LTC2145-14采用高速差分放大器的前端电路图
图6.LTC2145-14典型应用电路图

1620A演示板

Demonstration circuit 1620A supports a family of 16-/14-/12-bit, 25Msps to 125Msps ADCs. Each assembly features one of the following devices: LTC®2185, LTC2184, LTC2183, LTC2182, LTC2181, LTC2180, LTC2145-14, LTC2144-14, LTC2143-14, LTC2142-14, LTC2141-14, LTC2140-14, LTC2145-12, LTC2144-12, LTC2143-12, LTC2142-12, LTC2141-12, or LTC2140-12 high speed, high dynamic range ADCs.

Demonstration circuit 1620A supports the LTC2185/LTC2145 family DDR LVDS output mode.

The versions of the 1620A demo board supporting the LTC2185 and LTC2145 series of A/D converters. Depending on the required resolution and sample rate, the DC1620A is supplied with the appropriate ADC. The circuitry on the analog inputs is optimized for analog input frequencies from 5MHz to 70MHz. Refer to the data sheet for proper input networks for different input frequencies.

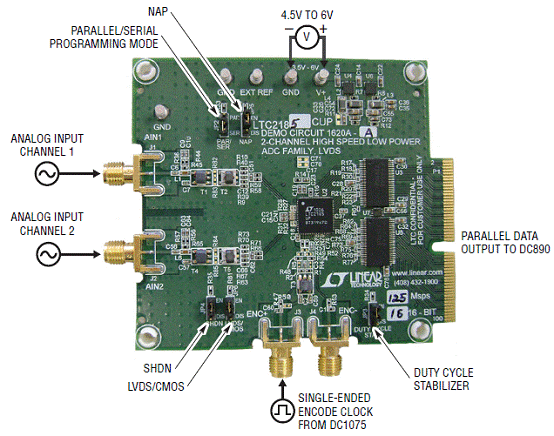

图7.1620A演示板外形图
图8.1620A演示板电路图(1)
图9.1620A演示板电路图(2)

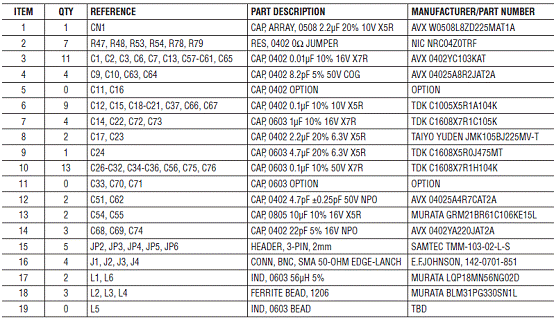

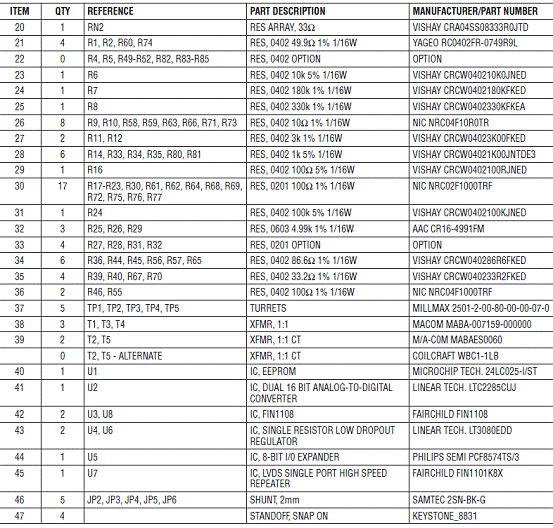

1620A演示板材料清单(BOM):
详情请见:
http://cds.linear.com/docs/Datasheet/21454314p.pdf

http://www.linear.com/demo/DC1620A-G
