Winmate ARM－11 HMI平板电脑解决方案
发布时间：2011-6-13 19:29
发布者：Liming
|
Winmate公司的ARM-11 HMI平板电脑解决方案是采用三星公司的6410系列SBC,工作频率为667MHz,是ARM-11系列平台,可采用5.7” VGA LED背光和7” WVGA LCD显示器,具有10/100Base-T以太网端口和WIFI 802.11 b/g,支持Windows CE6.0和Linux 2.6.2 OS,主要用于工业控制系统.本文介绍了ARM-11 HMI平板电脑解决方案性能指标和系统方框图. The ARM-11 HMI Series PPC model is compact platform without redundant functions,which have been designed for small-sized operator interface applications. They have 5.7” VGA LED backlight and 7” WVGA LCD display which is a cost effective choice for a limited budget. Its RISC kernel, the Samsung 6410 processor consumes minimum power without sacrificing performance. The ARM-11 HMI Series PPC has 10/100Base-T Ethernet port and WIFI 802.11 b/g(Optional) offering solid communication ability and comes bundled with a Windows CE and Linux 2.6.2 that supports Thin-Client solutions. The built-in Windows CE6.0 and Linux 2.6.2 OS platform lets ARM-11 HMI Series PPC become an Open HMI solution for system integration.

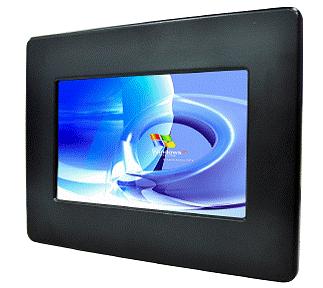

图1.ARM-11 HMI 系列PPC外形图 ARM-11 HMI 系列PPC主要特性: (1) Samsung-6410 Processor on board (2) 5.7” VGA(640 x 480) LCD(LED backlight) , 7” WVGA(800 x 480) LCD(CCFL backlight) (3) Super slim and compact design with metal housing (4) Fanless cooling system (5) EMA4/IP65 compliant front panel (6) Built-in NAND flash memory (7) One Standard SD card slot (8) RS232, RS422/485 and Ethernet for external communication. It can even browse web sites using the internal browser, which is useful for displaying diagnostic data or even remote control panels through a web interface. Depending on which ARM-11 HMI Series PPC features you choose to access, it can be used for anything from a user interface panel to the main controller for your automation equipment. ARM-11 HMI 系列PPC性能指标:

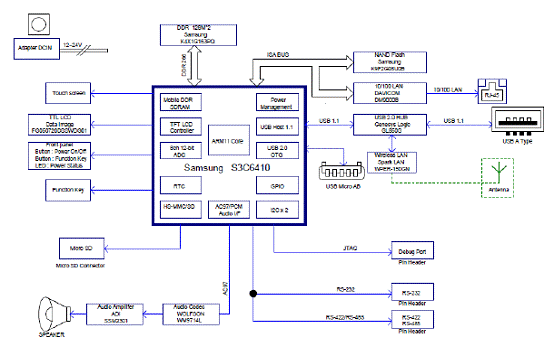

图2.ARM-11 HMI 系列PPC系统框图 详情请见: http://files.winmate.com.tw/$DownloadCenter/HMI/9152111I1103%20ARM-11%20HMI%20Series%20PPC%20User%20Guide%201%200.pdf |
