Lattice MachXO2控制开发方案

发布时间：2011-5-23 11:07 发布者：Liming

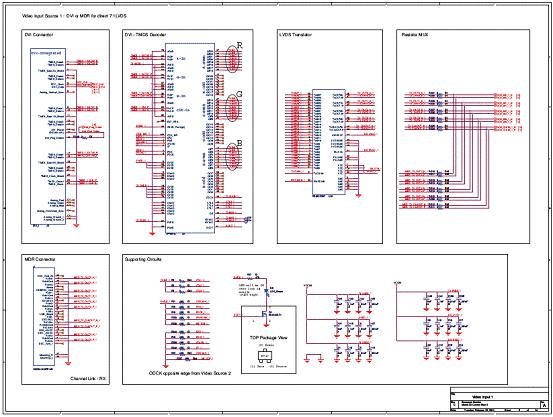

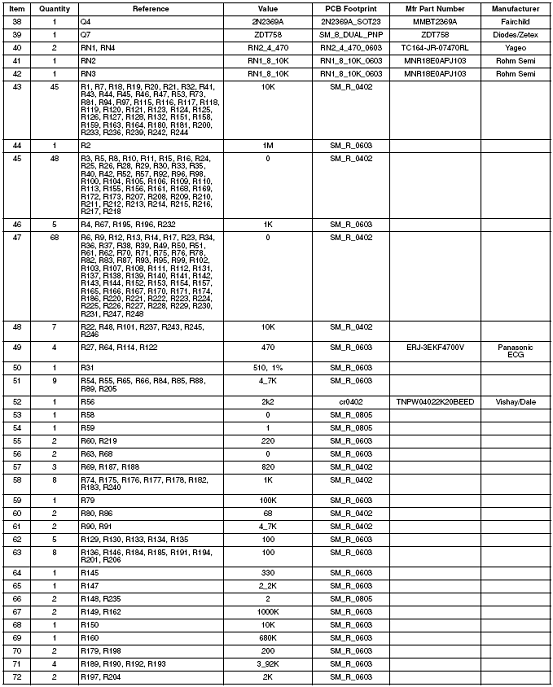

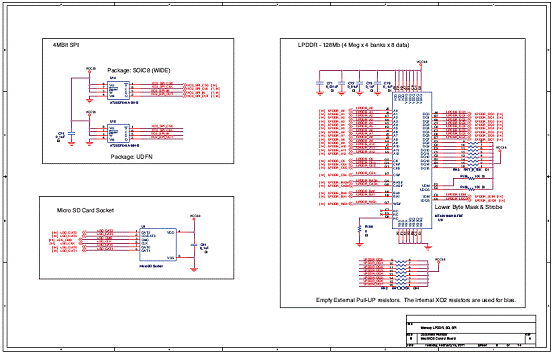

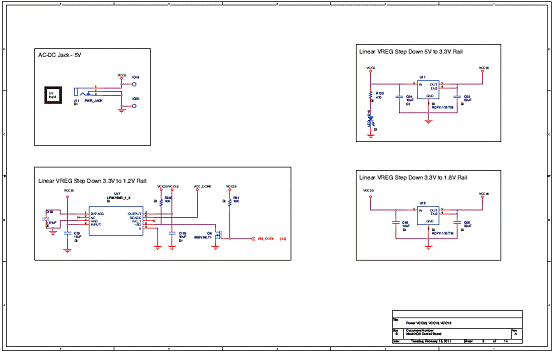

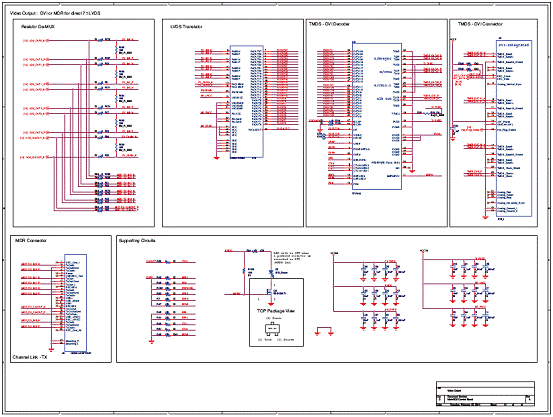

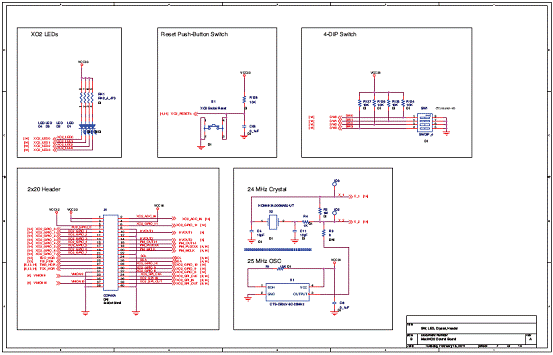

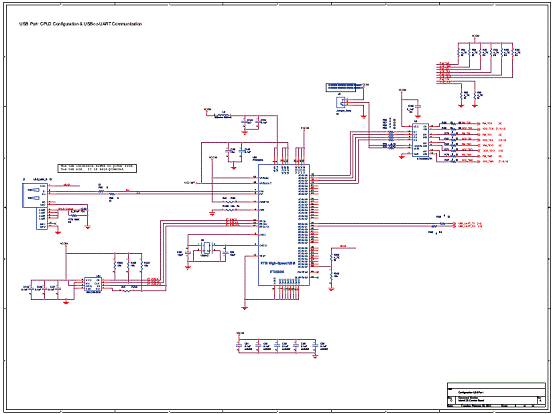

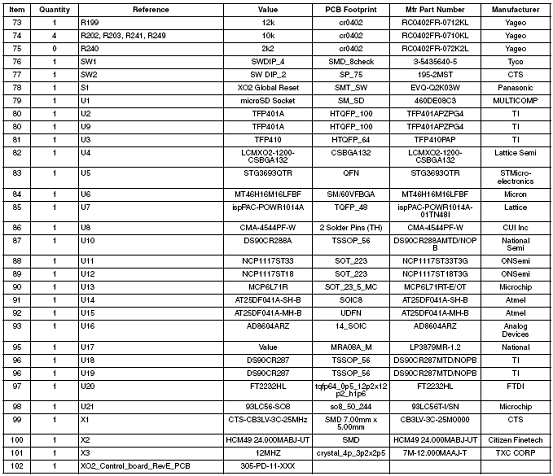

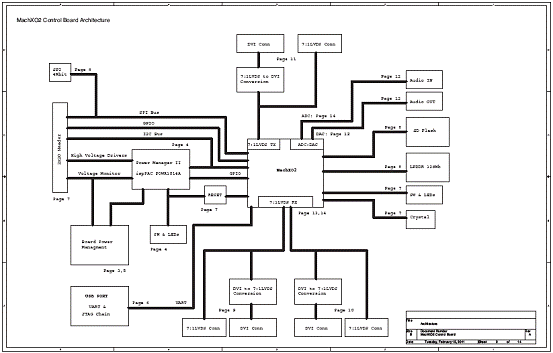

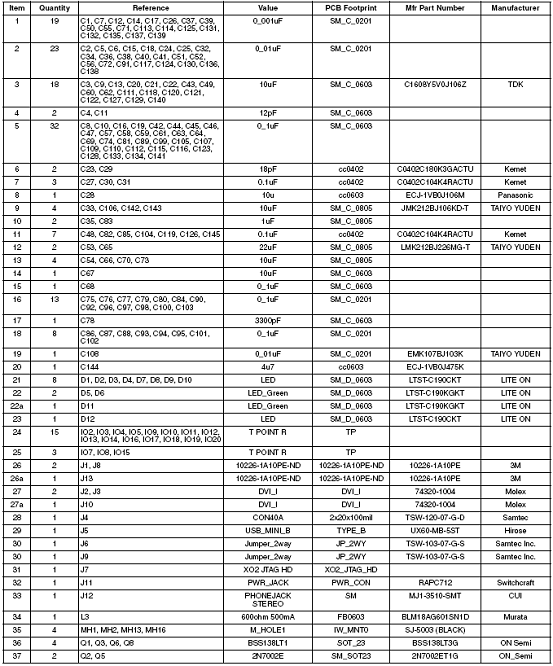

Lattice公司的MachXO2系列是高度可配置的可编程逻辑器件(PLD),具有低功耗,低成本和高系统集成等特性.和MachXO PLD相比, MachXO2系列逻辑密度增加3X,嵌入存储器增加10X,静态功耗降低100X,而成本降低30%,因此广泛用在系统应用如通信架构,计算,高端工业和高端医疗以及消费类电子如智能手机,数码相机,GPS设备,移动计算等,本文介绍了MachXO2控制开发板主要特性,方框图,电路图和材料清单.

The MachXO2 family of infinitely reconfigurable Programmable Logic Devices (PLDs) offers designers of low density PLDs an unprecedented mix of low cost, low power and high system integration in a single device. Combining an optimized look-up table (LUT) architecture with 65-nm embedded Flash process technology, the MachXO2 family delivers a 3X increase in logic density, a 10X increase in embedded memory, more than a 100X reduction in static power and up to 30% lower cost compared to the prior generation MachXO PLD family. In addition, the MachXO2 family includes hardened implementations of some of the most popular functions used in system applications (telecom infrastructure, computing, high end industrial, high end medical) and consumer applications (smart phones, GPS devices, mobile computing, digital cameras). These include User Flash Memory (UFM), I2C, SPI and timer/counter. Thus, through the provision of these features and capabilities, the MachXO2 family offers designers a "Do-it-All PLD" for low density applications.

The MachXO2 Control Development Kit provides a full featured development platform to prototype system control designs using MachXO2 PLDs. The kit features the MachXO2-1200HC device, a Power Manager II ispPAC-POWR1014A, 128Mbit LPDDR memory, 4Mbit SPI Flash and a microSD card socket.

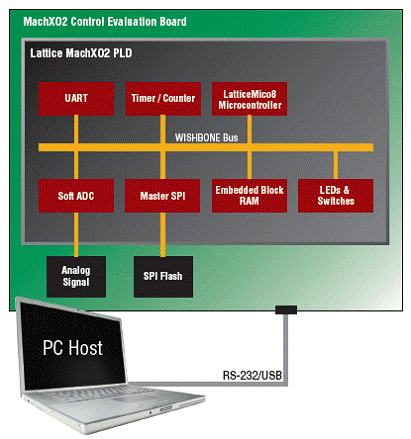

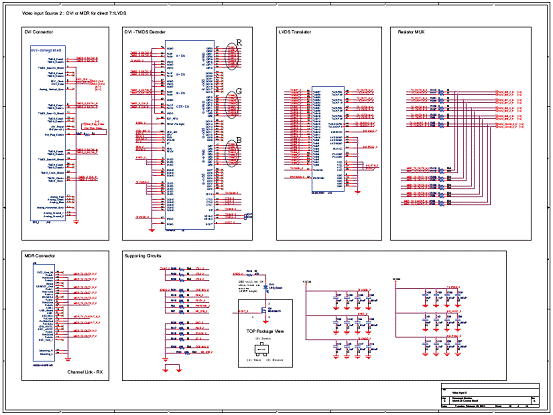

Using the preloaded Control system-on-chip (SoC) design you can test within minutes board control functions such as power supply sequencing, reset distribution, power supply monitoring and data logging using the Power Manager II POWR1014A and 8-bit LatticeMico8™ microcontroller. Other downloadable demonstration examples for the MachXO2 Control Development Kit includes a Display Interface design. You can then build your own designs using the free downloadable reference design source code, implementing these features in less than an hour.

The board features USB channels for JTAG programming and debugging from a host PC. A 16x2 header provides access to a variety of I/O banks of the MachXO2 device and the on-board SPI and I2C buses. The board can be controlled with a menu driven interface via terminal programs running on a host PC.

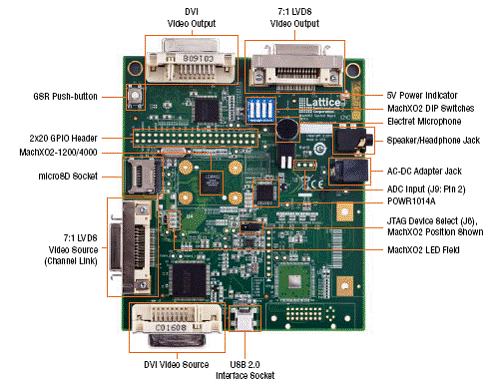

MachXO2控制开发板主要特性:

MachXO2 PLD: LCMXO2-1200HC-MG132CR1

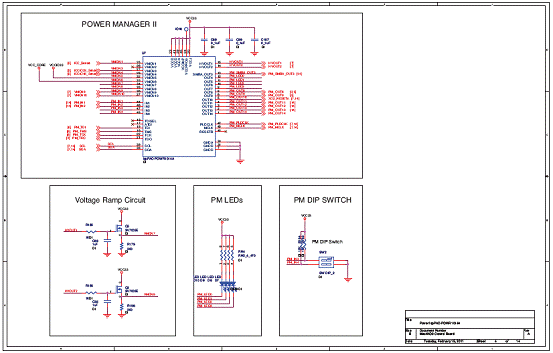

Power Manager II ispPAC-POWR1014A

128Mbit LPDDR Memory

4Mbit SPI Flash

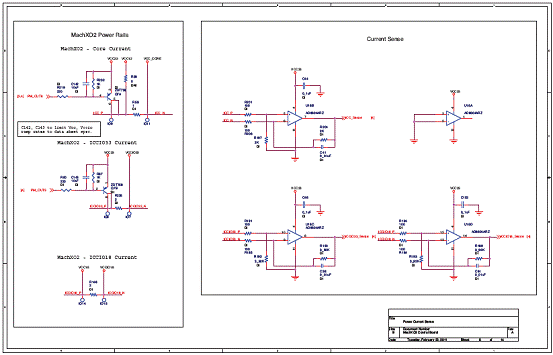

Current and Voltage Sensor Circuits

microSD Memory Card Socket

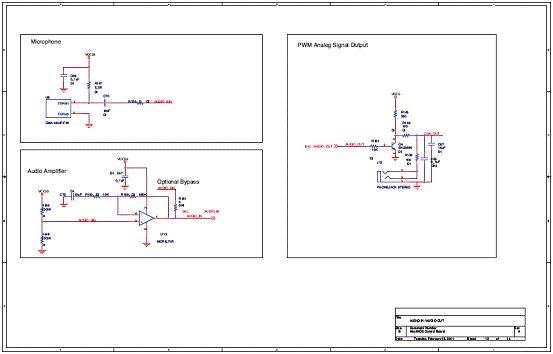

Audio Output Channel

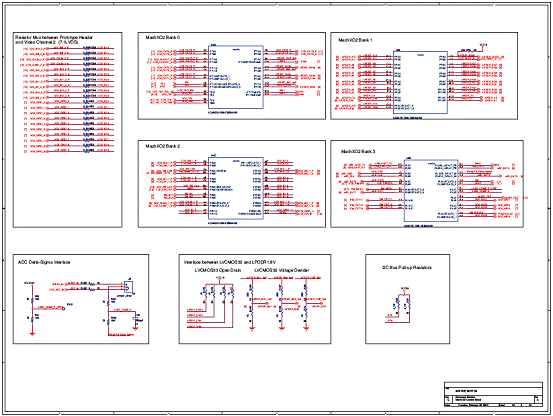

Expansion Header for JTAG, SPI, I2C and PLD I/Os

LEDs & Switches

RS-232/USB Interface

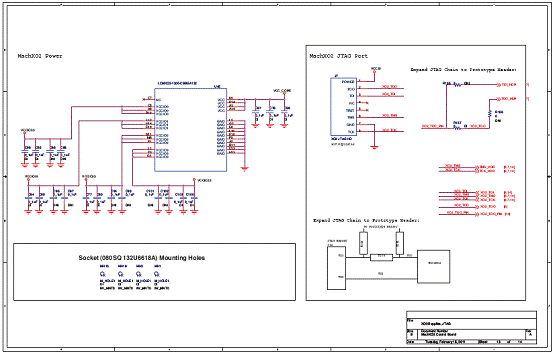

JTAG Interface

SPI Interface

I2C Interface

Programmed via Standard USB Cable

QuickSTART Guide

Marked for CE, China RoHS Environment-Friendly Use Period (EFUP) and Waste Electrical and Electronic Equipment (WEEE) Directives
