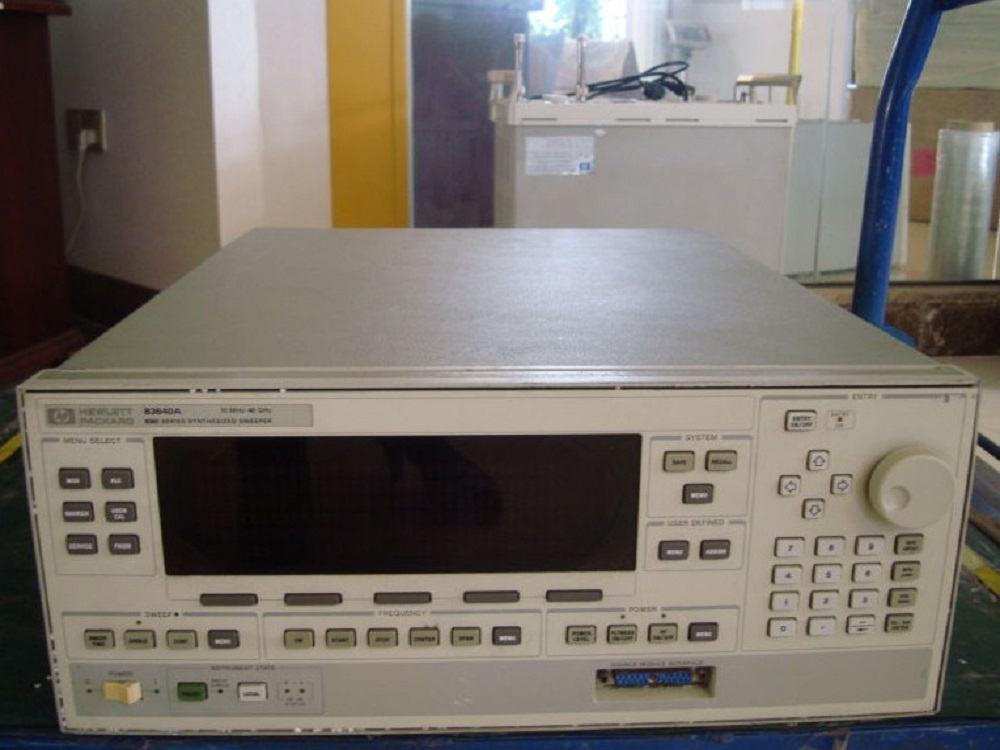

Agilent83640A 40G HP83640A高频信号发生器

HP83640A HP 83640A仪器发生器

Agilent / HP 83640A 高频信号发生器,频率带宽10 MHz to 40 GHz
HP 83640A高频信号发生器调频：AM, FM, Pu，最大调频偏差：+/- 8 MHz!Agilent / HP 83640A提供优秀的谐波性能,至少50dB谐波下26.5GHz 2.0 ~承运人,至少40dB低于载体26.5GHz以上。HP83640A信号发生器提供优秀的谐波性能与谐波至少50分贝以下承运人从2.0 ~ 2650千兆赫,和至少40个分贝以下载体265千兆赫以上。

Agilent / HP 83640A选件说明:

·83640A 001增加步骤衰减器

·83640A 002内部调制发电机

HP83640A合成的清扫者是标准的卓越的程序需要高性能的准确性与综合源和速度和多用途性扫描振子。合成的宽带频率范围和精确的1赫兹的频率分辨率(选择)产生于密探008里的间接合成、使安捷伦HP83640A高频信号发生器single-sideband达到低相位噪声性能。

描述

The Agilent 83640A synthesized sweeper is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83640A to achieve low single-sideband phase noise performance. It delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 26.5 GHz, and at least 40 dB below the carrier above 26.5 GHz.

· Scan modulation to simulate antenna scan patterns

· Accurate fixed and swept frequency offset for two-tone measurement

· User flatness correction for leveling at remote points in the test system

· General purpose source for use in component test, receiver test and for frequency conversion

· Frequency range: 10 MHz to 40 GHz

· Sweep modes: Step, List, Ramp

· Maximum power: < 26.5 GHz: +10 dBm

· Maximum power: > 26.5 GHz: +6.0 dBm

· Power sweep range: -20 dBm to maximum power

· Phase noise (38 GHz at 10 KHz): -70 dBc

· Max FM deviation (locked): +/- 8 MHz
