基于msp430单片机1602 DS1802温度显示
发布时间:2016-9-13 11:21
发布者:designapp

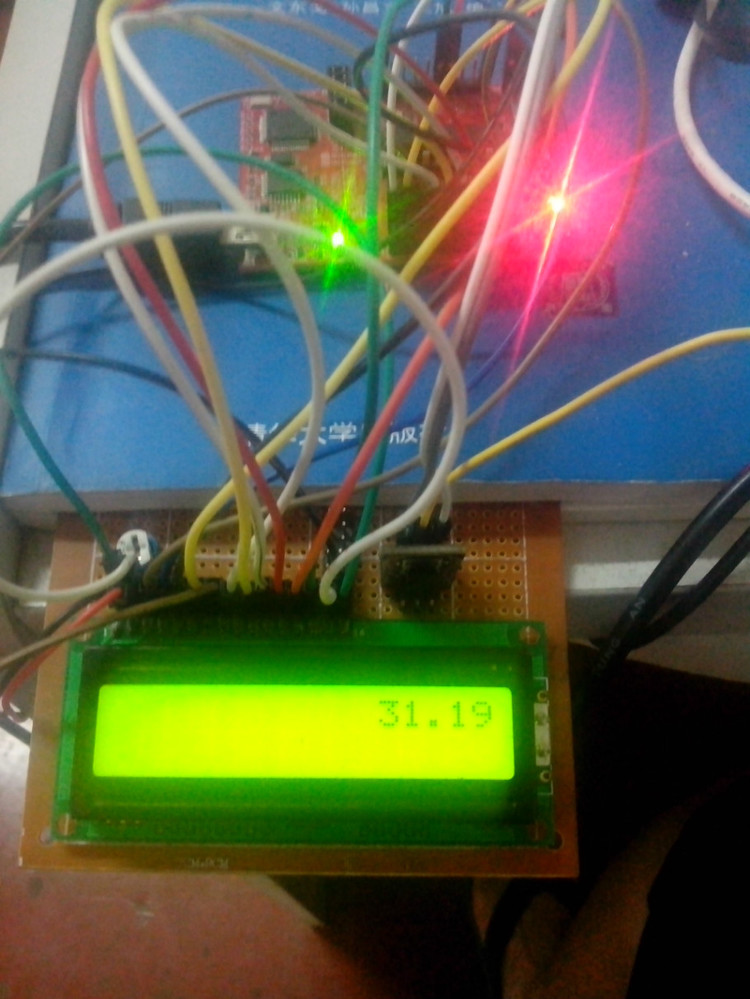

最近调好了DS1802温度传感器,用的是430G2553单片机,温度保留两位小数。把源代码分享给大家。 /***************************************** msp430g2553实现1602温度显示 来源:汪中原的博客 ******************************************/ #include #define uchar unsigned char #define uint unsigned int #define CPU_F ((double)1000000) #define delay_us(x) __delay_cycles((long)(CPU_F*(double)x/1000000.0)) //延时x us #define ds_1 P2OUT |=BIT3 //DS18B20数据端高电平输入(P2.3端口) #define ds_0 P2OUT &=~BIT3 //DS18B20数据端低电平输入(P2.3端口) #define lcdrs_1 P2OUT |=BIT1; //1602 RS写数据(P2.1端口) #define lcdrs_0 P2OUT &=~BIT1; //1602 RS写指令(P2.1端口) #define lcden_1 P2OUT |=BIT0; //1602使能信号开(P2.0端口) #define lcden_0 P2OUT &=~BIT0; //1602使能信号关(P2.0端口) uchar table[]="wzy,come on"; //开机第一行显示 uchar table1[]="believe yourself"; //开机第二行显示 uint temp,T; float temp_f; uchar shi,ge,dian1,dian2,num; //定义温度十位、各位、小数点后一位、后二位 /************************************************************* * 名 称:void init(void) * 功 能:1602显示配置端口初始化 * 入口参数:无 * 出口参数:无 * 说 明: P1、P2端口设为输出低电平 *************************************************************/ void init(void) { WDTCTL=WDTPW + WDTHOLD; P1DIR=0xff; P2DIR=0x1f; P1OUT=0x00; P2OUT=0x00; } /************************************************************* * 名 称:void delay(uint a) * 功 能:简单的延时 * 入口参数:uint a * 出口参数:无 * 说 明: 可作为1602显示简单的延时 *************************************************************/ void delay(uint a) { uint i,j; for(i=a;i>0;i--) for(j=110;j>0;j--); } /************************************************************* * 名 称:void write_date(uchar date) * 功 能:1602写数据 * 入口参数:date * 出口参数:无 * 说 明: 用P1口输入数据 *************************************************************/ void write_date(uchar date) { lcdrs_1; P1OUT=date; delay(5); lcden_1; delay(5); lcden_0; } /************************************************************* * 名 称:void write_com(uchar com) * 功 能:1602写指令 * 入口参数:com * 出口参数:无 * 说 明: 用P1口输入指令 *************************************************************/ void write_com(uchar com) { lcdrs_0; P1OUT=com; delay(5); lcden_1; delay(5); lcden_0; } /************************************************************* * 名 称:void uinit() * 功 能:初始化及其他显示设置指令 * 入口参数:无 * 出口参数:无 * 说 明: 1602初始化设置 *************************************************************/ void uinit() { lcden_0; write_com(0x38); write_com(0x0c); write_com(0x06); write_com(0x01); } /************************************************************* * 名 称:void LCD_display() * 功 能:1602显示 * 入口参数:无 * 出口参数:无 * 说 明: 将前几个函数综合起来,显示字符内容及区域 *************************************************************/ void LCD_display() { init(); uinit(); write_com(0x80); for(num=0;num>= 1; ds_0; delay_us(6); ds_1; delay_us(8); P2DIR &= ~BIT3; _NOP(); if(P2IN & BIT3) temp |= 0x80; delay_us(45); P2DIR |=BIT3; ds_1; delay_us(10); } return temp; } /************************************************************* * 名 称:void write_temp(uchar data) * 功 能:DS18B20写入数据 * 入口参数:data * 出口参数:无 * 说 明: 写入一个字节 *************************************************************/ void write_temp(uchar data) { uchar i; for(i = 0; i >= 1; ds_1; delay_us(10); } } /************************************************************* * 名 称:void temp_change(void) * 功 能:DS18B20温度转化指令 * 入口参数:无 * 出口参数:无 * 说 明: 跳过rom并温度转化 *************************************************************/ void temp_change(void) { write_temp(0xcc); write_temp(0x44); } /************************************************************* * 名 称:uint temp_get() * 功 能:DS18B20温度获取 * 入口参数:无 * 出口参数:T * 说 明: 获取温度并四舍五入为保留两位小数 *************************************************************/ uint temp_get() { uchar a,b; DS18B20_init(); delay(1); write_temp(0xcc); write_temp(0xbe); a=read_temp(); //读低8位 b=read_temp(); //读高8位 T=b; T 0;a--) delay_us(60000); do { a = DS18B20_init(); } while(a); dis_temp(temp_get()); init(); uinit(); write_com(0x80+0x0b); write_date('0'+shi); delay(5); write_date('0'+ge); delay(5); write_date('.'); delay(5); write_date('0'+dian1); delay(5); write_date('0'+dian2); delay(5); } } 效果图:上面的数字即为当前温度 |
