Avnet DVI I/O FMC模块数字视频接口解决方案
发布时间：2012-9-11 00:39
发布者：1770309616
|
Avnet公司的DVI I/O FMC模块提供数字视频接口,直接连接到Xilinx® Spartan®-6或 Virtex®-6 FMC使能的基板,数字DVI视频源为模块提供视频内容,而模块提供数字DVI和DisplayPort输出,用来显示FPGA驱动的视频内容.本文介绍了DVI I/O FMC模块主要特性,框图,DVI输入和输出框图,DisplayPort输出框图,以及模块电路图和材料清单(BOM). This FMC module provides a direct interface to digital video to Xilinx® Spartan®-6 or Virtex®-6 FMC-enabled baseboards. A digital DVI video source can provide video content to the module. The module also provides digital DVI and DisplayPort outputs to display FPGA driven video content. The DVI I/O FMC Module is not a stand-alone module, but rather a plug-in module designed to interface with FMC compatible baseboards. In that role, the DVI I/O FMC Module provides a number of video interfaces to its host via a LPC FMC connector. The DVI I/O FMC Module is a low pin count (LPC) FMC module containing interfaces intended for video processing. This module contains no processing intelligence and requires that it be plugged into a compatible baseboard for power, control and data processing. DVI I/O FMC模块主要特性: Video Input — DVI input interface (HDMI connector) Video Output — DVI output interface (HDMI connector) — DisplayPort output interface Clock Source — Video clock synthesizer I2C Configuration — IPMI Identification EEPROM — Peripheral configuration Other I/O — General-purpose I/O pins

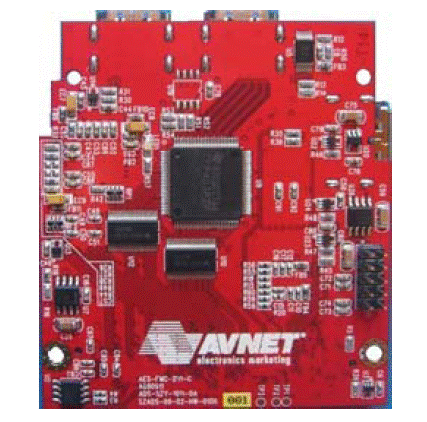

图1.DVI I/O FMC模块外形图

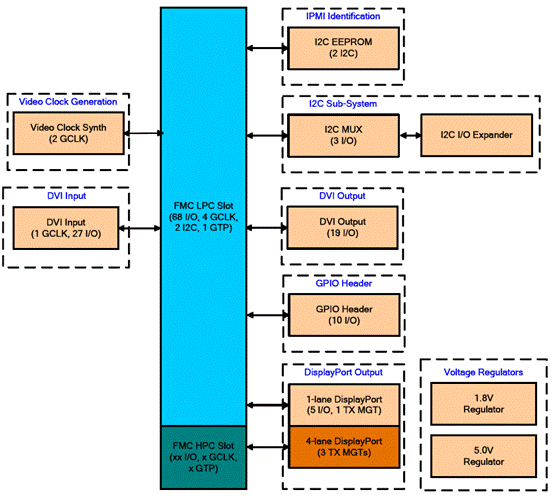

图2.DVI I/O FMC模块框图

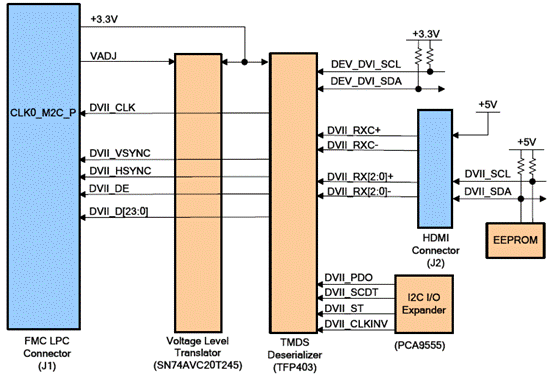

图3.DVI I/O FMC模块DVI输入框图

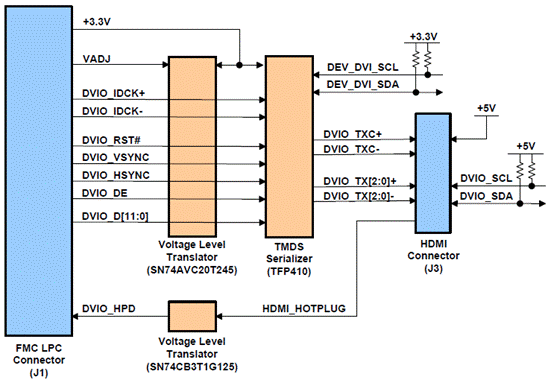

图4.DVI I/O FMC模块DVI输出框图

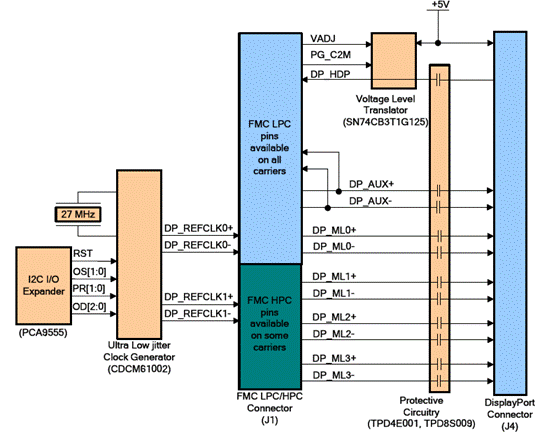

图5.DVI I/O FMC模块DisplayPort输出框图

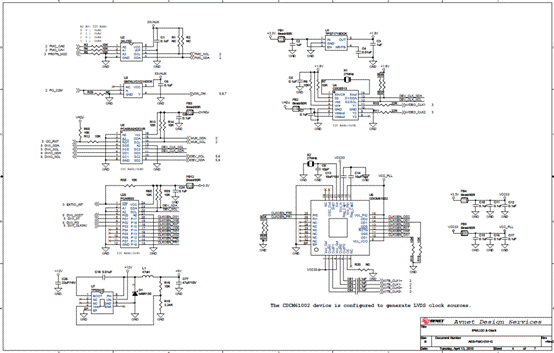

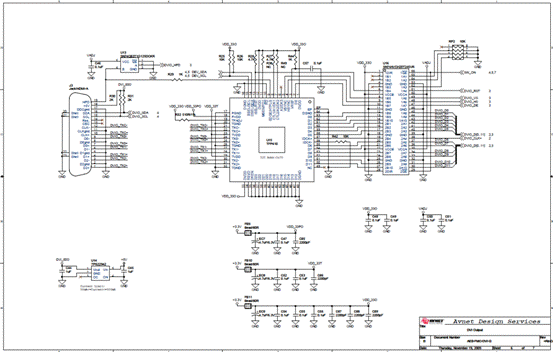

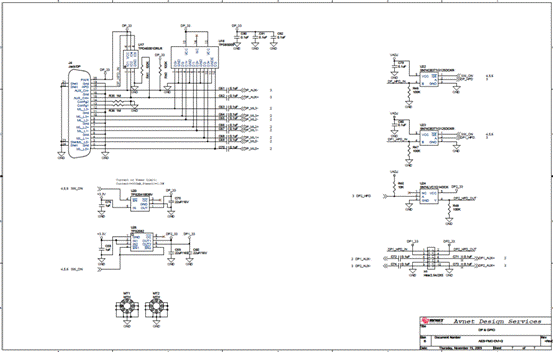

图6.DVI I/O FMC模块电路图(1)
图7.DVI I/O FMC模块电路图(2)
图8.DVI I/O FMC模块电路图(3)
图9.DVI I/O FMC模块电路图(4)
图10.DVI I/O FMC模块电路图(5)

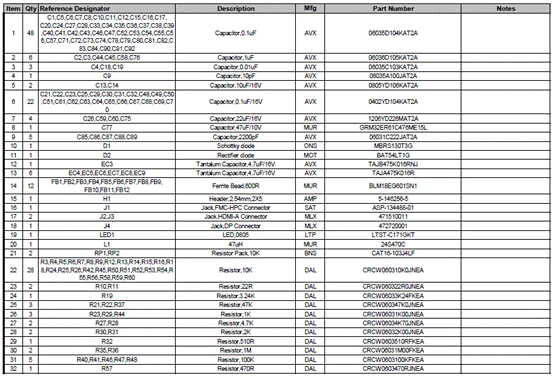

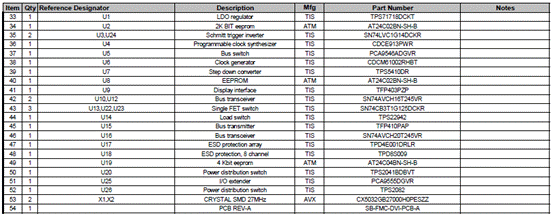

图11.DVI I/O FMC模块电路图(6) DVI I/O FMC模块材料清单(BOM):
https://www.em.avnet.com/Support%20And%20Downloads/AES-FMC-DVI-G-01_HG.pdf 和 https://www.em.avnet.com/Support%20And%20Downloads/AES-FMC-DVI-G-01-SCH_041310.pdf 来源:网络 |
