ST STEVAL－ISV001V1 1kW逆变器解决方案
发布时间：2012-8-14 10:45
发布者：1770309616
|
ST公司的STEVAL-ISV001V1评估板是采用STP160N75F3的1kW逆变器(DC/AC转换器),DC输入电压从表面上20V到28V,输出电压230Vrms 59Hz,输出功率达1000W,效率高达90%,主要用在UPS和光伏(PV)系统.本文介绍了DC/AC转换器系统框图,在PV系统应用框图,STEVAL-ISV001V1系统指标,电路图和材料清单以及所用变压器与电感技术指标,PCB布局图. 1000 W dual stage DC-AC converter demonstration board based on the STP160N75F3 This application note provides design guidelines and performance characterization of the STEVAL-ISV001V1 demonstration board. This board implements a 1 kW dual stage DC-AC converter, suitable for use in batterypowered uninterruptible power supplies (UPS) or photovoltaic (PV) standalone systems. The converter is fed by a low DC input voltage varying from 20 V to 28 V, and is capable of supplying up to 1 kW of output power on a single-phase AC load. These features are possible thanks to a dual stage conversion topology that includes an efficient step-up pushpull DC-DC converter, which produces a regulated high-voltage DC bus and a sinusoidal HBridge PWM inverter to generate a 50 Hz, 230 Vrms output sine wave. Other key features of the system proposed are high power density, high switching frequency and efficiency greater than 90% over a wide output load range

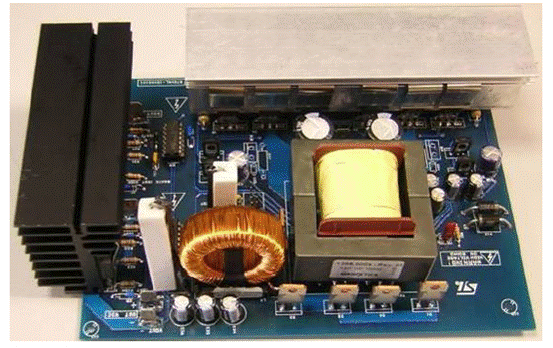

图1.1 kW DC-AC转换器外形图

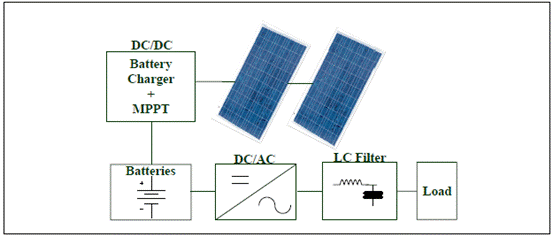

图2.DC-AC转换器在光伏转换中的应用框图

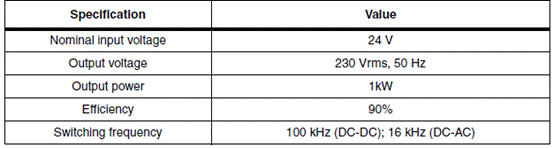

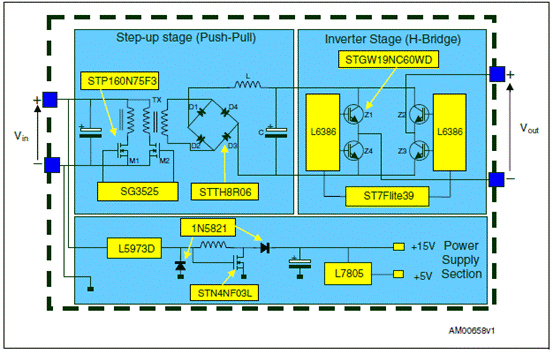

图3.DC/AC转换器系统框图 STEVAL-ISV001V1系统指标:

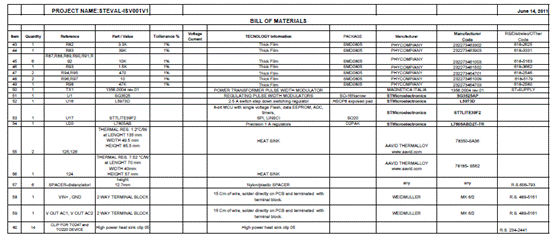

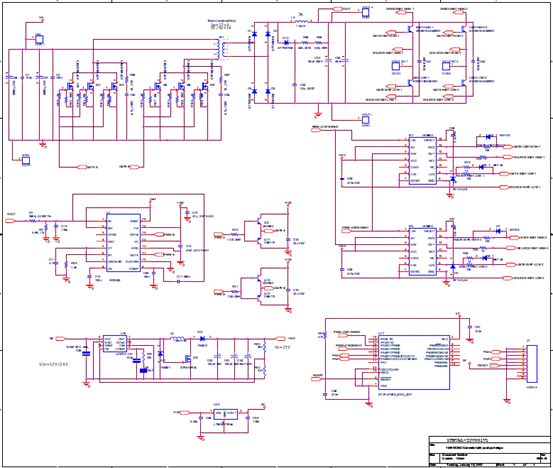

图4.STEVAL-ISV001V1电路图 STEVAL-ISV001V1材料清单:

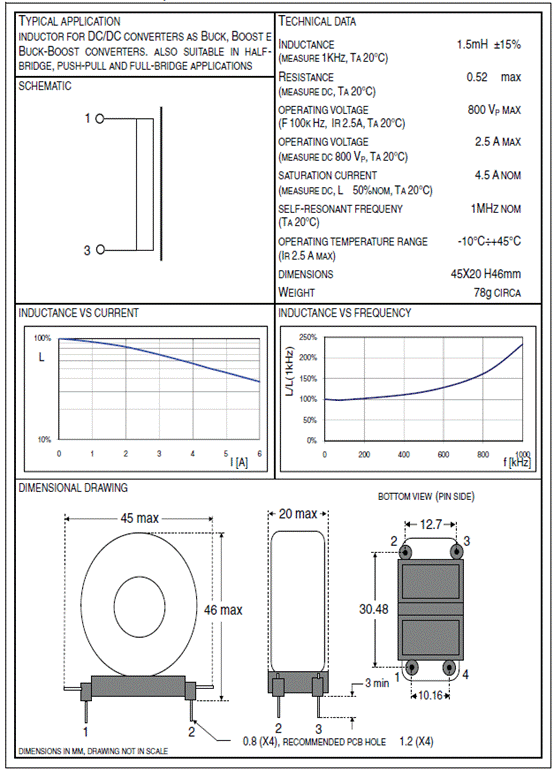

1.5 mH 2.5 A电感L4技术指标(MAGNETICA制造)
1kW 100kHz开关电源变压器TX1技术指标(MAGNETICA制造)

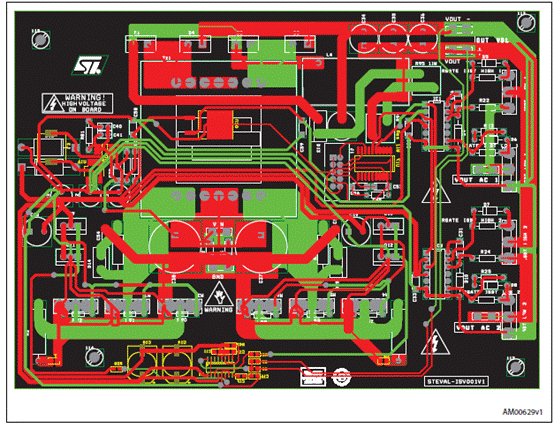

图5.STEVAL-ISV001V1元件布局图 详情请见:
CD00201961.pdf
(3.05 MB)
