Silicon Labs Si4463 EZRadioPRO智能电网应用参考设计

发布时间:2012-8-14 10:38    发布者:1770309616
关键词: Silicon , Labs , Si4463 , EZRadioPRO , 智能电网
Silicon Labs公司的Si446x系列是高性能低电流的119 -1050 MHz收发器,是EZRadioPRO®系列中一员,包括完整的发送器和接收器.灵敏度为-126dBm,Si4464的工作频率119–960 MHz,最大输出功率+20dBm,PA支持+27dBm或+30dBm,采用(G)FSK, 4(G)FSK, (G)MSK,OOK和ASK调制,数据速率从表面上100bps到1Mbps,工作电压1.8V-3.6V,关断电流30nA,待机电流50nA,主要用在智能电表(802.15.4g & MBus),遥控,家庭安全和告警,车库和大门开启,遥测,家庭自动化,传感器网络,健康监视等.本文介绍了Si446x主要特性,方框图,Silicon Labs和RFMD公司合作的智能电网应用参考设计,以及4463-TCE30E915R-EK RF测试卡电路图,材料清单和PCB布局图.

Silicon Laboratories’Si446x devices are high-performance, low-current transceivers covering the sub-GHz frequency bands from 119 to 1050 MHz. The radios are part of the EZRadioPRO® family, which includes a complete line of transmitters, receivers, and transceivers covering a wide range of applications. All parts offer outstanding sensitivity of –126 dBm while achieving extremely low active and standby current consumption. The Si4464 offers continuous frequency coverage across the entire sub-GHz band from 119–960 MHz with extremely fine frequency resolution. The Si4463 includes optimal phase noise, blocking, and selectivity performance for narrow band and licensed band applications, such as FCC Part90 and 169 MHz wireless Mbus. The 60 dB adjacent channel selectivity with 12.5 kHz channel spacing ensures robust receive operation in harsh RF conditions, which is particularly important for narrowband operation. The Si4464/63 offers exceptional output power of up to +20 dBm with outstanding TX efficiency. The high output power and sensitivity results in an industry-leading link budget of 146 dB allowing extended ranges and highly robust communication links. The Si4460 active mode TX current consumption of 18 mA at +11 dBm and RX current of 10 mA coupled with extremely low standby current and fast wake times ensure extended battery life in the most demanding applications. The Si4464/63 can achieve up to +27 dBm output power with built-in ramping control of a low-cost external FET. The devices are compliant with all worldwide regulatory standards: FCC, ETSI, and ARIB. All devices are designed to be compliant with 802.15.4g and WMbus smart metering Standards.

Si446x主要特性:

 Frequency range = 119–1050 MHz

 Receive sensitivity = –126 dBm

 Modulation

(G)FSK, 4(G)FSK, (G)MSK

OOK and ASK

 Max output power

+20 dBm (Si4464/63)

+16 dBm (Si4461)

+13 dBm (Si4460)

 PA support for +27 or +30 dBm

 Low active power consumption

10/13 mA RX

18mA TX at +10 dBm (Si4460)

Ultra low current powerdown modes

 30 nA shutdown, 50 nA standby

 Data rate = 100 bps to 1 Mbps

 Fast wake and hop times

 Power supply = 1.8 to 3.6 V

 Excellent selectivity performance

 60 dB adjacent channel

 75 dB blocking at 1 MHz

 Antenna diversity and T/R switch control

 Highly configurable packet handler

 TX and RX 64 byte FIFOs

 Auto frequency control (AFC)

 Automatic gain control (AGC)

 Low BOM

 Low battery detector

 Temperature sensor

 20-Pin QFN package

 IEEE 802.15.4g compliant

 FCC Part 90 Mask D, FCC part 15.247, 15,231, 15,249, ARIB T-108, T-96, T-67,RCR STD-30, China regulatory

 ETSI Class-I Operation with SAW

Si446x应用:

 Smart metering (802.15.4g & MBus)

 Remote control

 Home security and alarm

 Telemetry

 Garage and gate openers

 Remote keyless entry

 Home automation

 Industrial control

 Sensor networks

 Health monitors

 Electronic shelf labels

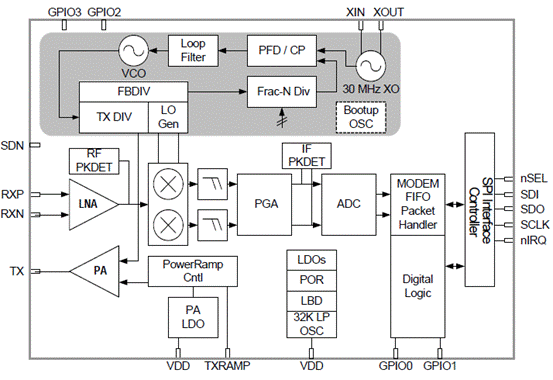

图1.Si446x系列方框图

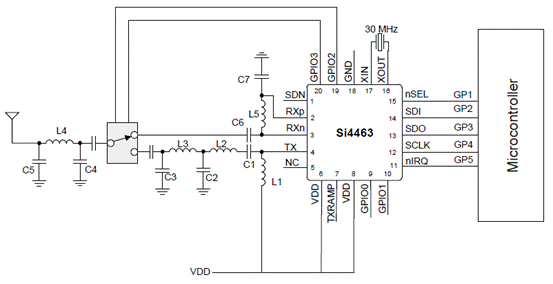

图2.Si4463单天线和RF开关应用电路

Silicon Labs和RFMD公司的智能电网应用参考设计

图3.4463-TCE30E915R-EK RF测试卡外形图

Silicon Labs and RFMD have collaborated to jointly produce a reference design that features the Silicon labs EZRadioPRO Si4464/63 sub GHz ISM band radio transceivers and the RFMD® RF6569 front end module (FEM) optimized for smart grid automatic meter reading (AMR) applications that want to economically boost output power to +30 dBm.

The 4463-TCE30E915R-EK RF test card features the EZRadioPRO Si4463 transceiver operating at 915 MHz and utilizes the RFMD RF6569 FEM which includes an integrated PA, TX harmonic filtering, SPDT switch and RX balun.

Following the reference design, a customer can successfully complete a design based upon both the EZRadioPRO Si4464 or Si4463 transceiver and the RFMD RF6569 FEM operating in the 868 MHz or 902 to 928 MHz ISM bands.

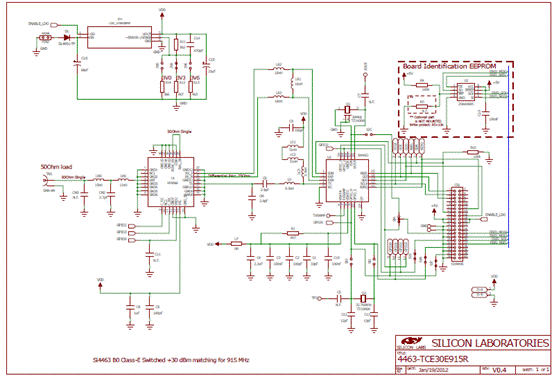

图4.4463-TCE30E915R-EK电路图

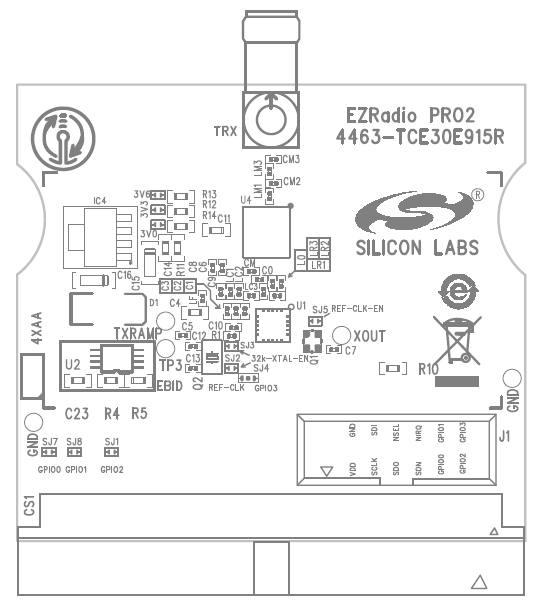

图5.4463-TCE30E915R-EK PCB元件布局图

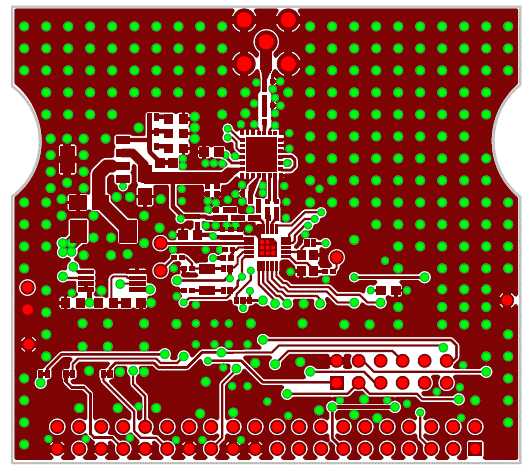

图6.4463-TCE30E915R-EK PCB布局图(顶层)

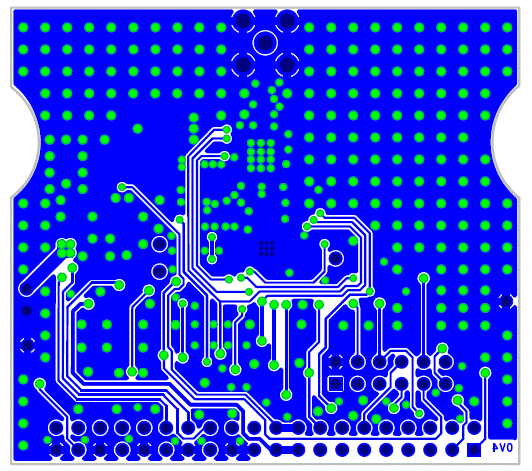

图7.4463-TCE30E915R-EK PCB布局图(底层)

4463-TCE30E915R-EK材料清单见:

详情请见:
Si4464-63-61-60.pdf (499.72 KB)

来源:网络
