Austriamicrosystems AS3610 USB兼容锂电池充电解决方案
发布时间：2012-1-27 08:57
发布者：1770309616
|
Austriamicrosystems公司的AS3610/11是USB兼容的降压锂电池充电器,1.25A 3MHz DC/DC充电器,100/500mA USB电流限制,其它电流限制900A,可通过OTP ROM编程.充电器还能产生用于USB OTG的5.05V输出电压,22V过压保护,主要用在手机和手持设备的单个锂电池充电器.本文介绍了AS3610/11主要特性,方框图, USB检测框图以及AS3610-DB演示板电路图和PCB布局图. AS3610/11: USB Compliant Step Down Charger for Li -Ion Portable Devices The AS3610/11 is a highly integrated standalone or optional I2C controlled step down charger. All supervision and regulation functions are realized internal and independent from the processor. The 100/500mA USB current limit can be set via a dedicated control pin. Other limits like 900mA can be programmed in the OTP ROM. In addition, the Charger can generate a 5.05V output supply at VBUS for USB OTG. AS3610 features an I2C interface which can be used by a microcontroller to fully control all functionality of the chip. Charging current and EOC current can be set with external resistors and adjusted via register settings if needed. AS3611 is a stand-alone version of this charger IC. Charging and EOC current is set by resistor only. Functions like OTG boost mode or max current limit for wall adapter mode can be enabled using dedicated pins. AS3610/11主要特性: DCDC USB Charger 1.25A, 3MHz DCDC Charger OTG Boost with low IQ (700;A) up to 500mA 22V over voltage protection Seamless 100% Mode Reverse Polarity protection on VBUS NTC support Low side LED driver No external shunt resistor required “No Battery” operation without voltage drop package: MLPD14 3x3mm The AS3610/11 device serves as a standalone battery charge controller supporting rechargeable Lithium Ion (Li+) batteries. Requiring only a few external components, a full-featured battery charger with a high degree of flexibility can easily be realized. The main features of the controller are: Charge adapter detection Internal voltage regulator Low current (soft) charging Low current (trickle) charging Constant current charging Constant voltage charging 22V input overvoltage protection Battery presence indication Operation without battery Input current limitation Input voltage drop regulation AS3610/11应用: The device is ideal as 1 Cell Li+ charger for mobile phones and portable devices.

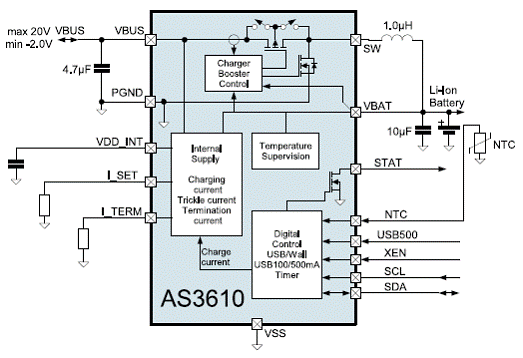

图1.AS3610方框图
图2.AS3611方框图

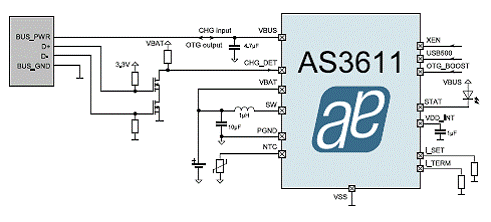

图3.AS3611 USB检测框图 AS3610-DB演示板 The AS3610-DB demoboard allows you to easily evaluate the principle functionality of the AS3610 battery charger. All settings can be done either direct on the board or via the included GUI software.
图4.AS3610-DB演示板外形图

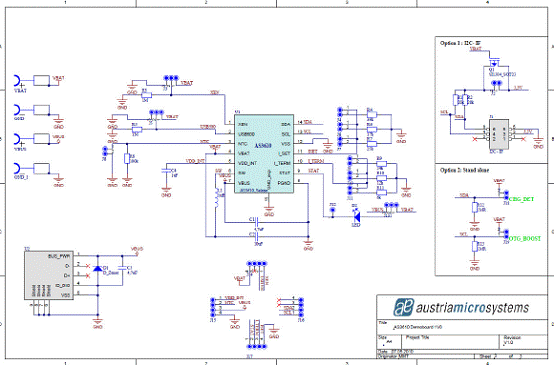

图5.AS3610-DB演示板电路图

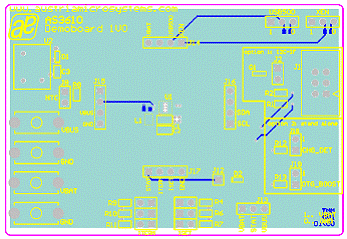

图6.AS3610-DB演示板PCB布局图:上:顶层,下:底层 详情请见: http://www.austriamicrosystems.com/content/download/186083/835337/103595 |
