【稳定方案】龙迅LT8918L功能LVDS转MIPI芯片简介

发布时间：2022-7-14 18:00 发布者：WX18312533639

龙迅LT8918L是一颗可以实现LVDS转MIPI CSI/DSI的视频转换芯片

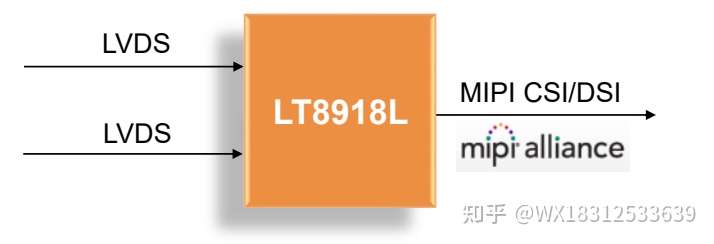

芯片功能框架图如下：

LT8918L can be configured as single-port or dual-port with optional De-SSC function. The bridge deserializes input

LVDS data, decodes packets and converts the formatted video data stream to MIPIDSI/CSI-2 transmitter output.

For MIPI DSI/CSI-2 output, LT8918L features a single port MIPI DSI or CSI-2 transmitter with 1 high-speed clock lane and

1~4 configurable high-speed data lanes operating at maximum 1.5Gb/s/lane, which can support a total bandwidth of up to

6Gb/s. LT8918L supports both Non-Burst and Burst DSI video data transferring, as well as Command Mode through

Lane-0.

The LT8918L is fabricated in advanced CMOS process and implemented in a small outline 7.5mm x 7.5mm QFN64

package. This package is RoHS compliant and specified to operate from -40°C to +85°C.

完整的详细设计资料可联系，专业FAE团队现场技术支持，免费提供样品验证
