QCN9074/QCN9024/QCN9072/QCA9882/QCA9880/QCN6024/QCA9531 AX200NGW/IPQ6010/IPQ6018/IPQ6000/IPQ8072/IPQ5018/IPQ8074/IPQ8072A/IPQ4029/IPQ4019/AR9344/AR9342 1. Feature * External type dipole antenna * 2.4GHz/5GHz of frequency * SMA Pluginterface * Plastic rod of black * RoHS compliance 2. Application * 2.4GHz/5GHz Wireless Communication * WLAN device, WLAN Router, e.g., AP, PIC Wireless Card 3. Description This miniature antenna is designed for 2.4GHz/5GHz applications and can be easily built-in portable devices with MHF processes. It has excellent stability and sensitivity to consistently provide high signal reception efficiency.
Product Name
|

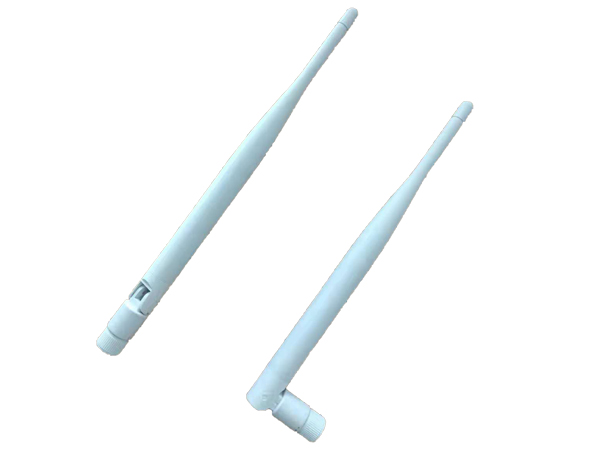

5dBi Dual band Dipole Antenna
| Part No.
| DRA2G5G5D001
| Frequency
| 2.4~2.5GHz&5.15~5.85GHz
| V.S.W.R
| <2.0
| Gain (dBi)
| | Polarization
| | Storage Temp
| -10°C 〜+70°C
| Operating Temperature
| -10°C 〜+60°C
| Impedance with Matching
| 50Q
| Weight
| 21.5 g
| Antenna Type
| SMAPLUG
| Dimension
|
L195X φ 13 (mm)
|
Wallys Communications (Suzhou) Co LTD develops, designs and manufactures wireless communication products, including routers, network cards, AP and antennas. Customization is also supported, The market is global, We're a supplier to Facebook. welcome to consult. (Web:wallystech com) EMAIL:sales@wallystech.com WEB:https://www.wallystech.com/
|
