1 x M.2 Card,QCN9074,AX200NGW,IPQ6018-wallys

wallyswifi

1 x M.2 Card,QCN9074,AX200NGW,IPQ6018-wallys

Features
Support 1 pcs M.2 card
Support AX200NGW
SupportDR9074-6E
RoHS compliance ensure a high level protection of human health and the
environment from risks that can be posed by chemicals

Product Description

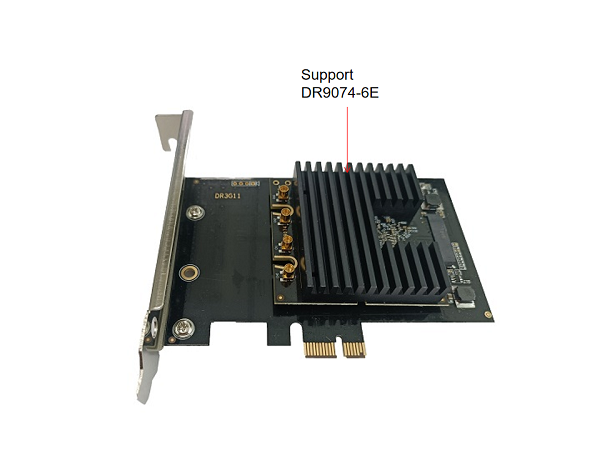

DR3G11 is an adapter card with one  M.2 slot. It can be used in a PC with a PCIe slot. Use this new adapter to expand your connectivity and upgrade your device to use the latest  m.2 interface cards. Each comes with both low and regular profile brackets.
Brackets include holes for mounting SMA connectors, or for using as cable exit holes.

Specifications




Parameter	Rating	Unit
Input voltage	12	V
Output Voltage	3.3	V
Operating Temperature	-40 to +70	oC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%
ROHS Compliance	YES




Outline




Parameter	Rating	Unit
Length	110	Mm
Width	66	Mm
