wallys Routerboard/DR6018V4-wifi6-Qualcomm-IPQ6010-IPQ6018-FAMILY-2T2R-2.5G-ETH-port- 5G-celluar-Modem-802.11ax

wallyswifi

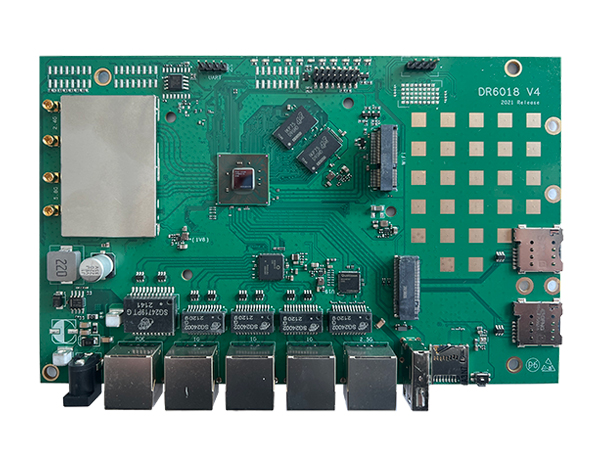

DR6018
Support OpenWRT, SupportUECTEL RM500Q-GL&SupportCN9074 WiFi 6E Card

Support OpenWRT IPQ6010 802.11ax 2x2 2.4G&5G 2.5Gbps Ethernet Port

Qualcomm-Atheros IPQ6010

Quad-core ARM 64bit A53 @1.8GHz Processor

1GB DDRL3L System Memory

32MB NOR Flash, 256MB NAND Flash

Supports Dynamic Frequency Selection (DFS)

2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate

2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate

Support: QUECTEL RM500Q-GL

Support: QCN9074 WiFi 6E Card

Absolute Maximum Rating




Parameter	Rating	Unit
Supply Voltage	24V~48	V
Operating Temperature Range	-40 to +70	oC
Storage Temperature Range	-45 to +105	oC
Operating Humidity Range	5 to +95 (non-condensing)	%




Hardware Specifications




Symbol	Parameter
CPU	Qualcomm-Atheros IPQ6010
CPU Frequency	Quad-core ARM 64 bit A53 @1.8 GHz processor
System Memory	1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design
Ethernet Port	1 x 1Gbps Ethernet Ports & POE3 x 1Gbps Ethernet Ports , 1x 2.5Gbps Ethernet Port
NGFF Slot	M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0
SD Card Slot	1x SD Card Slot
USB /header	1x USB 2.0 Port
POE	24V~48V passive POE/Active POE(Suport 802.3bt)
DC Jack	24V power supply
LED header	FFC/FPC Connector
Serial Port	1x Serial Port 4 Pin Connector
Wireless	On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/802.11g/802.11n/802.11ax, max 23dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 4 x MMCX Connectors
Bluetooth	optional
Nor Flash	8-32MB(normally is 8MB)
Nand Flash	256MB
DDR	1GB
Dimension	185mm x 116mm




Radio TX Specifications(5180MHz-5825MHz)




Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
5Ghz 802.11ax HE20	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB
5Ghz 802.11ax HE400	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB
5Ghz 802.11ax HE80	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB
