[供应] SL3150 200V高耐压电动车充电器芯片 替换PN6005

[复制链接]
发表于 2021-12-13 11:24:06 | 显示全部楼层 |阅读模式
关键词: 电动车车充IC , 电动车控制器 , 电源管理IC , 电源芯片 , DC-DC降压恒压
GENERAL DESCRIPtiON
  SL3150 is a Buck regulator that

provides accurate constant voltage (CV)
regulation without opto-coupler. It has an
integrated 150V MOSFET to simplify the
structure and reduce costs. These features
make it an ideal regulator for off-line low
power applications, such as home
appliances and standby power.
  SL3150 is a green -mode-operation
regulator. Both the peak current and
switching frequency decrease as the load
decreases. This feature provides excellent
efficiency at light load, and improves the
overall average efficiency. SL3150 features
various protections, including thermal
shutdown (OTP), VCC under-voltage
lockout (UVLO), overload protection (OLP),
short-circuit protection (SCP), and open
loop protection.
  SL3150 is offered in SOP7 package
FEATURES
 Primary-Side CV control.
 Wide input range: 15V~150V
 Integrated 150V/5.0Ω MOSFET and
current source
 < 30mW no-load power consumption
 Fixed 5.0V output voltage
 Up to 400mA output Current
 Low VCC Operating Current
 Frequency foldback
 Limited maximum frequency
 Internally biased VCC
 OTP, UVLO, OLP, SCP, Open loop
APPLICATIONS
 Standby power
 E-bike applications
 Industrial controls
 Consumer electronics

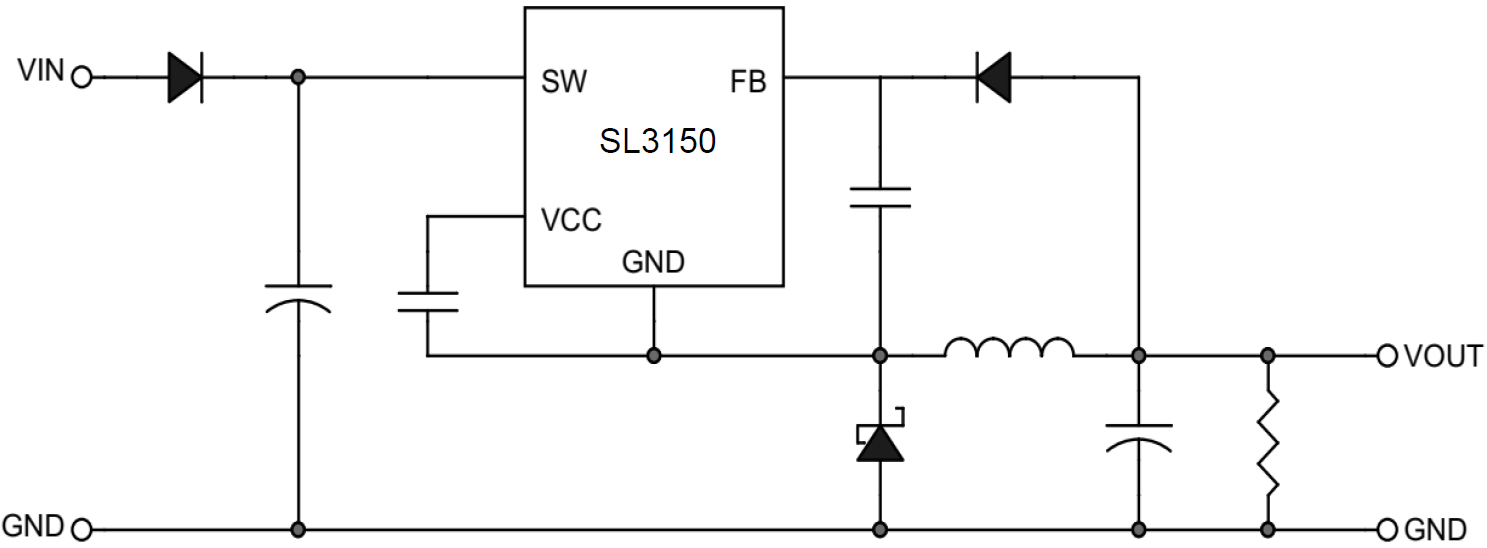

TYPICAL APPLICATION
 楼主| 发表于 2021-12-13 11:24:43 | 显示全部楼层
森利威尔电子 SL3150替换PN6005,直接替代,无需改板方案
