NS SolarMagic SM73201 DC Arc参考设计方案
发布时间：2011-6-13 19:09
发布者：Liming
|
NS公司的M73201是16位50-250kSPS取样差分输入微功耗的ADC,在温度−40℃到+85℃的范围内信号精度优于± 0.003%,共模信号抑制比(CMRR)为85dB,主要用于太阳能电池PV DC Arc检测系统,传感器接口,I/O模块,太阳能数据采集,马达控制和仪表和控制系统.本文介绍了SM73201主要特性, 方框图和典型应用电路图,以及低功耗低成本数据采集系统框图,SolarMagic SM73201 DC Arc 检测评估板主要特性,框图,模拟前端以及材料清单(BOM). SM73201:16-Bit, 50 to 250 kSPS, Differential Input, MicroPower ADC The SM73201 is a 16-bit successive-approximation register (SAR) Analog-to-Digital converter (ADC) with a maximum sampling rate of 250 kSPS. The SM73201 has a minimum signal span accuracy of ± 0.003% over the temperate range of −40℃ to +85℃. The converter features a differential analog input with an excellent common-mode signal rejection ratio of 85 dB, making the SM73201 suitable for noisy environments. The SM73201 operates with a single analog supply (VA) and a separate digital input/output (VIO) supply. VA can range from +4.5V to +5.5V and VIO can range from +2.7V to +5.5V. This allows a system designer to maximize performance and minimize power consumption by operating the analog portion of the ADC at a VA of +5V while interfacing with a +3.3V controller. The serial data output is binary 2’s complement and is SPI™ compatible. The performance of the SM73201 is guaranteed over temperature at clock rates of 1 MHz to 5 MHz and reference voltages of +2.5V to +5.5V. The SM73201 is available in a small 10-lead MSOP package. The high accuracy, differential input, low power consumption, and small size make the SM73201 ideal for direct connection to bridge sensors and transducers in battery operated systems or remote data acquisition applications. SM73201主要特性： ■ Renewable Energy Grade ■ Guaranteed performance from 50 to 250 kSPS ■ ±0.003% signal span accuracy ■ Separate Digital Input/Output Supply ■ True differential input ■ External voltage reference range of +0.5V to VA ■ Wide input common-mode voltage range of 0V to VA ■ SPI™/QSPI™/MICROWIRE™ compatible Serial Interface ■ Operating temperature range of −40℃ to +85℃ ■ Small MSOP-10 package SM73201主要指标： ■ Conversion Rate 50 kSPS to 250 kSPS ■ Offset Error Temp Drift 2.5 μV/℃ ■ Gain Error Temp Drift 0.3 ppm/℃ ■ SNR 93.2 dBc ■ THD − 104 dBc ■ Power Consumption ■ — 200 kSPS, 5V 5.3 mW — 250 kSPS, 5V 5.8 mW — Power-Down, 5V 10 μW SM73201应用： ■ PV DC Arc Detect System ■ Direct Sensor Interface ■ I/O Modules ■ Solar Data Acquisition ■ Motor Control ■ Instrumentation and Control Systems

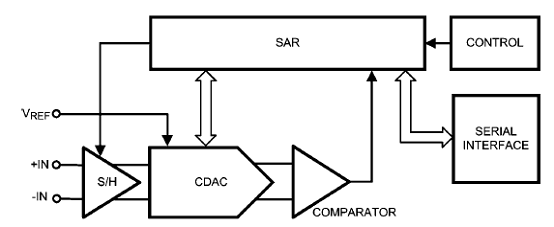

图1。SM73201方框图

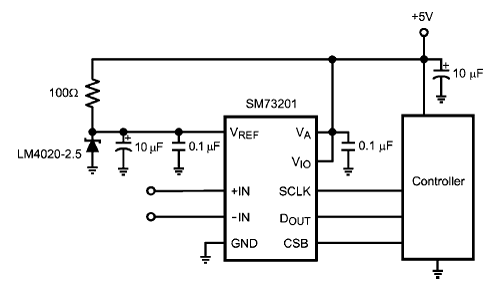

图2。SM73201典型应用电路图

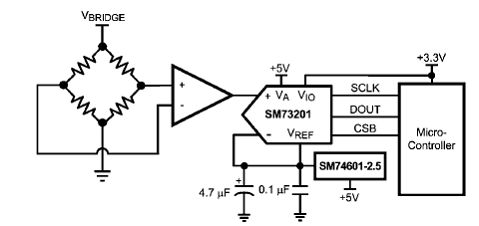

图3。SM73201低功耗低成本数据采集系统框图 SolarMagic参考设计RD-195:SolarMagic SM73201 DC Arc 检测评估板 The SolarMagic™ reference design kit RD-195 includes the SM73201-ARC-EV PCB which is a UL1699B compliant Photo-Voltaic Arc Detect System with a minimal footprint of less than 50 mm x 30 mm. The reference design utilizes National Semiconductor`s advanced Analog technology along with an innovative dynamic filtering technique to effectively detect the signature of Arcing conductors in the presence of highly noisy real world environments. Implemented with National Semiconductor`s PowerWise® technology, the Analog path requires less than 50 mW of power to implement the active filtering. The operation range of the device covers the industrial temperature range of -40℃ to +125℃. SolarMagic™ technology is an overall solution that works in existing and new installations, residential, commercial, and utility scale projects. National Semiconductor`s 50 years of experience in the electronics industry delivers unsurpassed manufacturing, design, and development technology.
图4。SolarMagic SM73201 DC Arc 检测评估板外形图 主要特性： • 1,000V isolation • Maximum DC string current=15A • Simple LED arc detection flag • Industrial Temperature Range (-40℃ to +125℃) • Small PCB footprint of less than 50mm x 30mm. • Low power requirement <400mW

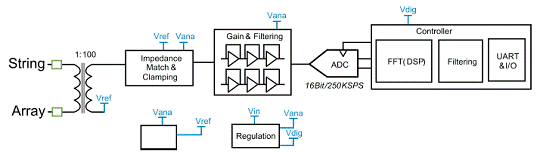

图5。SolarMagic SM73201 DC Arc 检测评估系统框图

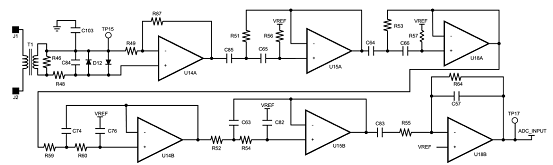

图6。模拟前端

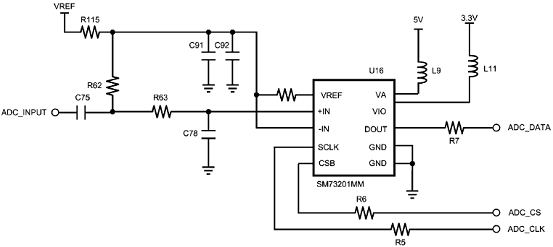

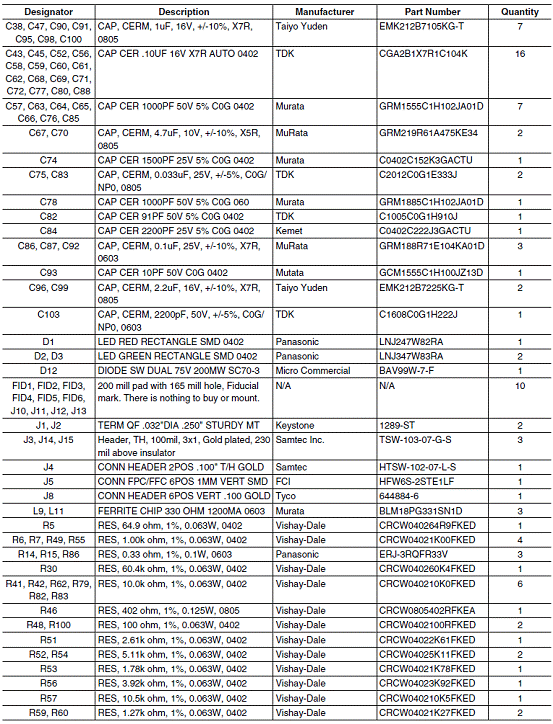

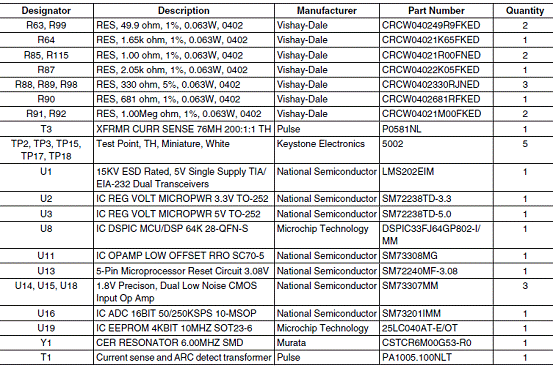

图7。A/D转换器 SolarMagic SM73201 DC Arc 检测评估板材料清单：
详情请见： http://www.national.com/ds/SM/SM73201.pdf 和 http://www.national.com/an/AN/AN-2154.pdf |
