NXP TEA1733MT GreenChip开关电源解决方案
发布时间：2011-5-23 10:17
发布者：Liming
|
NXP 公司的TEA1733MT是 TEA1733系列GreenChip开关电源（SMPS）控制IC，适用于低成本反激拓扑，工作在固定频率模式，频率抖动降低EMI。输入电压12V-30V，起动和重起的电流非常低，只有10uA，无负载时的工作电流0.5mA，适用于75W以下的开关电源。本文介绍了TEA1733MT主要特性，方框图，典型配置图和典型应用电路图以及TEA1733典型应用电路图。 TEA1733MT：GreenChip SMPS control IC The TEA1733MT is a low cost Switched Mode Power Supply (SMPS) controller IC intended for flyback topologies. It operates in fixed frequency mode. Frequency jitter has been implemented to reduce ElectroMagnetic Interference (EMI). Slope compensation is integrated for Continuous Conduction Mode (CCM) operation. The TEA1733MT IC includes OverPower Protection (OPP). This enables the controller to operate under overpower situations for a limited amount of time. Two pins, VINSENSE and PROTECT, are reserved for protection purposes. Input UnderVoltage Protection (UVP) and OverVoltage Protection (OVP), output OVP and OverTemperature Protection (OTP) can be implemented using a minimal number of external components. At low power levels the primary peak current is set to 25 % of the maximum peak current and the switching frequency is reduced to limit switching losses. The combination of fixed frequency operation at high output power and frequency reduction at low output power provides high-efficiency over the total load range. The TEA1733MT enables low-cost, highly efficient and reliable supplies for power requirements up to 75 W to be designed easily and with a minimum number of external components. TEA1733MT主要特性： SMPS controller IC enabling low-cost applications Large input voltage range (12 V to 30 V) Very low supply current during start-up and restart (typically 10 uA) Low supply current during normal operation (typically 0.55 mA without load) Overpower or high/low line compensation Adjustable overpower time-out Adjustable overpower restart timer Fixed switching frequency with frequency jitter to reduce EMI Frequency reduction with fixed minimum peak current to maintain high-efficiency at low output power levels Slope compensation for CCM operation Low and adjustable OverCurrent Protection (OCP) trip level Adjustable soft start operation Two protection inputs (e.g. for input UVP and OVP, OTP and output OVP) IC overtemperature protection TEA1733MT应用： All applications requiring efficient and cost-effective power supply solutions up to 75 W.

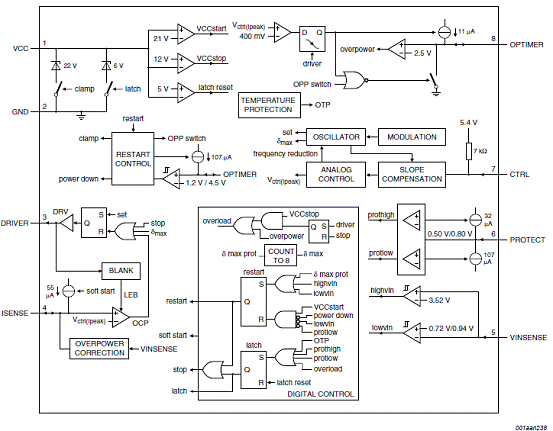

图1。TEA1733MT方框图

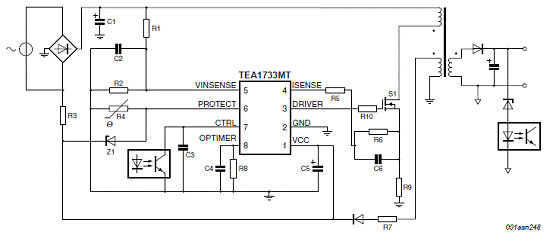

图2。TEA1733MT典型配置图

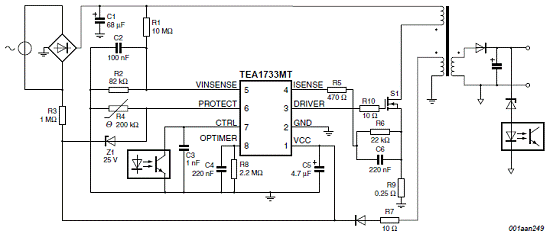

图3。TEA1733MT典型应用电路图

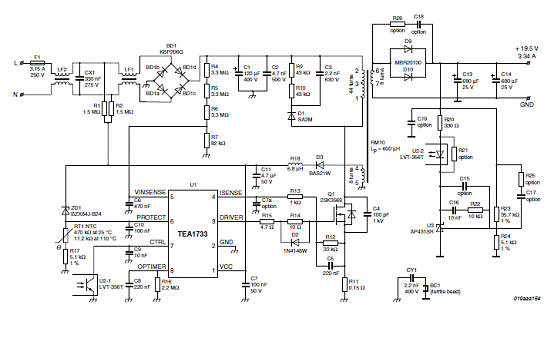

图4。TEA1733典型应用电路图 详情请见： http://www.nxp.com/documents/data_sheet/TEA1733MT.pdf 和 http://www.nxp.com/documents/application_note/AN10868.pdf |
