ADI AD5111 128节点数字电位计解决方案
发布时间：2012-5-15 11:11
发布者：1770309616
|
ADI公司的AD5111/AD5113/AD5115是128－/64－/32节点数字电位计,电阻误差±8%,A,B和W引脚的电流为±6 mA ,正常电阻为5 kΩ, 10 kΩ, 80 kΩ,温度系数为35 ppm/℃,单电源2.3V-5.5V工作,主哟用在替代机械电位器,手持式电平调整仪,音量控制,可编程电压/电流转换,可编程滤波器,延迟以及传感器校准等.本文介绍了AD5111/AD5113/AD5115主要特性,功能方框图以及AD5111评估板主要特性,电离路图,材料清单和PCB布局图. The AD5111/AD5113/AD5115 provide a nonvolatile solution for 128-/64-/32-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the A, B, and W pins. The low resistor tolerance, low nominal temperature coefficient, and high bandwidth simplify open-loop applications, as well as tolerance matching applications. The new low wiper resistance feature minimizes the wiper resistance in the extremes of the resistor array to only 45 Ω, typical. A simple 3-wire up/down interface allows manual switching or high speed digital control with clock rates up to 50 MHz. The AD5111/AD5113/AD5115 are available in a 2 mm × 2 mm LFCSP package. The parts are guaranteed to operate over the extended industrial temperature range of −0℃ to +125℃. AD5111/AD5113/AD5115主要特性: Single-channel, 128-/64-/32-position resolution 5 kΩ, 10 kΩ, 80 kΩ nominal resistance Maximum ±8% nominal resistor tolerance error Low wiper resistance ±6 mA maximum wiper current density Rheostat mode temperature coefficient: 35 ppm/℃ Potentiometer mode temperature coefficient: 5 ppm/℃ 2.3 V to 5.5 V single-supply operation Power-on EEPROM refresh time < 50 μs Simple up/down manual or digital configurable control Chip select enable multiple device operation 50-year typical data retention at 125℃ 1 million write cycles Wide operating temperature: −0℃ to +125℃ Thin, 2 mm × 2 mm × 0.55 mm 8-lead LFCSP package AD5111/AD5113/AD5115应用: Mechanical potentiometer replacement Portable electronics level adjustment Audio volume control Low resolution DAC LCD panel brightness and contrast control Programmable voltage to current conversion Programmable filters, delays, time constants Feedback resistor programmable power supply Sensor calibration

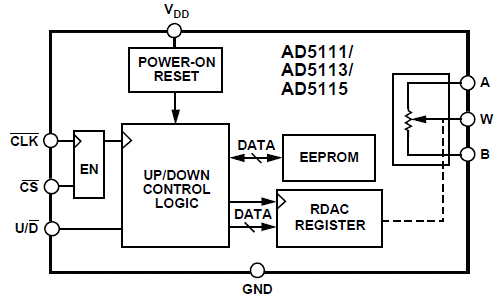

图1.AD5111/AD5113/AD5115功能方框图 AD5111评估板 This user guide describes the evaluation board for evaluating the AD5111—a single-channel, 128-position, nonvolatile memory digital potentiometer. The AD5111 supports single-supply 2.3 V to 5.5 V operation, making the device suited for battery-powered applications and many other applications, offering guaranteed low resistor tolerance errors of ±8% and high bandwidth while allowing up to ±6 mA current density in the A, B, and W pins. A simple 3-wire up/down interface allows manual switching or high speed digital control with clock rates up to 50 MHz. The EVAL-AD5111SDZ can operate in single-supply mode and incorporates an internal power supply from the USB. Complete specifications for the AD5111 part can be found in the AD5111 data sheet, which is available from Analog Devices, Inc., and should be consulted in conjunction with this user guide when using the evaluation board. AD5111评估板主要特性: Full-featured evaluation board for the AD5111 Several test circuits Various ac/dc input signals PC control via a separately purchased system demonstration platform (SDP) PC control software PACKAGE CONTENTS EVAL-AD511xSDZ evaluation board CD that includes Self-installing software that allows users to control the board and exercise all functions of the device Electronic version of the AD5111 data sheet Electronic version of the UG-323 user guide
图2.AD5111评估板和系数开发平台外形图

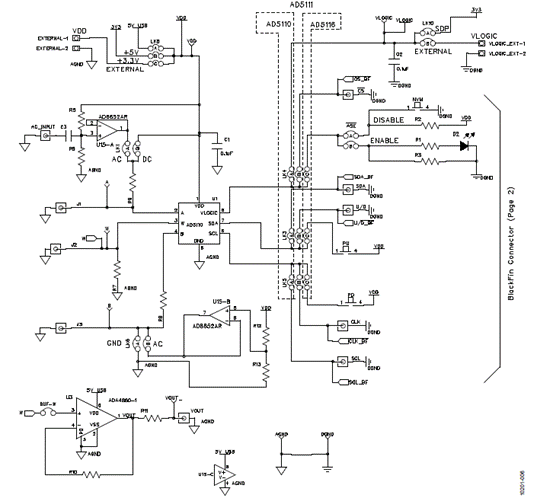

图3.AD5111评估板电路图

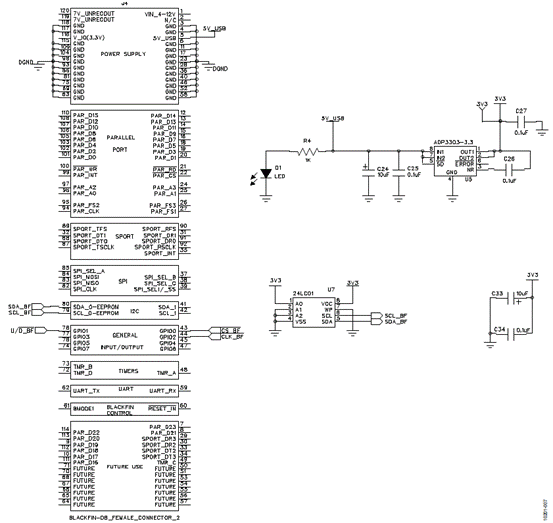

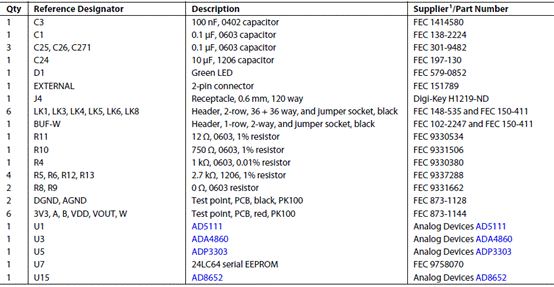

图4.AD5111评估板电路图:SDP连接器 AD5111评估板材料清单:

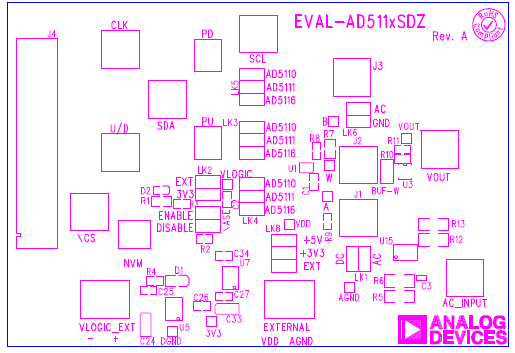

图5.AD5111评估板元件布局图:顶层

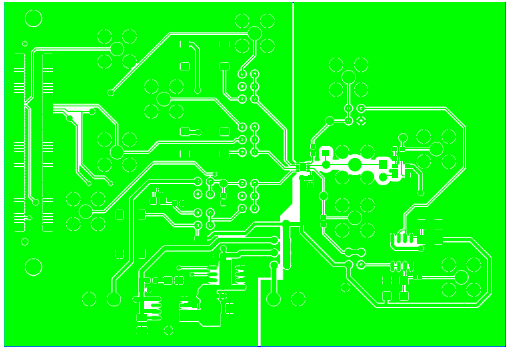

图6.AD5111评估板元件布局图:底层 详情请见:
AD5111_AD5113_AD5115.pdf
(508.2 KB)
UG-323.pdf
(660.42 KB)
