NXP SSL2109 23W LED驱动解决方案
发布时间：2012-3-28 18:30
发布者：1770309616
|
NXP公司的SSL2109 是低成本小尺寸的LED驱动器,采用恒流(CC)驱动,而SSL2109参考板UBA3070能工作在230V(50Hz)或120 V (50 Hz 或60 Hz) 火线电压.本文介绍了UBA3070参考板指标,电路图,材料清单和PCB布局图. This document describes the performance, technical data and the connection of the SSL2109 reference board. The SSL2109 is an NXP Semiconductors controller IC intended to provide a low cost, small form factor LED driver. The reference board is intended to operate at 230 V or 120 V (AC), using an output voltage of 30 V or greater. The board is optimized for a 230 V (50 Hz) or 120 V (50 Hz or 60 Hz) mains supply. In addition to the mains voltage optimization, the board is designed to work with multiple LEDs or an LED module with a high forward voltage. Mains connection of the reference board is different from other general evaluation/reference boards. Connect the mains to the screw connector J6. The SSL2109 is a highly integrated switching mode LED controller which enables Constant Current (CC) driving from the mains input. It is a solution for small to medium LED retrofit lamp application, especially for low-power factor design. The SSL2109 is a buck converter controller suitable for non-isolated, non-dimmable LED retrofit lamps. It can drive long LED strings with, typically 70 V forward voltages. The SSL2109 is intended to operate with higher output voltages, as in modern LED modules.

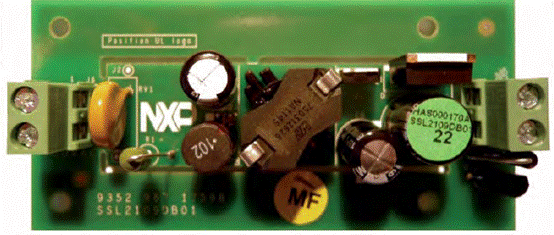

图1.SSL2109 UBA3070参考板外形图:顶视图

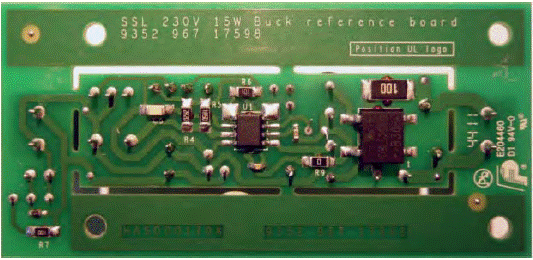

图2.SSL2109 UBA3070参考板外形图:底视图 SSL2109 UBA3070参考板指标:

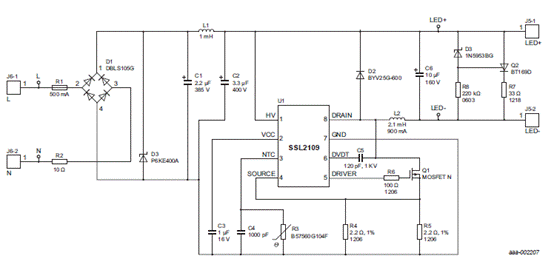

图3.SSL2109 UBA3070参考板电路图 UBA3070参考板材料清单:
图4.SSL2109 UBA3070参考板元件布局图:顶层

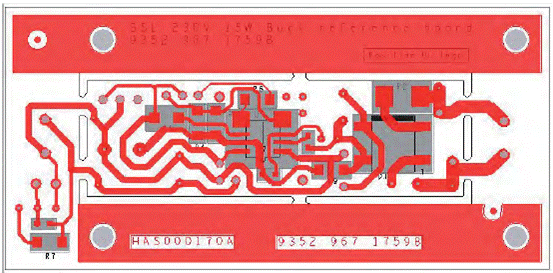

图5.SSL2109 UBA3070参考板元件布局图:底层 详情请见:
UM10512[1].pdf
(1.2 MB)
