CML CMX994 100-600MHz直接变换接收解决方案
发布时间：2012-1-16 12:46
发布者：1046235000
|
CML 公司的CMX994是 100-600MHz直接变换接收器，集成了高动态范围I/Q解调器控制增益的宽带LNA，接收器基带部分包括放大器和精密的基带滤波器，整数N PLL和VCO负阻放大器产生本地振荡（LO），工作电压3.3V，主要用在模拟/数字多模式无线电，SDR，数据遥测调制解调器，卫星通信，笛卡尔反馈回路发送器，宽带数据等。本文介绍了CMX994主要特性，方框图，典型应用框图和EV9942评估板主要特性与功能，电路图以及PCB布局图。 The CMX994 is a direct conversion receiver IC. It includes a broadband LNA with gain control followed by a high dynamic range I/Q demodulator. The receiver baseband section includes amplifiers and precise baseband filter stages. LO generation is provided by an integer-N PLL and a VCO negative resistance amplifier; an external LO may also be used. LO dividers are provided for flexible multi-band operation. The device operates from a single 3.3V supply over a temperature range of –40℃ to +85℃ and is available in a small 40-pin VQFN (Q4) package. CMX994主要特性： Rx Direct Conversion Receiver o Direct conversion eliminates image responses o LNA with gain control o 100MHz to 600MHz I/Q demodulator o Precise filtering with bandwidth setting and 1:2:4 bandwidth modes Local Oscillator o LO synthesiser o VCO negative resistance amplifier o LO divide by 2, 4 or 6 modes o Tx LO Output 3.3V Low-power Operation Small size 40-pin VQFN Package Low-power Mode CMX994应用： Analogue/digital multimode radio Software Defined Radio (SDR) Data telemetry modems Satellite communications Constant envelope and linear Rx modulation Rx function compatible with CMX998 Cartesian Feedback Loop Transmitter Narrowband: e.g. 25kHz, 12.5kHz, 6.25kHz Wideband Data

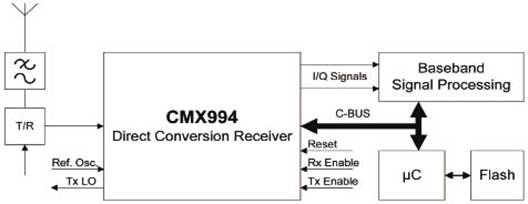

图1。CMX994方框图
图2。CMX994典型应用框图 EV9942评估板 The EV9942 allows the user to investigate all aspects of the CMX994 integrated circuit, which implements a high-performance direct conversion receiver. The evaluation kit also includes additional circuits that may be used to evaluate system performance, a Fractional-N PLL and a high-frequency VCO. Access is provided to all CMX994 RF, baseband and control signals by either connector or test points. Test access points are available to accept common test equipments, such as RF and baseband signal generators and spectrum analysers. All signal paths are matched by suitable components. The overall frequency range of this evaluation kit is for RF frequencies between 100MHz and 600MHz, with default operation at 448MHz. The CMX994 is controlled via its C-BUS serial interface. The PE0002 Interface Card is available separately to support PC-based control of the EV9942. The PE0002 uses ES9942xx.exe PC software, part of the ES9942xx.zip file, which is available from the CML website. EV9942评估板主要特性： CMX994 Evaluation Receiver: o LNA o I/Q Output o Selectable Filters Transmit LO Output CMX994 Integer-N PLL Interface for external Fractional-N PLL 19.2MHz VCTCXO Flexible External VCO On-board Voltage Regulators PC Control Interface Available Interfaces to PE0601, EV9810 or EV9100 Evaluation Kits 448MHz Default Operation 100MHz to 600MHz Evaluation

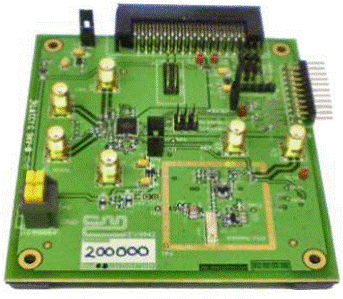

图3。EV9942评估板外形图
图4。EV9942评估板方框图 EV9942评估板功能： The EV9942 functionality includes: Demonstration of a linear direct conversion receiver from RF input to output in I/Q format including: o LNA with gain control o I/Q mixers o first baseband filters o first baseband amplifiers o second baseband filters o second baseband amplifiers. VCO, Integer-N PLL and divider. Tx LO Output. Operation 100MHz to 600MHz (448MHz = default configuration). 19.2MHz VCTCXO. On-board linear regulators for all necessary power rails. The C-BUS Interface that allows the card to be connected to a host μController. A PC Interface board is separately available and allows control of all device functions, to support initial test and customer evaluation. Interface to CMX7163 or CMX7164 evaluation boards (PE0601-7163 / PE0601-7164, not included) to allow demonstration/test of QAM and 2-FSK / 4-FSK demodulation. Interface to CMX910 evaluation card (EV9100, not included) to allow demonstration/test with GMSK demodulation. Interface to CMX981 evaluation card (EV9810, not included) allows demonstration of: o Linear receiver o Pi/4-DQPSK In summary, the EV9942 allows the user to create experiments to investigate all aspects of the CMX994 device. The EV9942 is designed to allow user modification, to support the detailed investigation of the user’s specific and different applications. The evaluation platform also includes additional circuits that may be used to evaluate system performance, for example a fractional-N PLL (U8) and a high-frequency VCO (TR2/TR3).

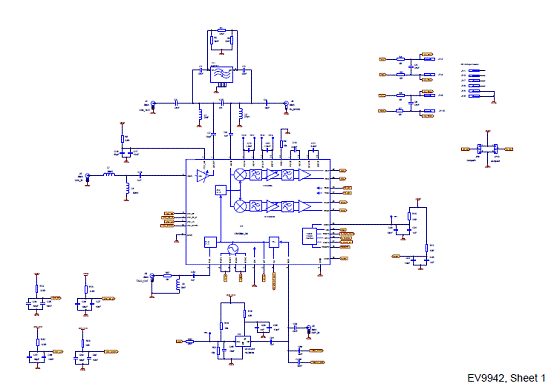

图5。EV9942评估板电路图（1）

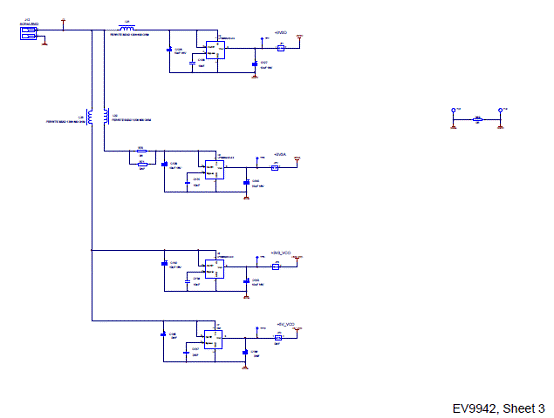

图6。EV9942评估板电路图（2）

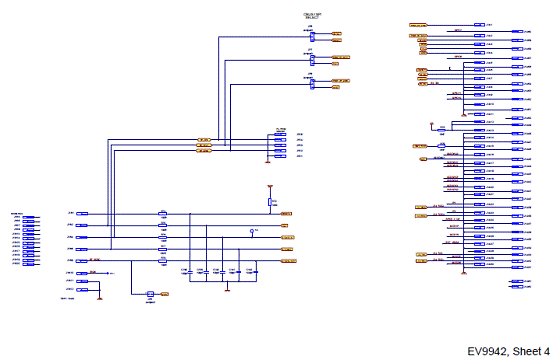

图7。EV9942评估板电路图（4）
图8。EV9942评估板电路图（4）
图9。EV9942评估板PCB布局图：顶层

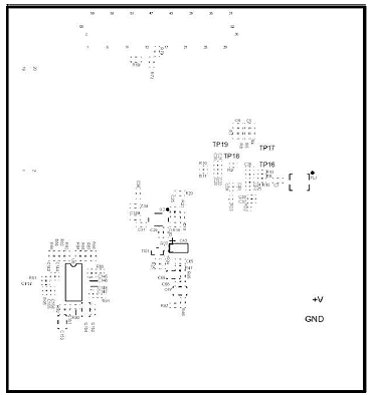

图10。EV9942评估板PCB布局图：底层 详情请见：
CMX994ds[1].pdf
(1.32 MB)
ev9942ds[1].pdf
(772.83 KB)
|
