Cypress CY8CPLC20动力线通信(PLC)解决方案

发布时间：2012-1-9 16:24 发布者：1770309616

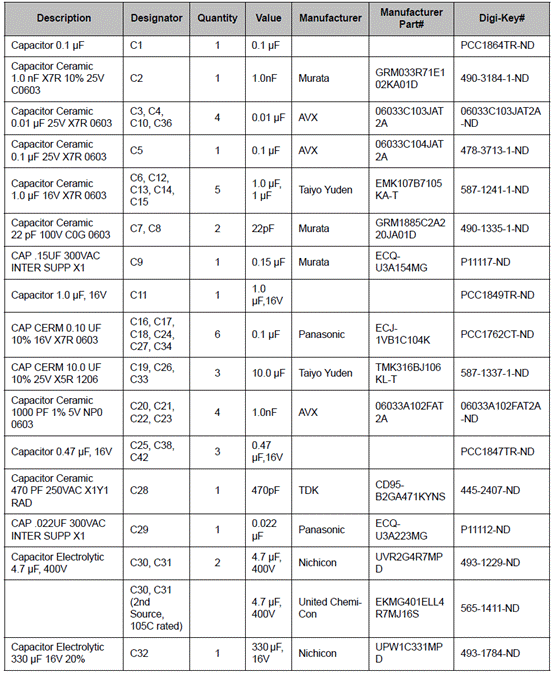

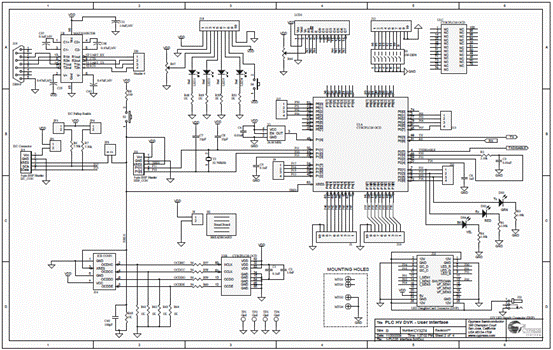

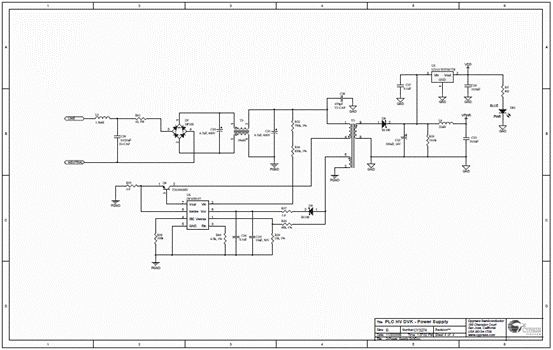

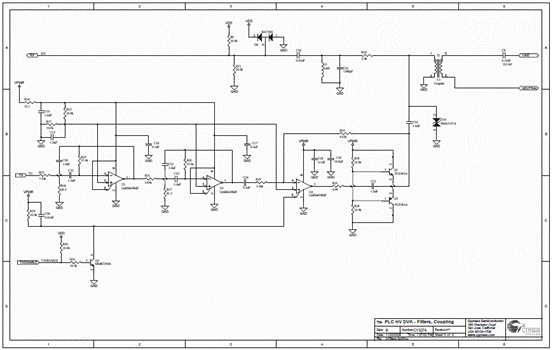

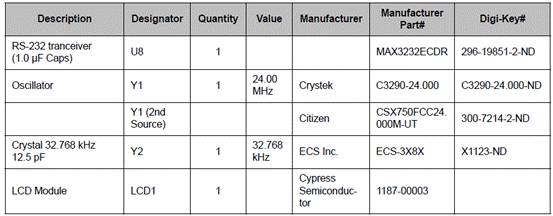

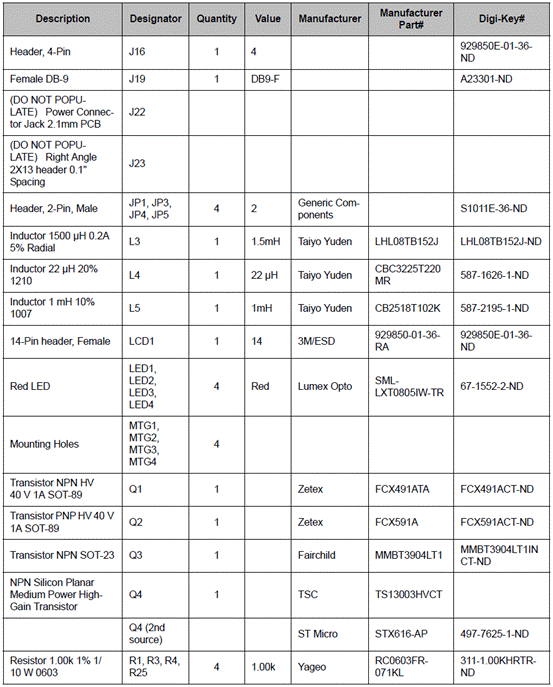

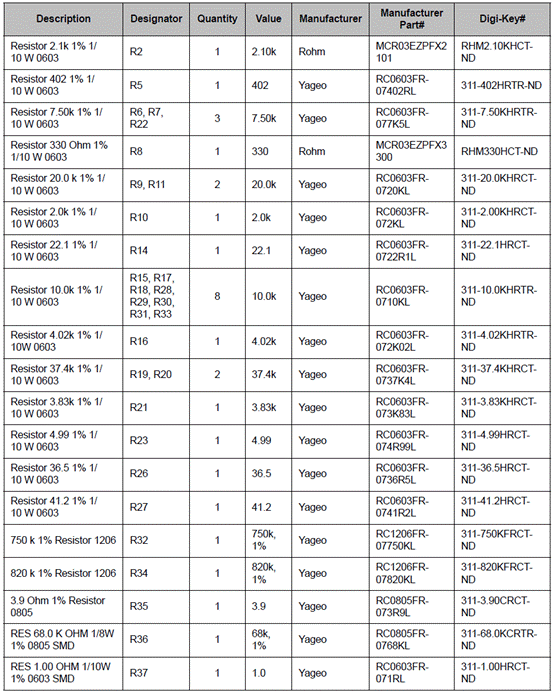

Cypress公司的CY8CPLC20是集成了动力线调制解调器(Modem)PHY和网络协议堆栈的动力线通信(PLC)芯片.M8处理器的速度达24MHz,有两个8x8乘法器和32位累加器,支持双向半双工通信,可配置的波特率高达2400bps,I2C频率50,100和400kHz,参考设计用于110 V/240 V AC以及110 V/240 V AC/DC动;力线,并和CENELEC EN 50065-1:2001 以及FCC Part 15兼容.本文介绍了CY8CPLC20主要特性,方框图以及CY3274 HV开发套件主要特性,电路图和材料清单.

The CY8CPLC20 is an integrated powerline communication (PLC) chip with the powerline modem PHY and network protocol stack running on the same device. Apart from the PLC core, the CY8CPLC20 also offers Cypress’s revolutionary PSoC technology that enables system designers to integrate multiple functions on the same chip.

Powerlines are available everywhere in the world and are a widely available communication medium for PLC technology.

The pervasiveness of powerlines also makes it difficult to predict the characteristics and operation of PLC products. Because of the variable quality of powerlines around the world, implementing robust communication has been an engineering challenge for years. The Cypress PLC solution enables secure and reliable communications. Cypress PLC features that enable robust communication over powerlines include:

■ Integrated Powerline PHY modem with optimized filters and amplifiers to work with lossy high voltage and low voltage powerlines.

■ Powerline optimized network protocol that supports bidirectional communication with acknowledgement-based signaling.

In case of data packet loss due to bursty noise on the powerline, the transmitter has the capability to retransmit data.

■ The powerline network protocol also supports an 8-bit CRC for error detection and data packet retransmission.

■ A Carrier sense multiple access (CSMA) scheme is built into the network protocol that minimizes collisions between packet transmissions on the powerline and supports multiple masters and reliable communication on a bigger network.

CY8CPLC20主要特性:

■ Powerline communication solution

❐ Integrated powerline modem PHY

❐ Frequency shift keying modulation

❐ Configurable baud rates up to 2400 bps

❐ Powerline optimized network protocol

❐ Integrates data link, transport, and network layers

❐ Supports bidirectional half duplex communication

❐ 8-bit CRC error detection to minimize data loss

❐ I2C enabled powerline application layer

❐ Supports I2C frequencies of 50, 100, and 400 kHz

❐ Reference designs for 110 V/240 V AC and 12 V/24 V AC/DC Powerlines

❐ Reference designs comply with CENELEC EN 50065-1:2001 and FCC Part 15

■ Powerful Harvard-architecture Processor

❐ M8C processor speeds to 24 MHz

❐ Two 8x8 multiply, 32-bit accumulate

■ Programmable system resources (PSoC® Blocks)

❐ 12 Rail-to-Rail Analog PSoC Blocks provide:

• Up to 14-bit ADCs

• Up to 9-bit DACs

• Programmable gain amplifiers

• Programmable filters and comparators

❐ 16 Digital PSoC Blocks provide:

• 8 to 32-bit Timers, Counters, and PWMs

• CRC and PRS Modules

• Up to four full duplex UARTs

• Multiple SPI™ masters or slaves

• Connectable to all GPIO Pins

❐ Complex peripherals by combining blocks

■ Flexible on-chip memory

❐ 32 KB flash program storage 50,000 erase or write cycles

❐ 2 KB SRAM data storage

❐ EEPROM emulation in flash

■ Programmable pin configurations

❐ 25 mA sink, 10 mA source on all GPIOs

❐ Pull-up, Pull-down, high Z, strong, or open drain drive

Modes on all GPIO

❐ Up to 12 analog inputs on all GPIOs

❐ Configurable interrupt on all GPIOs

■ Additional system resources

❐ I2C slave, master, and multi-master to 400 kHz

❐ Watchdog and sleep timers

❐ User-configurable low-voltage detection

❐ Integrated supervisory circuit

❐ On-chip precision voltage reference

■ Complete development tools

❐ Free development software (PSoC Designer™)

❐ Full-featured in-circuit emulator (ICE) and programmer

❐ Full-speed emulation

❐ Complex breakpoint structure

❐ 128 KB trace memory

❐ Complex events

❐ C Compilers, assembler, and linker

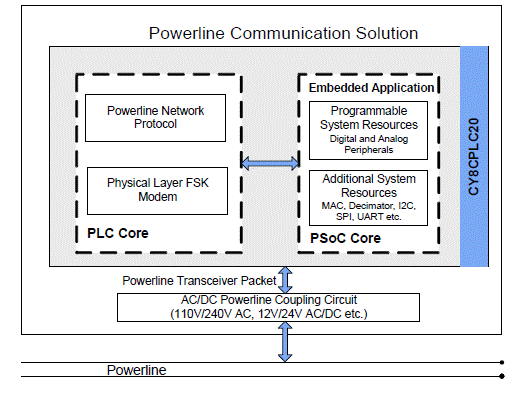

图1.CY8CPLC20方框图

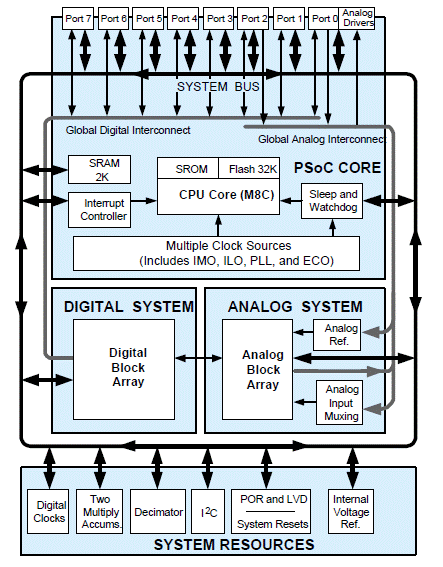

图2.CY8CPLC20 PSoC核框图

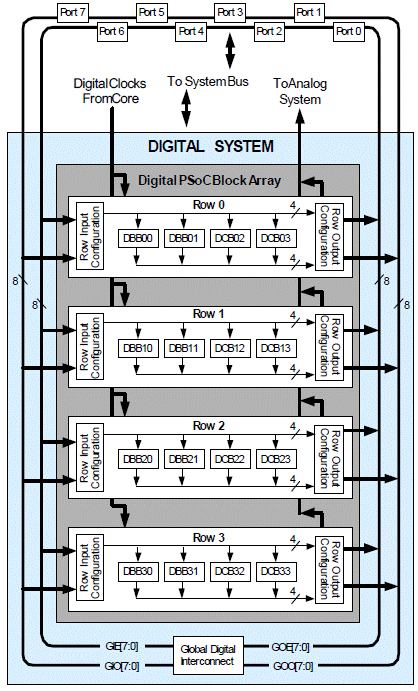

图3.CY8CPLC20数字系统框图

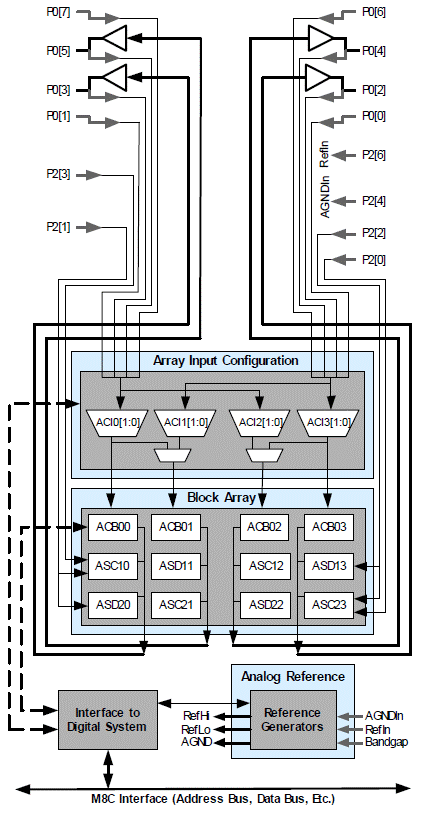

图4.CY8CPLC20模拟系统框图

CY3274 HV开发套件

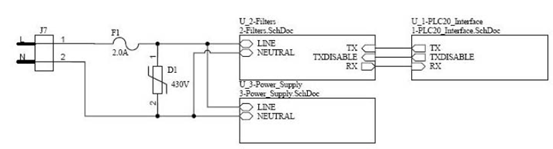

The CY3274 is for prototyping and development on the CY8CPLC20 with PSoC Designer. This kit supports in-circuit emulation. The software interface enables users to run, halt, and single-step the processor and view the content of specific memory locations. PSoC Designer also supports the advanced emulation features. The hardware comprises of the high voltage coupling circuit for 110VAC-240VAC powerline, which is compliant with the CENELEC/FCC standards. This board also has an onboard switch mode power supply.

CY3274 HV开发套件包括:

■ One High Voltage (110-230VAC) PLC Board. Cypress recommends that a user purchases two CY3274 kits to setup a two-node PLC subsystem for evaluation and development.

■ CY8CPLC20-OCD (100 TQFP)

■ Software CD

■ Supporting Literature

■ MiniProg1

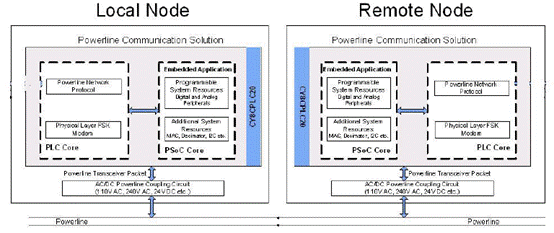

图5.PLC系统级方框图–两节点

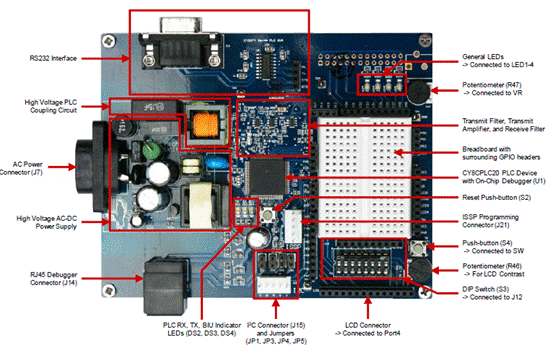

The key features of the CY3274 development board are:

■ User friendly PLC Control Panel application available on kit CD

■ CY8CPLC20-OCD – 100-pin TQFP on-chip debug (OCD) device that allows quick design and debug of a PLC application.

The CY8CPLC20 100-pin TQFP is available for debug purpose only. For production quantities, CY8CPLC20 is available in 28-pin SSOP and 48-pin QFN packages.

■ Chip power supply derived from 110 V to 240 V AC

■ User configurable general purpose LEDs

■ General purpose 8-position DIP switch

■ On board surge protection and isolation circuit

■ RJ45 connector to use ICE debugger

■ RS232 COM port for communication

■ Header to attach the LCD card

■ I2C header for communicating to external device

■ ISSP header for programming the CY8CPLC20
