Radiocrafts RC1180-KNX多协议无线应用解决方案~*

发布时间：2011-9-7 15:24 发布者：1770309616

关键词： Radiocrafts , RC1180-KNX , 多协议 , 无线应用

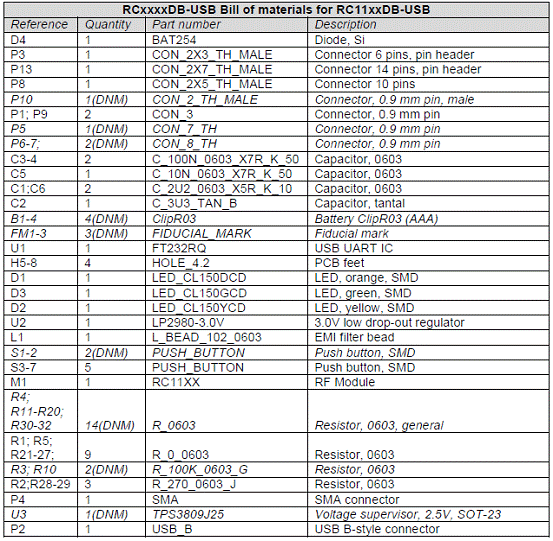

Radiocrafts公司的RC1180-KNX是表面安装的高性能发送模块,它的尺寸仅为12.7 x 25.4 x 3.3 mm,能很容易集成在传感器或激励器中,采用UART接口作为串行通信和配置,天线直接连接到RF引脚,适合欧洲标准(CENELEC EN 50090和CEN EN 13321-1),国际标准(ISO/IEC 14543-3),中国标准(GB/Z 20965)以及美国标准(ANSI/ASHRAE 135).工作频率868.0 – 870.0 MHz,工作电压2.0 – 3.9 V,并具有超低功耗,主要应用在家庭和建筑物控制,HVAC,AMR和自动读表以及网关等.本文介绍了RC1180-KNX主要特性, 典型连接图, 应用示意图以及三种RCxxxxDK-USB演示板方框图,电路图,材料清单以及PCB元件布局图.

The RC1180-KNX® RF Transceiver Module is a compact surface-mounted high performance module with embedded KNX-RF Multi protocol as defined by the KNX Association (www.knx.org). The module has a UART interface for serial communication and configuration. The module is pre-certified for operation under the European radio regulations for license-free use and measures only 12.7 x 25.4 x 3.3 mm with shielding. When used with quarter-wave antennas a line-of-sight range of 600-800 meter can be achieved. The RC1180-KNX meets the KNX specification and supports S, A and E modes, and operates in the 868 MHz frequency band. The physical layer complies with the relevant parts of the EN 50090 (ISO/IEC 14543-3).

RC1180-KNX主要特性:

 Embedded KNX-RF protocol (KNX-RF v1.1, KNX Ready and KNX-RF Multi)

 Frequency agility, by using up to 5 channels

 Fast link acknowledgement of up to 64 receivers

 Automatic retransmissions

 Repeaters, extending range of KNX-RF Multi messages by 2 hops and KNX-RF Ready messages by 6 hops

 Binding of up to 64 other KNX-RF devices

 Listen Before Talk (LBT) to reduce collisions

 Automatic battery supervision

 Received Signal Strength Information (RSSI)

 Pin compatible with the Wireless M-Bus module RC1180-MBUS

 12.7 x 25.4 x 3.3 mm compact module for SMD mounting

 Completely Shielded

 Wide supply voltage range, 2.0 – 3.9 V

 Ultra low power modes for extended battery lifetime

 Conforms with EU R&TTE directive (EN 300 220, EN 301 489, EN 60950)

 Confirms with EN 50090 (ISO/IEC 14543-3)

 Designed for EX compliance

RC1180-KNX应用:

 Home and building control

 HVAC

 AMR, Automatic Meter Reading

 Gateways KNX RF/KNX-IP/KNX Twisted Pair

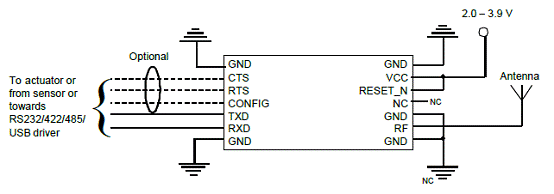

图1.RC1180-KNX典型连接图

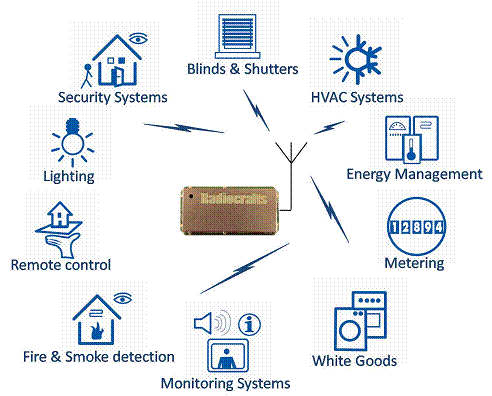

图2.RC1180-KNX典型应用示意图

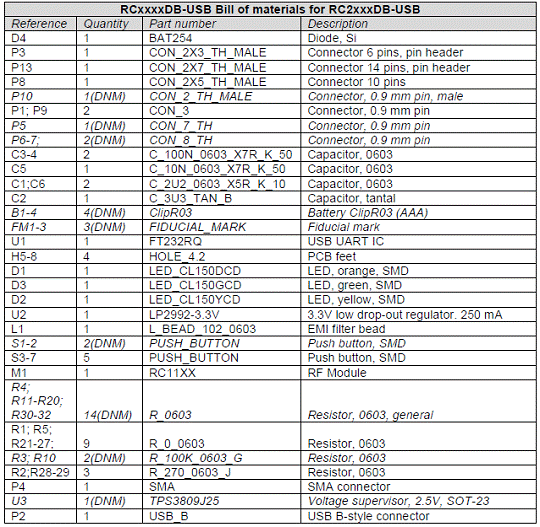

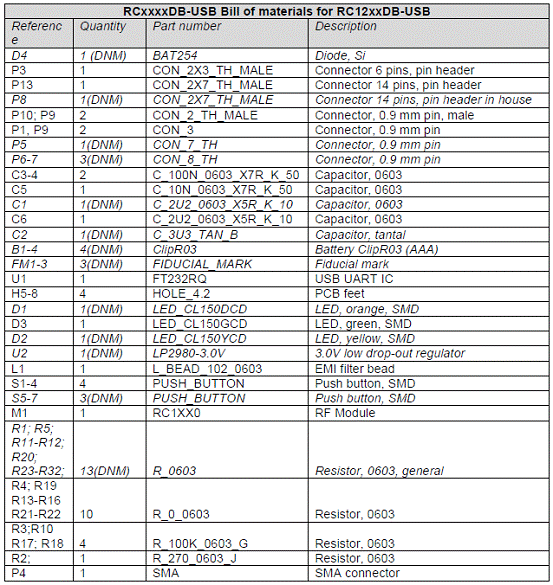

RCxxxxDK-USB演示板

The Demonstration Kit (DK) is designed to make it easy for the user to evaluate the onboard module, develop an application and build prototypes very quickly. The kit includes two Demo Boards (DB). The demo board contains the selected module with its dedicated article number and embedded protocol and associated support circuits. The board can easily be operated using a PC terminal emulator or the RCTools PC suite from Radiocrafts.

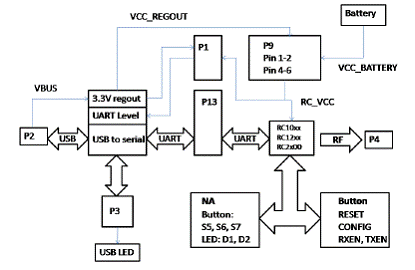

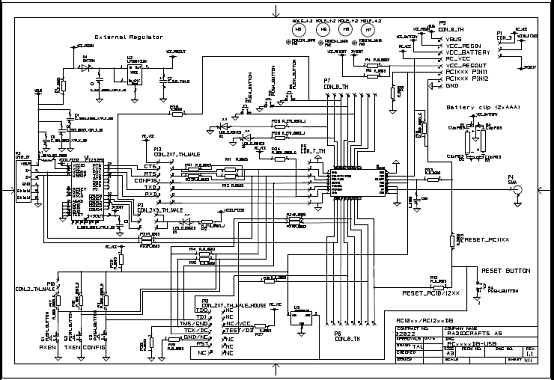

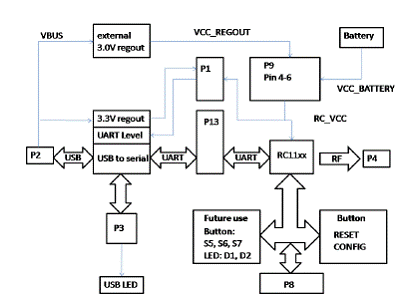

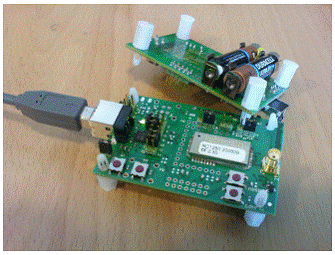

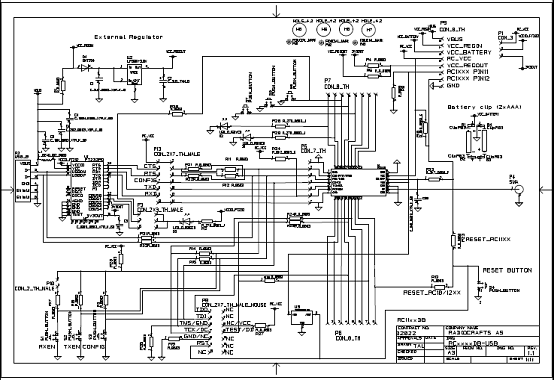

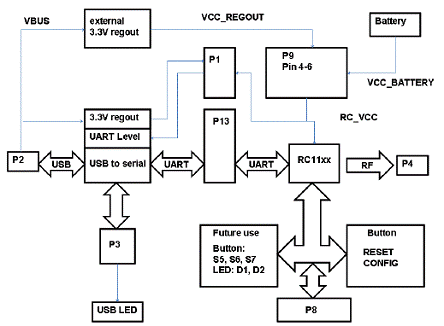

图3.RCxxxxDK-USB演示板外形图

The Demo Board contains USB connector, USB to serial converter, buttons, LEDs, voltage regulator, configuration jumpers and connectors to make it easy to interface the onboard module with various test equipment or the host used in an application. Not all components are needed in an actual application. Please see the datasheet for each specific module for a typical application circuit.

The Demonstration Board comes in different versions, equipped with the different variants of Radiocrafts modules. Among the frequencies supported are 433 MHz, 868 MHz, 915 MHz and 2.45 GHz. For each frequency there exist narrowband versions and wideband versions.

This covers the most used frequency bands, the 433 MHz band in Europe and the US, the 868 MHz band in Europe, the 902-928 MHz band in the US and the 2 450 MHz band worldwide.

The actual module mounted can be seen on the marking on the module itself.
