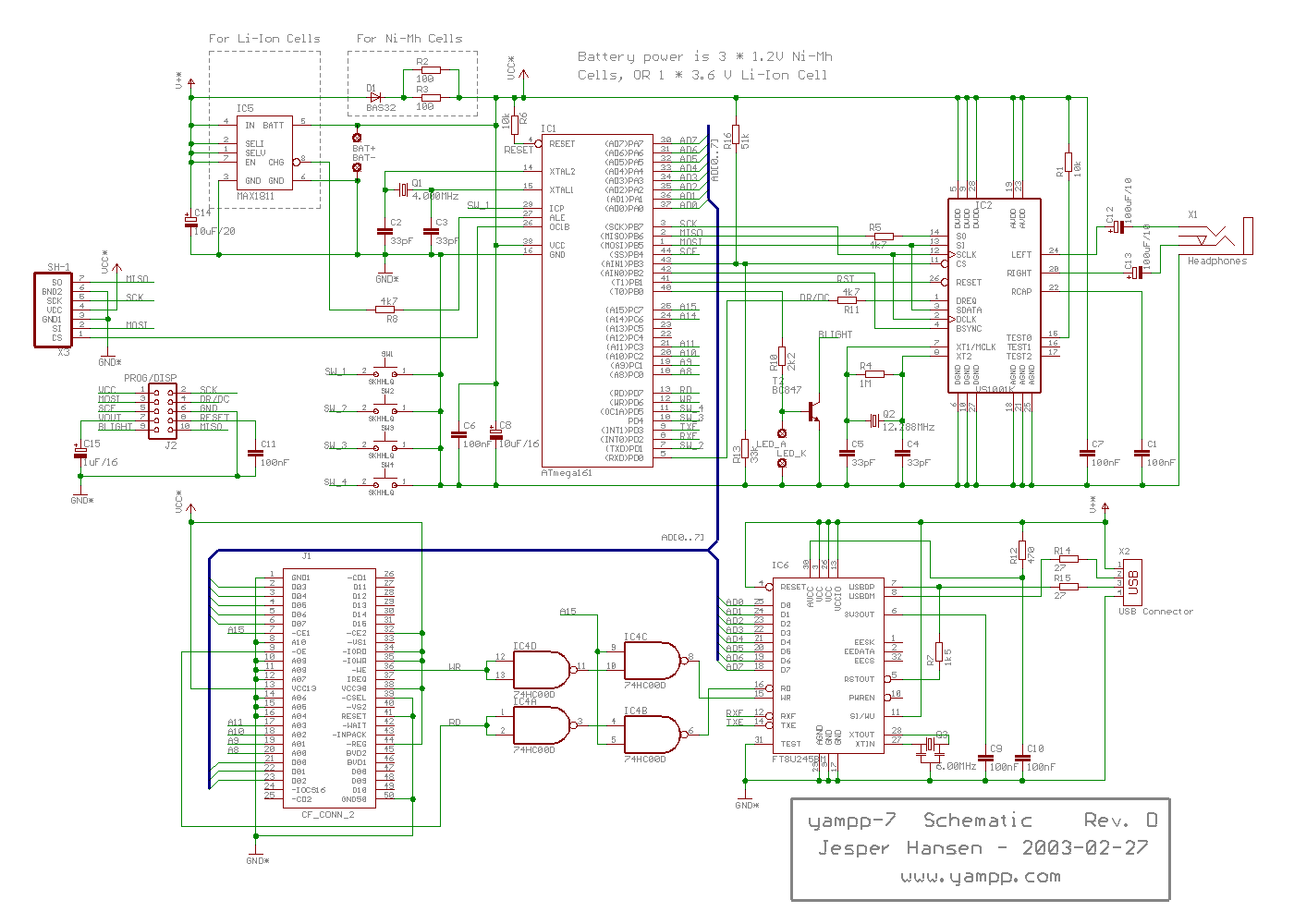

自制MP3播放器电路原理图
发布时间：2010-1-7 23:29
发布者：我爱电路图

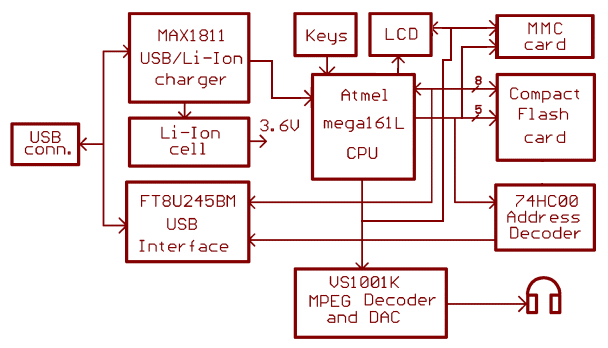

此款MP3播放器，用了一片Nokia3310手机的LCD显示屏来显示操作，使用一片FT8U245 USB芯片！能使用多种小型Flash卡和多媒体卡作为歌曲文件存储器！

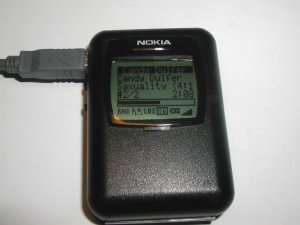

以下为英文原文介绍资料： yampp7 is a new portable MP3 player that uses Compact Flash or MultiMedia cards for storage of songs. You'll get about 1 minute of playing time per MB on the memory card, if your songs are 128 kbps. The player is pretty small and the PCB has been designed to fit into a Teko "Soap" box. It features a 84*48 pixel graphical LCD display, similar to the displays used on Nokia 3310 cell phones. It's designed to operate from rechargable battery cells, either from a single 3.6V Li-Ion cell (recommended), or from 3*1.2V Ni-Mh cells. With a 600 mA Li-Ion cell, the playing time is about 12 hours, but you can find Li-Ion cells up to 1200 mAh that will fit in the player, extending the playing time to about 24 hours It's intended to be used with replacement Li-Ion cells for Mobile Phones, making it easy (and relatively cheap) to find a suitable cell. (I use mine with a cell for a Motorola V3688 Phone). It also features a USB interface for fast downloading of songs to the memory card, and for firmware updates The player uses a special filesystem called YADL (Yampp Advanced Disk Layout), which maximizes the capacoty of the memory card. It is playlist based and give the player a powerful but easy to use user interface Processor The central part of the yampp-7 player is the Atmel mega161 CPU. It's like a big-brother to the classic 8515 CPU that was used on the original yampp-3. It has 16 kB Flash and 1024 bytes internal SRAM, both double as much as on the 8515. It also features a bootloader option. This is been used in yampp-7, where it is now possible to download new firmware over the USB link USB The USB link is controlled by a FT8U245BM chip from FTDI. This is a VERY easy to use USB chip, which basically looks like a simple 8-bit buffer (hence the name). There's no need for implementing any specific USB code in the player, to communicate over the USB link, you just read and write data directly to the chip. Two status pins indicate if there's any data in the receive buffer, and if the transmitter queue is empty. The USB chip is memorymapped and occupies a single address in the CPU address space. Some discrete circuitry is added to the USB chip to enable it to startup in the correct mode, and to handle the power on reset and Soft-Connect feature. Li-Ion chargerA Maxim MAX1811 chip is added for handling the charging of the Li-Ion cell.(Ni-Mh cells can also be used in the player, in this case, the MAX1811 is replaced by a diode and a resistor). The MAX chip is a special USB to Li-Ion charger, and it controls the relatively complicated charge sequence to the Li-Ion cell. The Li-Ion cell (or Ni-Mh cells), supply 3.6V to the other components. Memory card Interface The player can be used with either a Compact Flash card or a MultiMedia Card. The Compact Flash (CF) interface is pretty similar to a standard ATA interface. The nice thing about it, is that it can run in 8-bit mode, making it very simple to interface to a microprocessor. In the yampp-7, the CF interface is mapped directly into the memorymap of the processor. To control the CF card and to read/write data, the standard ATA register bank of is used, and address bits A8-A11 is used to select the register. The MultiMedia Interface is a serial interface with an SPI bus. As the mega161 already has such a bus, the MultiMedia card is simply hooked onto this bus, with a single address line used as chip select. Address decoding To simplify the addressing of the CF card and USB interface, a 74HC00 is used to gate the RD and WR signals to the USB chip depending on the state of address line A15. With this, the USB chip will be located at address 0x8000, and the CF card's registers are located at 0x1000 to 0x1F00. MP3 Decoder The MP3 decoder is, as on other yampp's the VS1001K chip from VLSI. It's an easy to use decoder with a built in DAC. It's clocked from a 12.288 MHz crystal, enabling bitrates up to 256k bps. It also has a built in headphone amplifier. Player control The player is controlled with 4 pushbuttons. One of these is connected to the ICP input of the CPU, which can generate an interrupt to the CPU. When the player is stopped, it enters power-down mode after 1 minute. The interrupt from the button can then be used to wakeup the CPU from the low-power sleep mode. All buttons have two functions, one is reached by a short press on the button, and the other by holding down the button. Depending on player state, the buttons control various functio Partslist Part value Package -------- ------------- ----------------- R1,R6 10k R0805 R2,R3 100R R0805 * R4 1M R0805 R5,R8,R11 4k7 R0805 R7 1k5 R0805 R10 2k2 R0805 R12 470 R0805 R13 33k R0805 R14,R15 27 R0805 R16 51k R0805 C1,C6,C7 100nF C0805 C9-C11 100nF C0805 C2-C5 33pF C0805 C8 10uF/16 ELNA_RV2_4 C14 10uF/16 Tantal ! C6032 C15 1uF/16 Tantal C3528 C12,C13 100uF/10 ELNA_RV2_63 D1 BAS32 SOD80 * T2 BC817 SOT23 IC1 ATmega161L TQFP44 IC2 VS1001K SOIC-28 IC4 74HC00D SO14 IC5 MAX1811 SO8 ** IC6 FT8U245BM QFP32 Q1 4.000MHz HC49U-V Crystal Q2 12.288MHz HC49U-V Crystal Q3 6.00MHz Ceramic Resonator J1 Compact Flash Connector J2 LCD/Programming Angled Connector 2*5 2mm SH1 MultiMedia Card Connector X1 Headphones 3.5mm Jack X2 USB Connector Type787780 SW1-SW4 ALPS Type SKHHLQ pushbutton * = only used with Ni-Mh cells ** = only used with Li-Ion cells |
-
-
5.05 KB, 下载积分: 积分 -1
