Connectone Co2144 IP网络接入解决方案

发布时间：2011-8-3 19:19 发布者：Liming

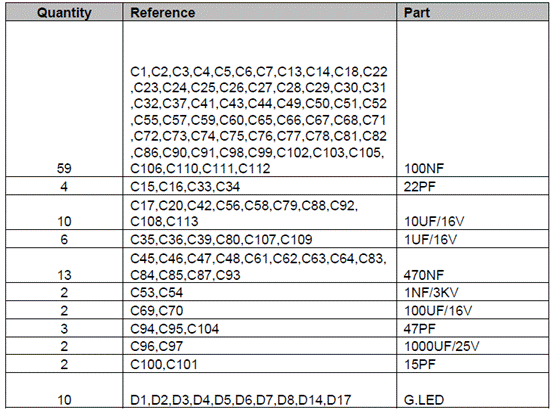

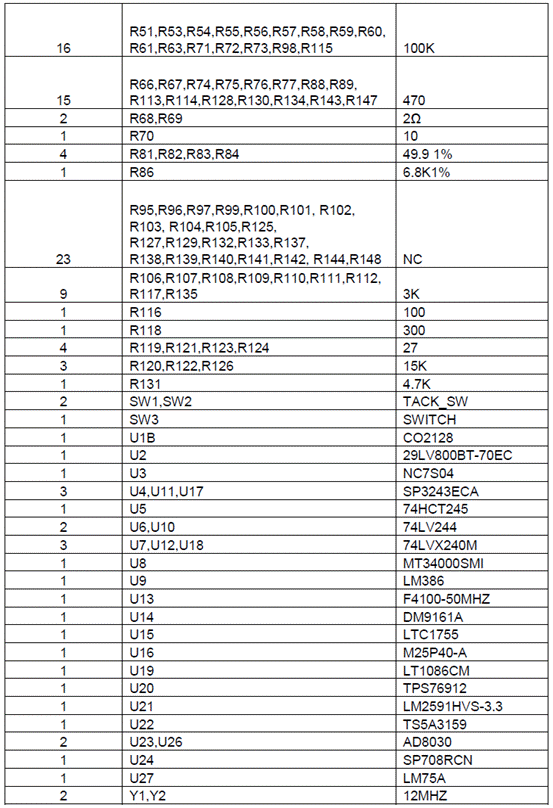

Connectone 公司的CO2064, CO2128和Co2144是全特性可编程的IP通信控制器,能用作协处理器从任何主控制器中卸载安全和IP连接任务,CO2128/CO2144固件支持多达10个同时作用的TCP/UDP 套接字(socket)和两个监听套接字,HTTP, SMTP, MIME, POP3, FTP 和TELNET客户,有两个网址的网络服务器,具有完整的互联网协议堆栈和RSA, AES-128/256, 3DES, RC-4, SHA-1, MD-5 与SSL3/TLS1加密,10/100BaseT 以太网MAC, USB 2.0全速主从器件,提供拨号,蜂窝,LAN和WiFi连接.本文介绍了CO2064, CO2128和Co2144 主要特性,方框图,典型主机和互联网环境以及快速互联网评估板 II-EVB-630W主要特性,电路图和材料清单.

iChip™ CO2064, CO2128 and CO2144 are full-featured programmable IP Communication Controller™ chips that act as coprocessors to offload security and IP connectivity tasks from any host processor. They are ideal for enabling devices to achieve secure, high-speed throughput and access to IP networks via 10/100BaseT LAN or 802.11b/g wireless LAN, and cellular or dial-up modems. Typically only one man-month is needed for hardware engineering and adding IP connectivity commands to the host application.

While the CO2128/CO2144 include a complete set of features, the CO2064 uses an open software architecture that enables users to select and program different firmware flavors, each providing a unique subset of Internet protocols and features.

The CO2128/CO2144 firmware supports up to 10 simultaneous active TCP/UDP sockets and two listening sockets; HTTP, SMTP, MIME, POP3, FTP and TELNET clients; a web server with two websites: one for configuring the CO2128/CO2144 and one for the application; and serial-to-IP bridging.

The CO2064 comes in two firmware flavors:

Flavor A offers 10 active TCP/UDP sockets and two listening sockets; sending ASCII e-mails; sending and retrieving data from an FTP server, and serial-to-IP bridging in SerialNet™mode.

Flavor B supports one secure TCP/UDP socket plus 9 non-secure sockets.

Security features in the CO2064 include the hardware implementation of a random number generator, SHA-1 secure hash accelerator, AES-128/256 encryption accelerator, 3DES, SSL3/TLS1, RSA, RC-4 and MD-5. The CO2128 includes, in addition to the above, WEP, WPA, and WPA2 encryption for WiFi.

CO2064 loads its firmware and Internet configuration parameters either from an external SPI flash memory, or accepts it from the host via one of the supported interfaces. Firmware can be updated locally via RS232.

CO2128/CO2144 load their firmware from an external EBI flash memory. Firmware can be remotely updated via sockets, FTP or HTTP.

All three iChips include a 32-bit ARM7TDMI RISC processor and 256KB of embedded high-speed SRAM. Basic peripherals for all models include USB v. 2.0 full-speed host and device port; 10/100BaseT Ethernet MAC with MII/RMII, USART and SPI interfaces.

Both CO2064 and CO2128/CO2144 feature Sleep mode for energy savings. The iChips come in a 64-pin (CO2064), 128-pin (CO2128) or 144-pin (CO2144) LQFP RoHS-compliant package.

Co2144 主要特性:

Complete Internet protocol stack

RSA, AES-128/256, 3DES, RC-4, SHA-1, MD-5 and SSL3/TLS1 encryption

10/100BaseT Ethernet MAC

USB v2.0 full-speed host and device

USART, SPI interfaces

CO2128/CO2144 主要特性:

Acts as a security gap between the host application and the network

Provides dialup, cellular, LAN and WiFi connectivity

Non-volatile, on-chip operational parameter database

Up to 10 simultaneous TCP/UDP sockets and two listening sockets

One secure SSL3/TLS1 socket

Supports multiple Certificate Authorities and both client-side and server-side authentication

Routing of IP packets between dialup/cellular and LAN/WiFi platforms using NAPT

Supports infrasturcture and ad-hoc wireless LAN networks

Enables roaming among Access Points sharing the same SSID

Provides WEP, WPA and WPA2 wireless LAN security

Includes a true hardware random number generator

Triple DES, AES and SHA implemented in hardware

Includes 10/100BaseT Ethernet MAC

Sending and receiving textual email and binary email with MIME attachments HTTP client

HTTP web server with two on-chip websites: configuration site and application site

SerialNet mode for serial-to-IP bridging (port server mode)

FTP and Telnet clients

Secure FTP client (over SSL3)

DHCP client and server

RAS server

Locally updateable firmware

Remote configuration and firmware update over the Internet

Retrieval of time data from a Network Time Server

Performance Specifications

Host Data Rate: Up to 3 Mbps in serial mode

Serial Data Format (AT+i mode): Asynchronous character; binary; 8 data bits; no parity; 1 stop bit

Serial Data Format (SerialNET mode): Asynchronous character; binary; 7 or 8 data bits; odd, even, or no parity; 1 stop bit

Flow Control: Hardware (RTSH, CTSH, DCH) and software flow control Internet Protocols

ARP, ICMP, IP, UDP, TCP, DHCP, DNS, NTP, SMTP, POP3, MIME, HTTP, FTP, Telnet

Security protocols: SSL3/TLS1, HTTPS, FTPS, RSA, AES-128/256, 3DES, RC-4, SHA-1, MD-5, WEP, WPA and WPA2 Hardware Description

CO2128 Size: 14.0 x 20.0 x 1.4 mm, 0.5mm pitch

CO2064 Size: 10.0 x 10.0 x 1.4 mm, 0.5mm pitch

CO2144 Size: 10.0 x 10.0 x 1.4 mm, 0.8mm pitch

Core CPU: 32-bit RISC ARM7TDMI, low-leakage, 0.13 micron, running at 48MHz Operating Voltage: +3.3V+/-10%

Operating Humidity: 90% maximum (non-condensing)

Operating Temperature Range: -40° to 85°C (-40° to 185°F)

Power Consumption with External VDD Core: 200mW (typical), Sleep Mode current: <2mA

Host Interface: USART, USB host and USB device

RoHS-compliant; lead-free

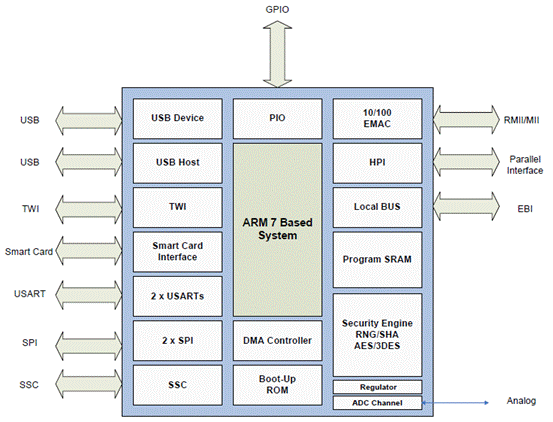

图1.CO2128/CO2144方框图

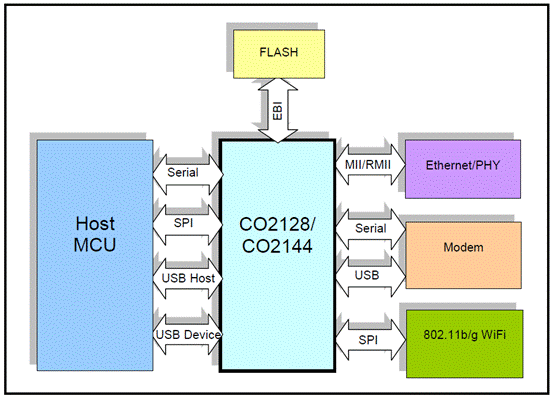

图2.CO2128/CO2144 典型主机和互联网环境

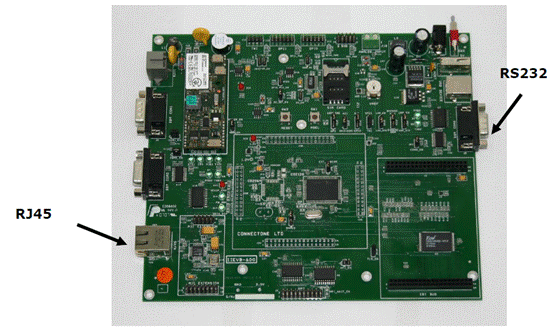

快速互联网评估板 II-EVB-630W

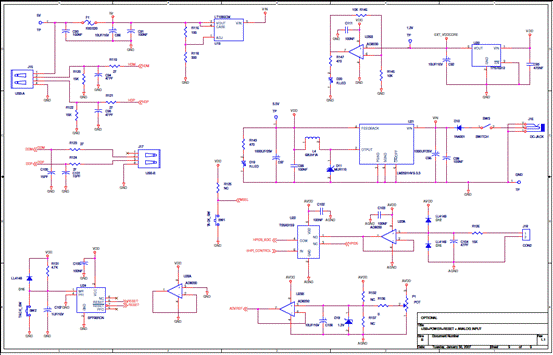

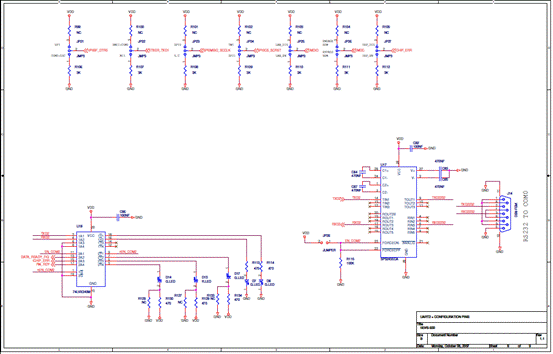

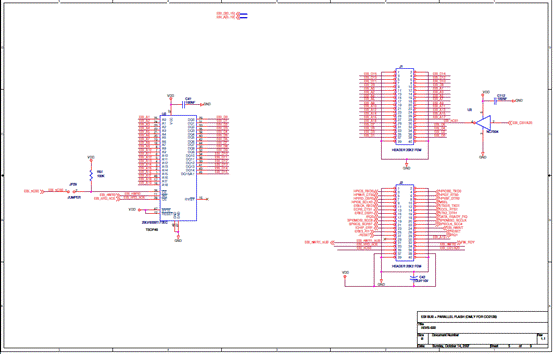

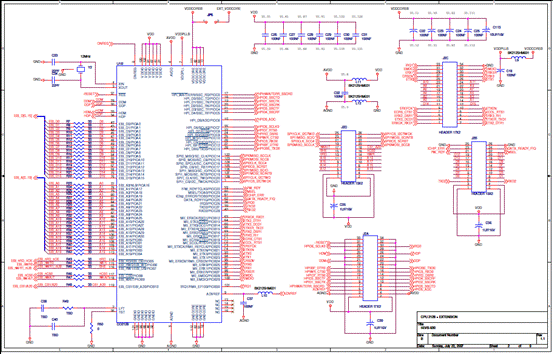

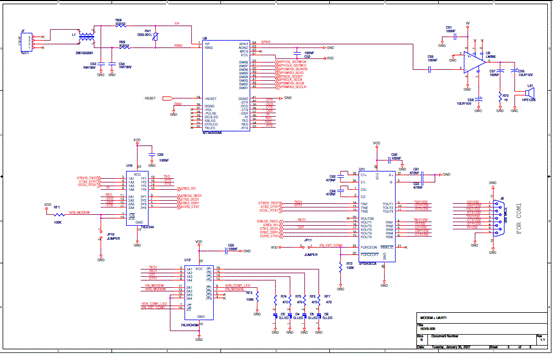

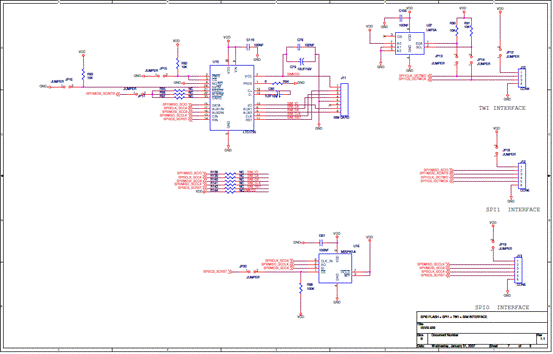

The CO2144 requires II-EVB-630W, which is a combined evaluation board for iChip CO2144/CO2128 for 10/100BaseT, 802.11b/g wireless LAN, cellular and dial-up modem applications. The PCB includes the 3.3V CO2128/48LI-3 (can be used for software development just like CO2144), USB host and device connectors, three RS-232 DB-9 connectors, RJ-45 connector, RJ-11 connector, Socket connector for dialup modem, a Davicom DM9161A 10/100BaseT Ethernet PHY, WiFi daughter board with antenna, 4-pin TWI connector, two 6-pin SPI connectors, one 10-pin SSC connector, LEDs, serial cables, and power supply. Please specify 110 or 220V. RoHS.
