NXP UBA2016AT带PFC和线性调光600V荧光灯驱动方案

2011年07月08日 13:07    1770309616
关键词: NXP , PFC , UBA2016AT , 荧光灯
NXP公司的UBA2016A/15/15A 是具有PFC,线性调光和升压功能的600V荧光灯驱动器.IC包含了荧光灯控制模块,半桥驱动器,内置了临界导电模式PFC控制器/驱动器和多种保护机制,电源电压高达600V,火线电压高达390V.本文介绍了UBA2016A/15/15A主要特性和优势,方框图, 基本的PFC应用框图以及多种TL或CFL应用电路, UBA2016AT HFTL演示板主要指标,框图,电路图和材料清单与PCB布局图.

UBA2016A/15/15A:600 V fluorescent lamp driver with PFC, linear dimming and boost function

The UBA2016A/15/15A are high voltage Integrated Circuits (IC) intended to drive fluorescent lamps with filaments such as Tube Lamps (TL) and Compact Fluorescent Lamps (CFL) in general lighting applications. The IC comprises a fluorescent lamp control module, half-bridge driver, built-in critical conduction mode Power Factor Correction (PFC) controller/driver and several protection mechanisms. The IC drives fluorescent lamp(s) using a half-bridge circuit made of two MOSFETs with a supply voltage of up to 600 V.

The UBA2016A/15/15A are designed to be supplied by a start-up bleeder resistor and a dV/dt supply from the half-bridge circuit, or any other auxiliary supply derived from the half-bridge or the PFC. The supply current of the IC is low. An internal clamp limits the supply voltage.

UBA2016A/15/15A主要特性和优势:

Power factor correction features:

Integrated 4-pin critical conduction mode PFC controller/driver

Open and short pin-short protection on PFC feedback pin

Overcurrent protection

Overvoltage protection

Half-bridge driver features:

Integrated level-shifter for the high-side driver of the half-bridge

Integrated bootstrap diode for the high-side driver supply of the half-bridge

Independent non-overlap time

Fluorescent lamp controller features:

Linear dimming (UBA2016A and UBA2015A only)

EOL (End-Of-Life) detection (both symmetrical and asymmetrical)

Adjustable preheat time

Adjustable preheat current

Adjustable fixed frequency preheat (UBA2015 and UBA2015A only)

Lamp ignition failure detection

Ignition detection of all lamps fat multiple lamps with separate resonant tanks

Second ignition attempt if first failed

Constant output power independent of mains voltage variations

Automatic restart after changing lamps

Adjustable lamp current boost at start-up (UBA2016A only)

Lamp current control

Enable input (UBA2015 and UBA2015A only)

Protection

Hard switching/capacitive mode protection

Half-bridge overcurrent (coil saturation) protection

Lamp overvoltage (lamp removal) protection

Temperature protection

UBA2016A/15/15A应用:

Intended for fluorescent lamp ballasts with either a dimmable (UBA2016A and UBA2015A) or a fixed (UBA2015) output and PFC for AC mains voltages of up to 390 V.

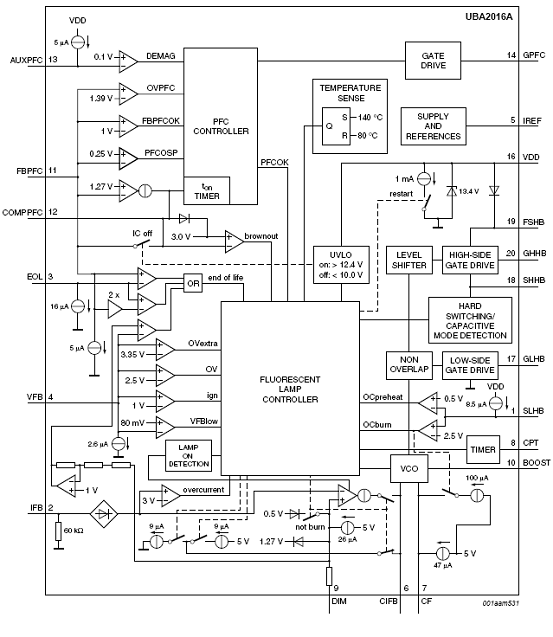

图1.UBA2016AA方框图

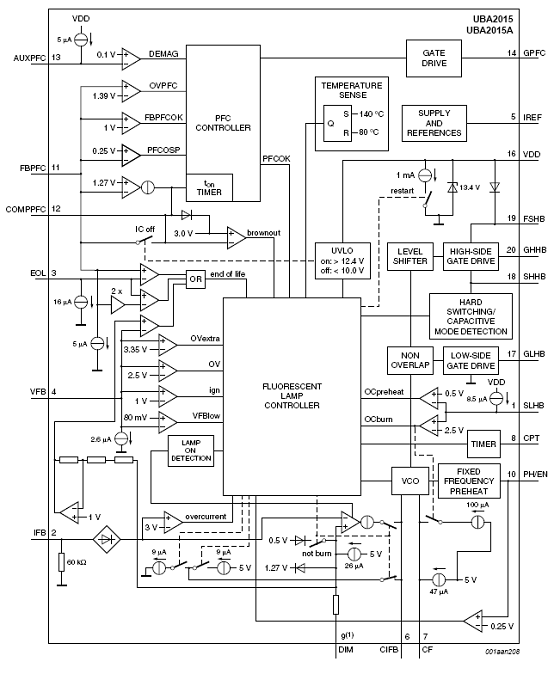

图2.UBA2015/15A方框图

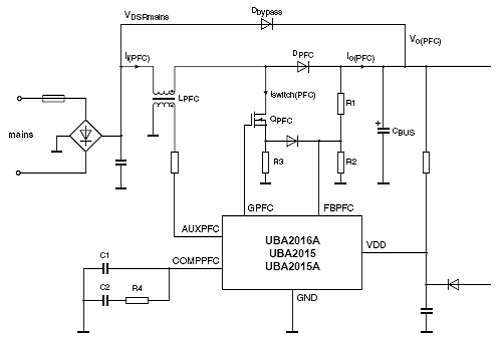

图3.UBA2016A/15/15A基本的PFC应用框图

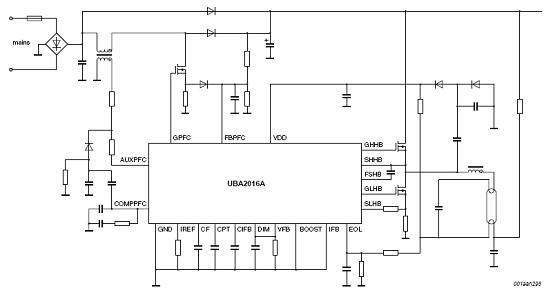

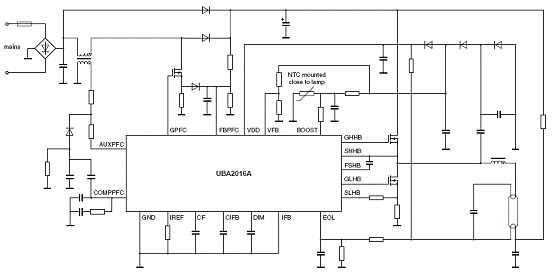

图4.UBA2016A用于TL或CFL的应用电路图(火线滤波器未显示)

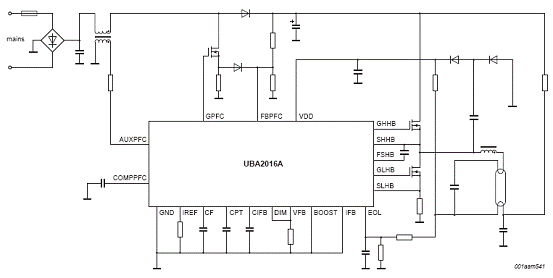

图5.UBA2016A有较好PFC性能的TL或CFL的应用电路图(火线滤波器未显示)

图6.UBA2016A带固定升压时间的TL或CFL的应用电路图(火线滤波器未显示)

图7.UBA2016A带灯温度升压起动的TL或CFL的应用电路图(火线滤波器未显示)

图8.UBA2016A调光TL应用电路图(火线滤波器未显示)

带升压和调光的UBA2016AT HFTL演示板

This User manual describes a demonstration (demo) board with boost and dimming functionality using the UBA2016AT controller. The demo board drives a 28 W 2D (square) fluorescent lamp.


图9.UBA2016AT HFTL演示板外形图

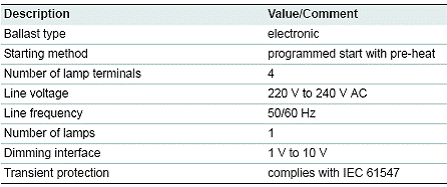

UBA2016AT HFTL演示板主要指标:

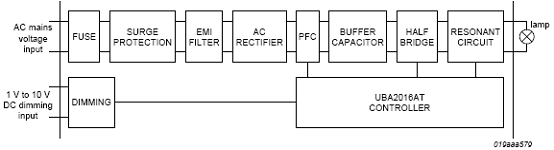

图10.UBA2016AT HFTL演示板框图

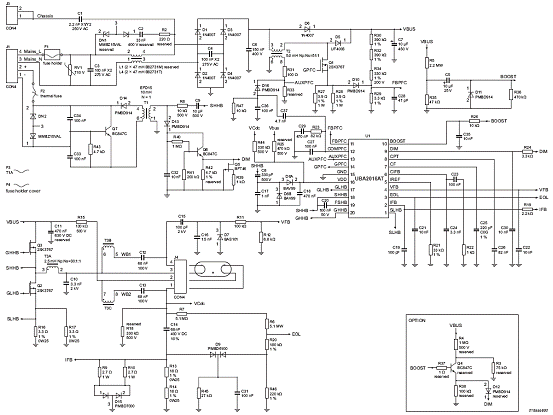

图11.UBA2016AT HFTL演示板电路图

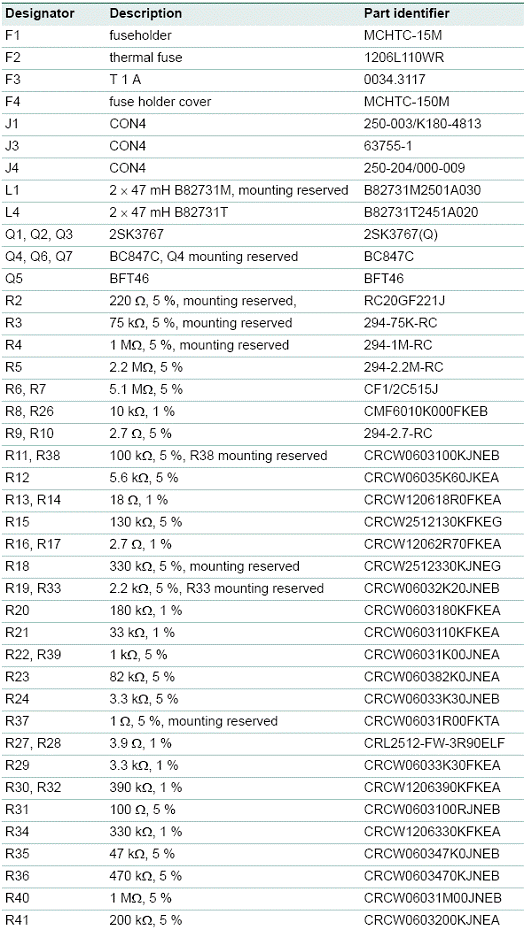

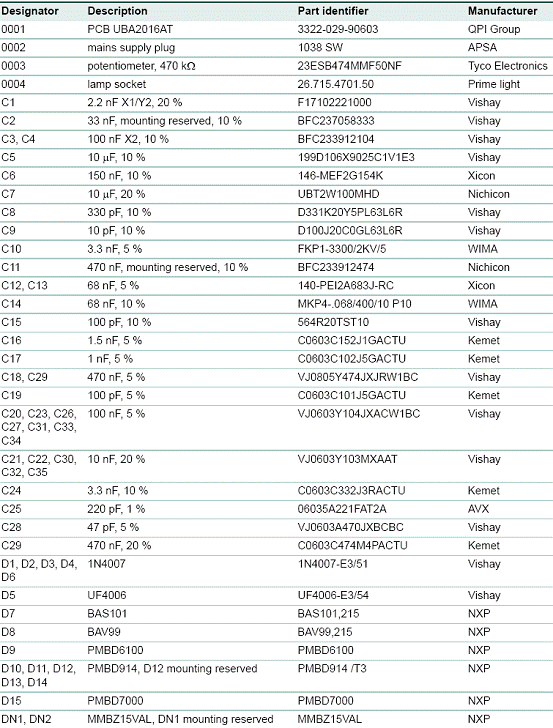

UBA2016AT HFTL演示板材料清单(BOM):





图11.UBA2016AT HFTL演示板PCB布局图
详情请见:
http://www.nxp.com/documents/data_sheet/UBA2016A_15_15A.pdf

http://www.nxp.com/documents/user_manual/UM10359.pdf
