MY-EC20 Linux-3.14.52 测试手册 [复制链接]

myzr123 (离线)
积分
714
帖子
51
发表于 2018-6-8 18:44:16 |显示全部楼层
关键词: EK200 , EK314 , EK336 , EK140P
测试操作步骤
检查系统是否已经识别到设备# lsusb ......Bus 001 Device 002: ID 2c7c:0125......
加载 EC20 模块驱动
  • MYIMX6EK200、MYIMX6EK314、MYIMX6EK336 加载方式
# insmod ~/my-demo/MY_EC20_GobiNet_L31452_IMX6A9.koGobiNet: Quectel_WCDMA&LTE_Linux&Android_GobiNet_Driver_V1.3.0GobiNet 1-1.5:1.4 eth2: register 'GobiNet' at usb-ci_hdrc.1-1.5, GobiNet Ethernet Device, 96:0d:4d:7d:fb:27creating qcqmi2usbcore: registered new interface driver GobiNet
  • MYIMX6EK14P 加载方式
# insmod ~/my-demo/MY_EC20_GobiNet_L31452_IMX6A7.koGobiNet: Quectel_WCDMA&LTE_Linux&Android_GobiNet_Driver_V1.3.0GobiNet 1-1:1.4 eth2: register 'GobiNet' at usb-ci_hdrc.1-1, GobiNet Ethernet Device, 2a:19:b8:ca:f8:86creating qcqmi2usbcore: registered new interface driver GobiNet
执行 EC20 的拨号程序(后台运行)# ~/my-demo/MY_EC20_QuectelCM_L31452.out &[01-23_13:10:26:407] WCDMA&LTE_QConnectManager_Linux&Android_V1.1.34[01-23_13:10:26:411] /home/root/my-demo/MY_EC20_QuectelCM_L31452.out profile[1] = (null)/(null)/(null)/0, pincode = (null)[01-23_13:10:26:413] Find /sys/bus/usb/devices/1-1 idVendor=2c7c idProduct=0125[01-23_13:10:26:415] Find /sys/bus/usb/devices/1-1:1.4/net/eth2[01-23_13:10:26:415] Find usbnet_adapter = eth2[01-23_13:10:26:416] Find /sys/bus/usb/devices/1-1:1.4/GobiQMI/qcqmi2[01-23_13:10:26:416] Find qmichannel = /dev/qcqmi2[01-23_13:10:26:461] Get clientWDS = 7[01-23_13:10:26:493] Get clientDMS = 8[01-23_13:10:26:525] Get clientNAS = 9[01-23_13:10:26:558] Get clientUIM = 10[01-23_13:10:26:590] Get clientWDA = 11[01-23_13:10:26:622] requestBaseBandVersion EC20CEFAR02A10M4G[01-23_13:10:26:718] requestGetSIMStatus SIMStatus: SIM_READY[01-23_13:10:26:750] requestGetProfile[1] cmiot///0[01-23_13:10:26:782] requestRegistrationState2 MCC: 460, MNC: 0, PS: Attached, DataCap: LTE[01-23_13:10:26:814] requestQueryDataCall IPv4ConnectionStatus: DISCONNECTED[01-23_13:10:26:878] requestRegistrationState2 MCC: 460, MNC: 0, PS: Attached, DataCap: LTE[01-23_13:10:26:942] requestSetupDataCall WdsConnectionIPv4Handle: 0x87240360[01-23_13:10:27:037] requestQueryDataCall IPv4ConnectionStatus: CONNECTED[01-23_13:10:27:069] ifconfig eth2 up[01-23_13:10:27:113] busybox udhcpc -f -n -q -t 5 -i eth2[01-23_13:10:27:130] udhcpc (v1.23.1) started[01-23_13:10:27:245] Sending discover...[01-23_13:10:27:324] Sending select for 10.16.85.16...[01-23_13:10:27:395] Lease of 10.16.85.16 obtained, lease time 7200[01-23_13:10:27:495] /etc/udhcpc.d/50default: Adding DNS 211.136.20.203[01-23_13:10:27:496] /etc/udhcpc.d/50default: Adding DNS 211.136.17.107

其它操作
关闭 EC20 的后台拨号程序# pkill MY_EC20_Quectel*[01-23_13:15:17:527] requestDeactivateDefaultPDP err = 0[01-23_13:15:17:528] ifconfig eth2 down[01-23_13:15:17:791] GobiNetThread exit[01-23_13:15:17:794] main exit
从系统卸载 EC20 模块驱动# rmmod GobiNet_EC20usbcore: deregistering interface driver GobiNetGobiNet 1-1:1.4 eth2: unregister 'GobiNet' usb-ci_hdrc.1-1, GobiNet Ethernet Device

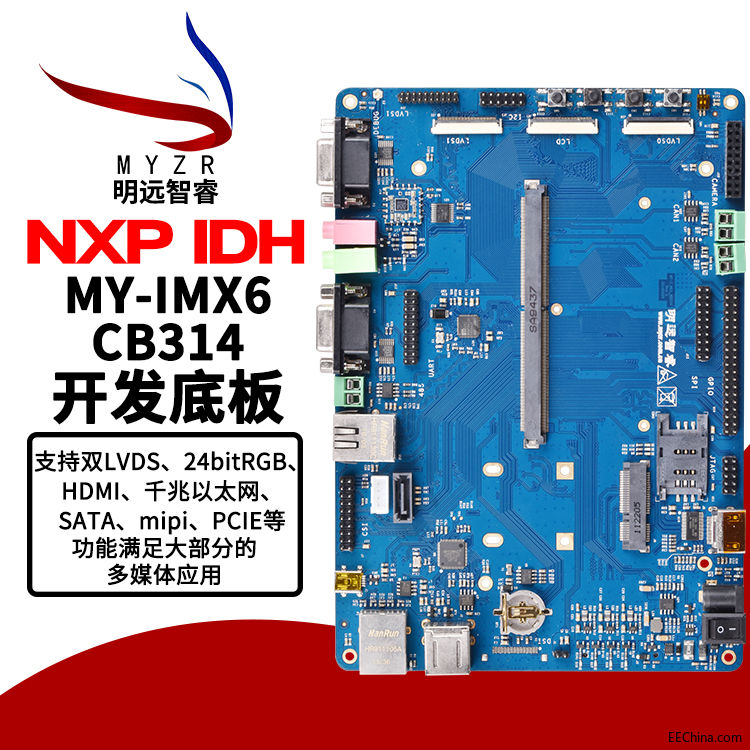

MB314 电路板主图.jpg
