Used Site Master S331D Cable and Antenna Tester  S331D

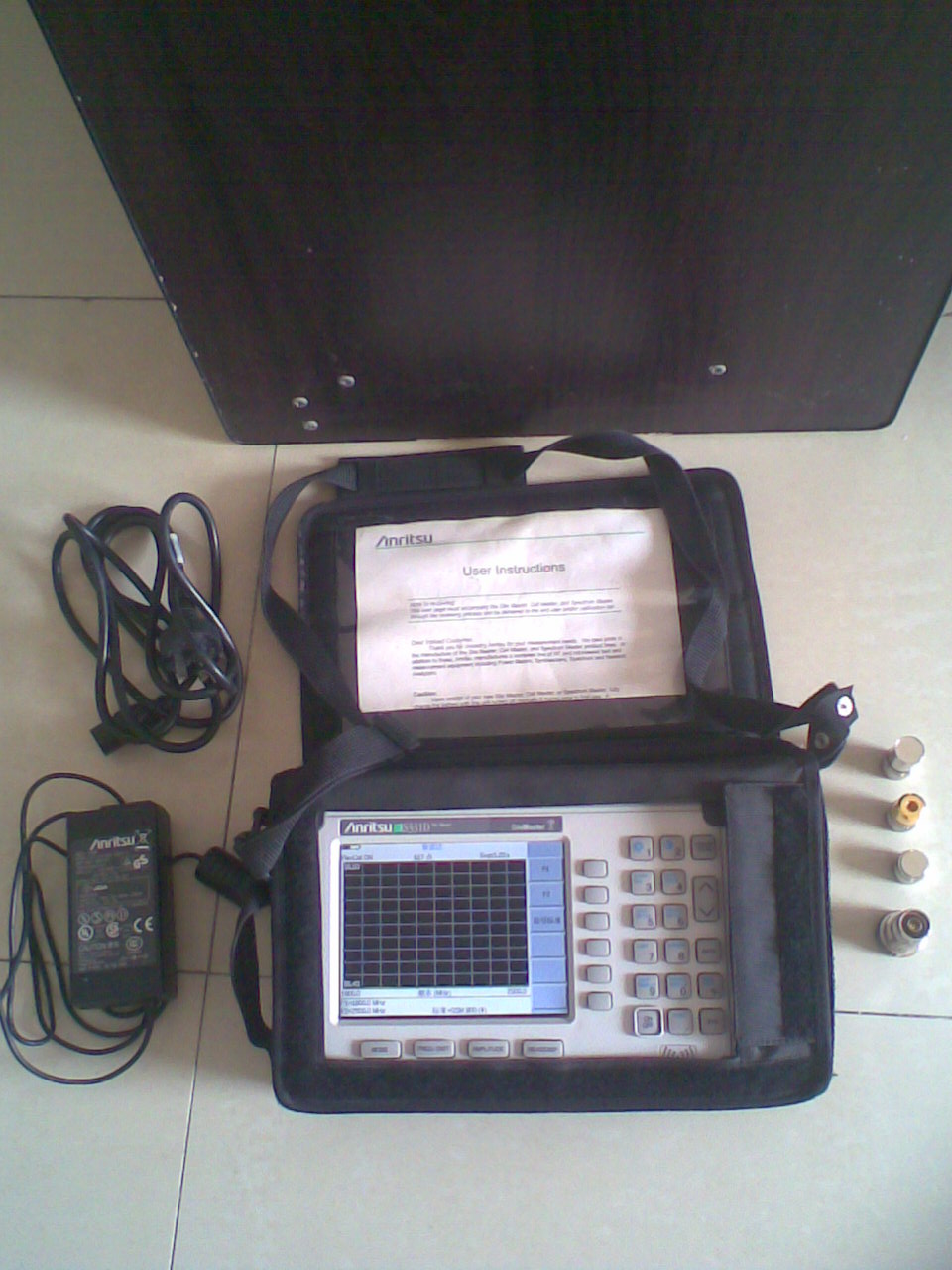

Used Antenna Tester S331D one set of 9.5 into a new, special sale!
(Accessories complete)

(Shenzhen) Contact: Mr. Yang Mobile: 13570809426
               Miss Tang 13713901971
TEL :86-755-18924661127 27228166 FAX :86-755-27228940
Http: / / www.szjn17.com E-mail/MSN: tosstar17@126.com
QQ: 305636259     747419145

Brand: Japan Anritsu ANRITSU
     Transmission line and antenna analyzer to measure the return loss or VSWR, cable loss and distance fault location. This allows us to quickly assess the transmission line and antenna system status, and speed up new base stations required for installation and commissioning time.
Testing / Performance
25MHz ~ 4000MHz
Built-in signal standard world
Built-in Intelligent Calibration
FlexCal
Superior anti-jamming capability
130,259 and 517 data points <500ms / each scan
Built-in average cable loss calculation
Power meter (optional)
Accurate power measurement can be carried out, reducing coverage holes and interference.
Measurement / Performance: No additional power sensor.
T1/E1 Analyzer (optional)
Site Master can complete all the T1/E1 measurements, allows us to easily determine the source of failure in the wireless side or in the wired side.
Measurement / Performance
Measurement of full-featured T1/E1
Histogram display
Specifications
The following indicators apply to the following conditions, apparatus, first preheat 5 minutes, then at ambient temperature calibration, the typical values for reference only.
Transmission line and antenna analyzers
Frequency Range: 25MHz ~ 4.0GHz
Frequency Accuracy: ≤ ± 75ppm @ +25 ℃
Frequency Resolution: 100KHz
Output Power: <0dBm (-10dBm ℃ nominal value)
Anti-jamming capability:
Channel: ± 17dBm
Frequency:-5dBm
Measurement speed: ≤ 3.5msec / point (CW ON)
Data point: 130,259,517
Return Loss: Range: 0.00 ~ 60.00dB
Resolution: 0.01
VSWR: Range: 1.00 ~ 65.00dB
Resolution: 0.01dB
Transmission line loss range: 0.00 ~ 30.00dB
Resolution: 0.01dB
Accuracy:> 42dB calibration
DTF (fault location)
Vertical range:
Return Loss: 0.00 ~ 60.00dB
VSWR: 1.00 ~ 65.00dB
Level range:
0 - (data points -1) X-resolution to the maximum 1197m (3929ft); data points = 130,259,517
Horizontal resolution: (rectangular window):
Resolution (meter) = (1.5 × 10 ^ 8) × (Vp) / DF
Vp is the feeder of the relative spread.
DF is the end frequency - start frequency (Hz)
Power meter (optional)
Frequency Range: 10MHz ~ 3.0GHz
Detection range:-80dBm ~ +20 dBm
Display range:-80dBm ~ +80 dBm
Offset range: 0 ~ +60 dB
Accuracy: ± 1.5dB maximum
(± 1dB typical),> 2GHz ~ 3GHz ± 1dB maximum
(± 0.5dB typical), ≥ 10MHz ~ 2GHz
± 2Db, 3MHz ~ <10MHz
VSWR: 1.5:1 typical
Maximum Power: 20dBm (0.1W) without external attenuator
T1 (1.5M) Analyzer
Line Coding: AMI, B8ZS
Frame format: D4 (Superframe)
ESF (Extended Superframe)
Connection configuration:
Load (100 Ohms)
Bridge (∈ 1000)
Monitor (connector 20Db attenuator to DSX)
Receiver sensitivity: 0 ~-36dBdsx
Send level: 0Db,-7.5dB and-15dB
Clock Source: External
Internal: 1.544MHz ± 30ppm
Pulse Shape: Conforms to ANSI T1.403 standards
Graphics generation and detection: PRBS :2-9 ,2-11 ,2-15 ,2-20 ,2-23 inversion and non inversion, QRSS ,1-in-8, (1-in-7), 2 -in-8 ,3-in-24, quasi-1 all 0 yards, T1-Daly, custom (≤ 32bits)
Line status report: a carrier, frame ID and synchronization, and synchronized graphics ID
Alarm Detection: AIS (Blue Alarm)
RAI (yellow alarm)
Error detection: frame bit, bit, bit error rate, BPV, CRC, Error Sec (ES)
Error insertion: Bit, BPV, Framing Bits, RAI, AIS
Loop-back mode: self-loop, CSU, NIU, User defined, in-band or data link
Level measurement: Vp-p (± 5%)
Data log: consecutive, maximum 48 hours
E1 (2M) analyzer (optional)
Line Coding: AMI, HDB3
Frame format: PCM30, PCM30CRC, PCM31, PCM31CRC
Connection configuration:
Load (75,120 Ohms)
Bridge (≥ 1000)
Monitor (connector 20Db attenuator to DSX)
Receiver sensitivity: 0 ~-43dBdsx
Clock Source: External
Internal: 2.048MHz ± 30ppm
Pulse Shape: Conforms to ITU G.703 standard
Graphics generation and detection: PRBS :2-9 ,2-11 ,2-15 ,2-20 ,2-23 inversion and non inversion, QRSS ,1-in-8, (1-in-7), 2 -in-8 ,3-in-24, all 1, all 0 yards, T1-Daly, custom
Line status report: Carrier present, Frame ID and Sync; pulse pattern ID and synchronization
Alarm Detection: AIS, RAI, MMF
Error detection: frame bit, bit, bit error rate, BPV, CRC, Error Sec (ES)
Error insertion: Bit, BPV, Framing Bits, RAI, AIS
Loop-back mode: from Central
Level measurement: Vp-p (± 5%)
Data log: 48 hours continuous
General indicators
Language: Chinese, English, French, German, Japanese, Spanish
Internal curve Storage: Up to 200 curves
Display: VGA, single-color LCD; color LCD (option) Adjustable background light
Input and output ports:
RF output: N-type, negative, 50Ohm
Maximum input burning power:
RF output: N-type, negative, 50Ohm
Maximum input burning power:
External trigger input: BNC, negative (5V TTL)
T1/E1 (receive and transmit): Bantam jack
Serial Interface: RS-232 9-pin D-sub, 3-wire serial
Temperature:
Operating temperature: -10 ℃ ~ +55 ℃
Humidity: 85% or less
Non-operating temperature: -51 ℃ ~ +71 ℃
Power supply
External DC Input: +12.5 ~ +15 V DC 1350 mA maximum
Internal: NiMH battery: 10.8V, 1800mAH
Shape: Dimensions (W × H × D): 25.4cm × 17.8cm × 6.1cm
Weight: <2.28kg including battery
