全新美国BIRD SA-6000EX电缆及天线测试仪 特价出售

tosstar1748

全新美国BIRD SA-6000EX电缆及天线测试仪 特价出售
（深圳）聯繫人：楊先生Mobile:13570809426
               唐小姐     13713901971
TEL：0755-18924661127  27228166  FAX：0755-27228940
Http://www.szjn17.com   E-mail/MSN:tosstar17@126.com
QQ: 305636259   747419145

****************
******SA-6000EX   25M---6000MHZ   5套   全新，原装！特价出售！
****************
[SA-6000EX(SA-2500EX)通信基站天馈线测试系统]

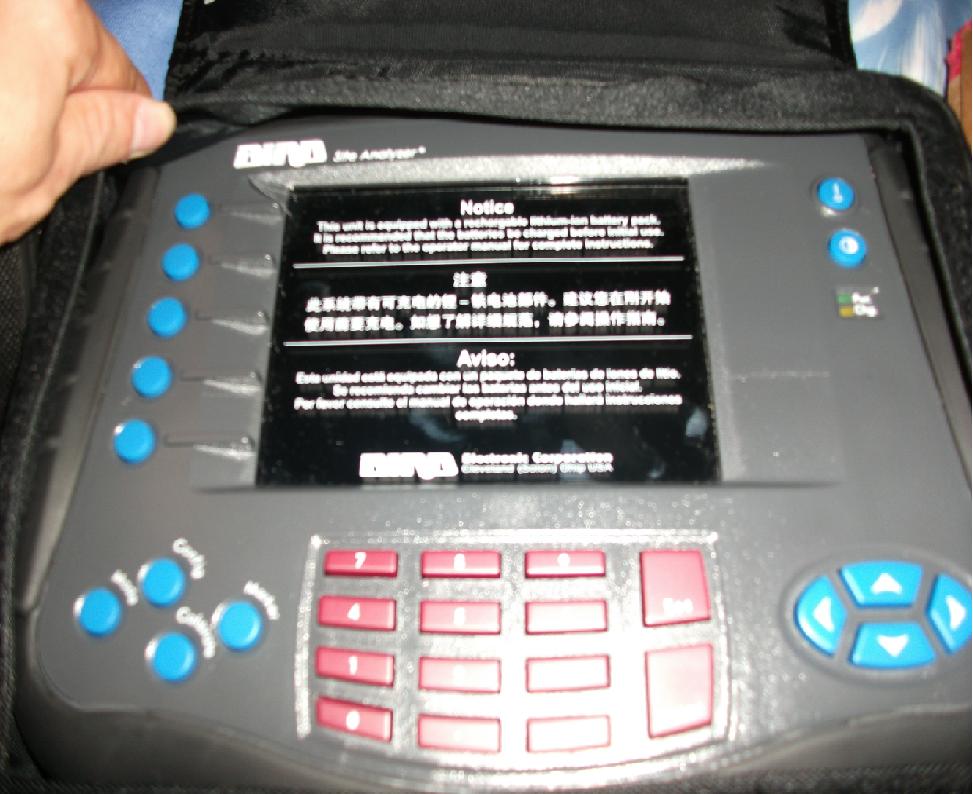

产品名称: SA-6000EX(SA-2500EX)通信基站天馈线测试系统
产品型号: sa_6000ex
产品品牌: 美国鸟牌(Bird)
简单介绍
SA-6000EX(SA-2500EX)通信基站天馈线测试系统是美国鸟牌(BIRD)品牌通信基站天馈线测试系统。

SA-6000EX(SA-2500EX)通信基站天馈线测试系统的详细介绍
SA-6000EX(SA-2500EX)主要用于各种通信基站天馈线系统的测试。包括集群、GSM、PCS/DCS、CDMA、GPRS及寻呼系统等。在天馈线系统安装、调测及日常维护时，对其进行驻波比（VSWR），回波损耗、电缆损耗、功率及故障定位等测试。
SA-6000EX测试频率: 25~6000MHz

· 对初学者、偶尔使用及常用者均易操作
· 测量精确度及再现性高
· 在线现场测试抑制+13dBm(±10kHz)/+22dBm(±1MHz)的干扰信号
· 高清晰彩显
· 快切换速率
· 同屏显示测量比较图
· 无限制查询测试报告
· 兼容性强
　　快速识别细小的问题，防患于未然：
　　 具有的高定向性及良好的源匹配特性，保证了匹配和故障定位测试的准确性和重复性
· 60dB的高动态范围保证了细小故障的定位
· 高分辨率的标记读出驻波比数据，与昂贵的 实验室设备具有相同的精度
· 利用该仪器对现存的测量数据进行转换
· 可进行电缆插入损耗测量
· 可搭配Bird数字功率传感器测量功率

优越的抗干扰能力，无限制条件的测试：
    较高的干扰信号电平会影响其它同类测试仪的使用。该仪器具有较高的抗干扰能力，
它能抑制高达+13dBm(±10kHz)/+22dBm(±1MHz)的干扰信号，因此可在无须关闭通信设
备的情况下进行现场天馈线分析
· 可显示正反向功率，电压驻波比，回波损耗
· 兼容MODEL 5010B功率传感器

********************************************************************
本公司专业经营：
1.台湾拓斯达试验设备:   恒温恒湿试验箱、盐雾试验机、摇摆试验机、振动试验台、按键寿命试验机、插拔力试验机、耐磨试验机、跌落试验机、拉力试验机、标准光源箱等
2.基础电子测试仪器: 安规耐压测试仪、接地电阻测试仪、精密低电阻测试仪、LCR数字电桥、绝缘电阻测试仪、变频电源、直流电源、功率计、示波器、频谱仪、显微镜等
3.台湾亚锐ARRAY总代理: 可编程直流电子负载3710A  3711A系列、可编程直流电源台式数字万用表、函数信号发生器、通用计频器（频率计)等
4.台湾益和线材测试仪: 线材测试仪2100、CT-9980 CT-8600L/CT-3300A  线材综合测试仪CT-8650E/ CT-8681/8685/8687FA/CT-350/360 CT-1000H+等
5.基站类测试仪: 天馈线测试仪、射频功率计、手持频谱仪等（代理日本安立、美国BIRD）
6.代理品牌: 安捷伦Agilent、泰克、健伍、菊水、福禄克、固纬、同惠、HG等品牌仪器
7：进口二手仪器销售/回收/维修:  示波器、频谱仪、万用表、手机综合测试仪、射频功率计、网络分析仪、LCR、天馈线测试仪、驻波比测试仪等
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
BIRD SA-6000EX new U.S. cable and antenna tester special offer
(Shenzhen) Contact: Mr. Yang Mobile: 13570809426
               Miss Tang 13713901971
TEL :0755-18924661127 27228166 FAX :0755-27228940
Http: / / www.szjn17.com E-mail/MSN: tosstar17@126.com
QQ: 305636259 747419145

****************
****** SA-6000EX 25M --- 6000MHZ 5 sets of new, original! Special offer!
****************
[SA-6000EX (SA-2500EX) communication base station Antenna Testing System]
Product Name: SA-6000EX (SA-2500EX) communication base station Antenna Test System
Product Type: sa_6000ex
Brand: American Bird cards (Bird)
Brief
SA-6000EX (SA-2500EX) communication base station Antenna Test System is the United States Bird cards (BIRD) brand communication base station Antenna Test System.

SA-6000EX (SA-2500EX) communication base station Antenna Test System Details
SA-6000EX (SA-2500EX) is mainly used for various communications base station Antenna system testing. Including clusters, GSM, PCS / DCS, CDMA, GPRS and paging systems. In the days of feeder system installation, testing and routine maintenance tune their conduct standing wave ratio (VSWR), return loss, cable loss, power and fault location and other tests.
SA-6000EX Test frequency: 25 ~ 6000MHz

* For beginners, occasional use and easy to operate commonly caught
* Measurement of high accuracy and reproducibility
* On-line field test inhibition of +13 dBm (± 10kHz) / +22 dBm (± 1MHz) of the interference signal
* High-definition color display
* Fast switching speed
* Measured with the screen display comparison chart
* Unlimited check test report
* Compatibility
Rapid identification of small problems, take preventive measures:
With high directivity and good matching characteristics of the source to ensure matching and fault location testing the accuracy and repeatability
· 60dB dynamic range ensures high positioning of small fault
* High-resolution data tags read SWR, and expensive laboratory equipment with the same precision
? Use the instrument's measurement data on the conversion of existing
* Cable insertion loss measurements can be
Can be measured with a Bird Digital Power Sensor Power

Superior anti-jamming capability, unlimited test conditions:
    High level interference signals will affect other similar testers use. The instrument has a high anti-interference ability,
It can suppress up to +13 dBm (± 10kHz) / +22 dBm (± 1MHz) of the interference signal, it can not close the communication set
Prepared in the conduct of on-site day feeder analysis
* Shows the forward and reverse power, VSWR, return loss
* Compatible MODEL 5010B Power Sensor
SA-2500EX技术参数：
Altitude: Up to 15,000 feet (4572 m)
Data Transfer: 9 pin-RS-232 (DB9), compatible with serial port
Dimensions: 10.5" x 8.4" x 3.3" (265 mm x 212 mm x 83 mm)
External AC: 90 to 264 Vac @ 45-66 Hz; AC/DC adapter required
External DC: 9-16 VDC fused, <3 A
Frequency Range: 780-2500 MHz
Frequency Resolution: 50 kHz
Humidity: 95% ± 5% max. (non-condensing)
Immunity to Interfering Signals: Rejects on-frequency signals up to +13 dBm
Impedance: 50 Ohms
Internal Time: Rechargable Lithium-Ion batteries, 3 hour minimum operating time. Auto shut-off conserves battery life.
Maximum Input Signal: +22 dBm
Operating Temp.: -10°C to 50°C (14°F to 122°F)
Power Measurement: Yes
Return Loss: 0 to -60 dB
Setup Storage Capacity: 15-Set-Ups/(500) 238 ponit traces
Speed: 1 multi-frequency scan (238 points)/2 seconds; 1 multi-frequency scan (475 points)/3.5 seconds; 1 multi-frequency scan (949 points)/6 seconds
Storage Temperature: -40°C to 80°C (-40°F to 176°F)
Test Port: N-type female connector
Trace Resolution: 238 (default), 475, or 949 per trace
Upgradeable: Yes, SA-6000EX
Weight: 5.5 lbs. (2.5 kg)

SA-6000EX技术参数
Altitude: Up to 15,000 feet (4572 m)
Data Transfer: 9 pin-RS-232 (DB9), compatible with serial port
Dimensions: 10.5" x 8.4" x 3.3" (265 mm x 212 mm x 83 mm)
External AC: 90 to 264 Vac @ 45-66 Hz; AC/DC adapter required
External DC: 9-16 VDC fused, <3 A
Frequency Range: 25-6000 MHz
Frequency Resolution: 25 kHz; 25-800 Mhz, 50 kHz; 800-2500 MHz, 100 kHz; 2500-6000 MHz
Humidity: 95% ± 5% max. (non-condensing)
Immunity to Interfering Signals: Rejects on-frequency signals up to +13 dBm
Impedance: 50 Ohms
Internal Time: Rechargable Lithium-Ion batteries, 3 hour minimum operating time. Auto shut-off conserves battery life.
Maximum Input Signal: +22 dBm
Operating Temp.: -10°C to 50°C (14°F to 122°F)
Power Measurement: Yes
Return Loss: 0 to -60 dB
Setup Storage Capacity: 15 Set-Ups/(500) 238 point traces
Speed: 1 multi-frequency scan (238 points)/2 seconds; 1 multi-frequency scan (475 points)/3.5 seconds; 1 multi-frequency scan (949 points)/6 seconds
Storage Temperature: -40°C to 80°C (-40°F to 176°F)
Test Port: N-type female connector
Trace Resolution: 238 (default), 475, or 949 per trace
Upgradeable: No
Weight: 5.5 lbs. (2.5 kg)
